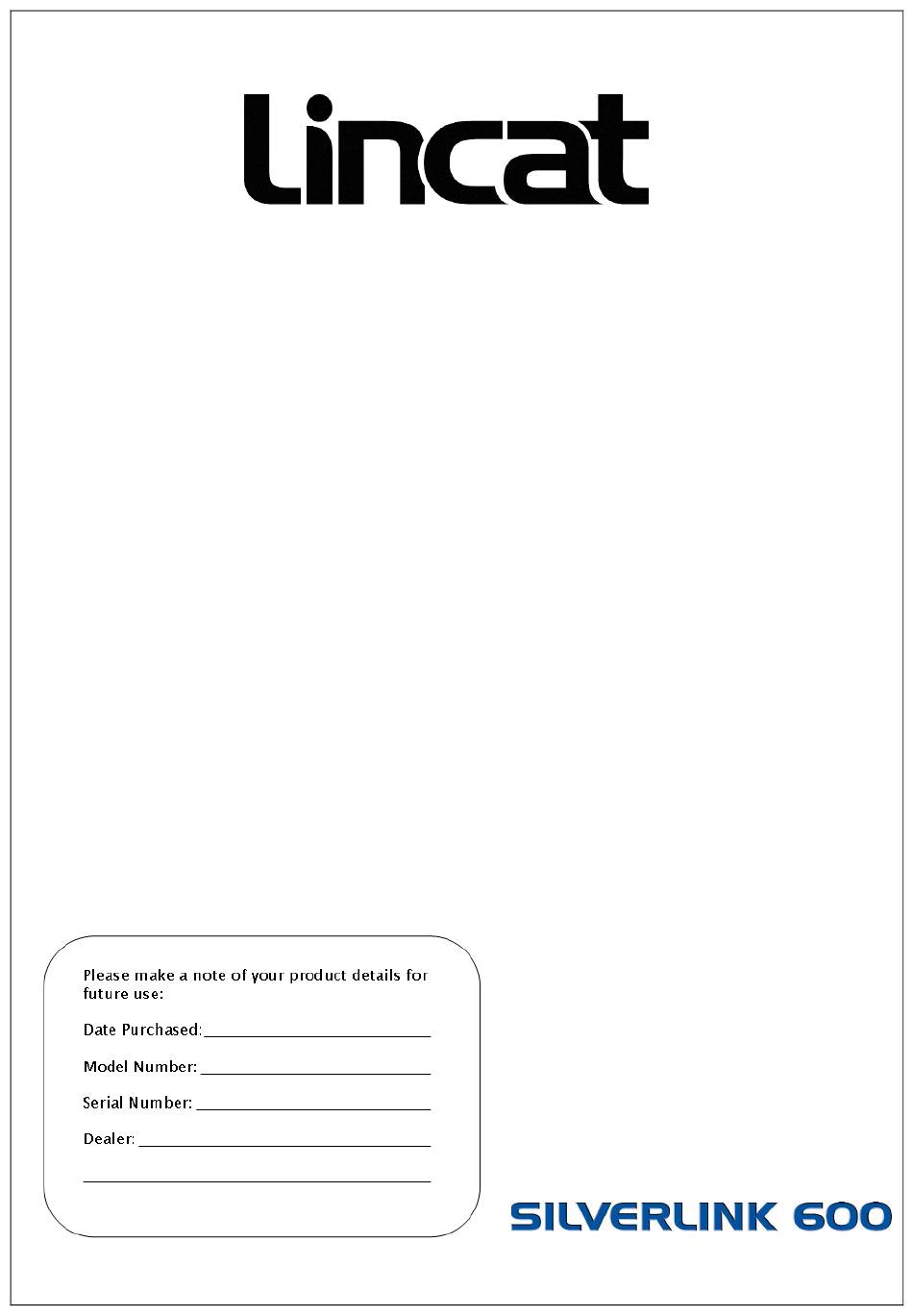

- Page 1 User, Installation and Servicing Instructions Silverlink 600 Gas Fryers DF4-A007 IS676 ECN4560...
-
Page 2: Table Of Contents
WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. NOTE: This symbol is used to provide additional information, hints and tips. -
Page 3: Warnings And Precautions
WARNINGS AND PRECAUTIONS This appliance must be installed, commissioned and serviced by a qualified person in accordance with national and local regulations in force in the country of installation. Strip plastic coating and clean the appliance before use. During operation parts may become hot - avoid accidental contact. Parts protected by the manufacturer shall not be adjusted by the user. -
Page 4: Check List Of Enclosures
CHECK LIST OF ENCLOSURES Please ensure the following items are included with this piece of equipment: Model Tick Batter plate Baskets x 2 Drain pipe & nut Feet x 4 Lid knob User Instructions INSTALLATION AND COMMISSIONING This appliance is supplied with feet that should be fitted when it is to be mounted on either a counter top or tabletop. - Page 5 Commissioning must include a functional check of all controls and a calibration check on the thermostat. Oil temperature should be checked once the main burners have cut out for a second time. Upon handover, ensure all operators know how to safely light, operate and shutdown the appliance and are aware of the isolating cock.
-
Page 6: Operating Instructions
Fig 1 FASCIA PANEL REMOVAL Removing the facia panel (Fig 1, A) Remove the control knob (Fig 1, C) and undo control thermostat screws (Fig1, E). Remove drain valve nut (Fig 1, D). Point the drain valve lever directly forward (Fig 1, B). Remove screws from beneath the control panel (Fig 1, F) to allow control panel to be lifted forward. - Page 7 After setting refit regulator cap and tighten test point screws (Fig 2, A, B, C) NOTE: appliances operating on Butane gas there may be some ‘yellowing’ of the flame at the burner – this is normal owning to the composition of the gas. OPERATION INSTRUCTIONS This appliance is for professional use and must be operated by qualified or trained personnel only.
- Page 8 Fill the tanks with water and a little mild detergent to the lower indicated mark on the batter plate. Do not use flammable solvents and cleaning aids. Following the Lighting Instructions, turn the appliance on and allow the water to boil for a short time.
- Page 9 When the pilot is lit, release the pilot control knob and continue to turn fully anti- clockwise to the ON position (Fig 4, C). If the pilot flame fails to remain lit, return the pilot control knob to the off position and repeat the process allowing a short period of time for the control to reset.
-
Page 10: Cleaning
Excess oil remaining in the base of the tank can be mopped up using kitchen paper. CLEANING Do not use a water jet or steam cleaner, and do not immerse this appliance. Drain as per the above instructions. Clean all panels with warm water and mild detergent do not use abrasive or flammable materials. - Page 11 Note: Access to most of the components referred to in this section can only be gained by separating the base/sides of the appliance from the tank assembly. See Base and hob top separation (Fig, 5) BASE AND HOBTOP SEPARATION Note: The fryer must be emptied of oil and disconnected from the gas supply before proceeding.
- Page 12 Carry out any work necessary and reassemble in reverse order. IS676 ECN4560...
-
Page 13: Component Replacement
COMPONENT REPLACEMENT High limit thermostat Remove the facia panel see (Fig 1). Undo tank gland. Undo limit thermostat nut and withdraw phial from bracket. Withdraw phial from tank. Thermostat can now be removed Replace in reverse order, ensuring correct phial location within the tank bracket. Control thermostat ... -
Page 14: Spare Parts List
After separating, the pilot assembly steps 1 - 4. Remove the igniter cable from the electrode. Undo retaining nut and remove electrode from pilot assembly. SPARE PARTS LIST The following components are listed with Lincat reference part number. Description Part number Piezo Igniter... -
Page 15: Fault Finding
FAULT FINDING Piezo Ignitor not sparking. Is there a short in the High Tension Lead. Has Electrode Insulator Fractured. Yes. Yes. Replace Lead. If no spark is generated at all, Replace Electrode. replace Piezo Ignitor. Pilot burner will not light or stay lit. Are the thermocouple/Interrupter connections secure. - Page 16 High limit thermostat operates. Is the oil temperature over 220 Yes. Does the control stat operate on temp. rise when Replace set point is low (100 overtemperature stat. Yes. Replace control Are the connections stat. correct on the gas control. Yes.
-
Page 17: Service Information
Gas Appliance Regulations 2016/426. GUARANTEE This unit carries a comprehensive UK mainland warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights. Contact Lincat for terms and conditions The guarantee does not cover: Accidental damage, misuse or use not in accordance with the manufacturer’s instructions ...
