Installation, Operating and Servicing
Instructions

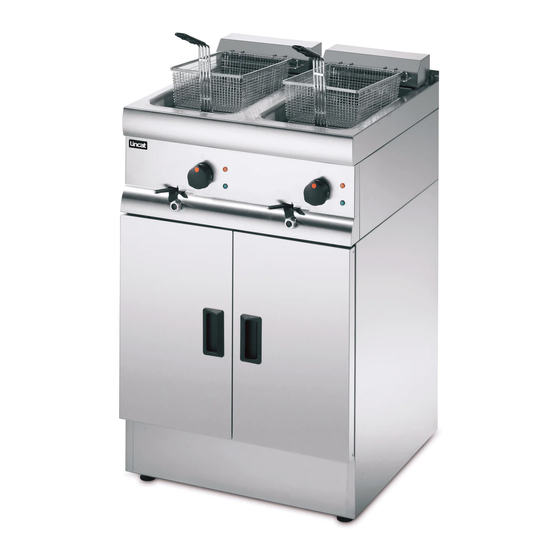

Silverlink 600 Electric Fryers
DF33, DF36, DF39, DF46, DF49, DF66,
DF66/ST, DF612, DF618, J6, J12, J9, J18
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________
IS 400 ECN 4176
Page 1 of 11
Advertisement
Table of Contents
Related Manuals for Lincat Silverlink 600
Summary of Contents for Lincat Silverlink 600
- Page 1 Installation, Operating and Servicing Instructions Silverlink 600 Electric Fryers DF33, DF36, DF39, DF46, DF49, DF66, DF66/ST, DF612, DF618, J6, J12, J9, J18 Please make a note of your product details for future use: Date Purchased:_________________________ Model Number:__________________________ Serial Number:__________________________ Dealer:_________________________________...
-
Page 2: Table Of Contents
WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. NOTE: This symbol is used to provide additional information, hints and tips. -
Page 3: Warnings And Precautions
WARNINGS AND PRECAUTIONS This appliance must be installed, commissioned and serviced by a qualified person in accordance with national and local regulations in force in the country of installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person. -
Page 4: Checklist Of Enclosures
CHECK LIST OF ENCLOSURES Warranty card Instructions manual Baskets Lid knob Drain tube Element lifting hook Feet (J models) Stability Bracket (J6, J9) INSTALLATION AND COMMISSIONING This appliance must be earthed. An equipotential bonding terminal is provided to allow cross bonding with other equipment. - Page 5 Power Ratings Model Power (kW) Supply 1N~+E(A) 230V Supply 3N~+E (A) 400V DF33 13.0 DF36 26.0 L1 13 L2 13 L3 N/A DF39 39.0 L1 13 L2 13 L3 13 DF46 26.0 L1 13 l2 13 l3 N/A DF49 39.0 L1 13 L2 13 L3 13 DF66 2 x 13.0...
- Page 6 Fig 1 IS 400 ECN 4176 Page 6 of 11...
-
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Only qualified or trained personnel should use this appliance. Always drain food before frying. Never allow water into the oil. Before first use, clean the tank. Remove the batter plate from the tank by swivelling up from the front until the plate can be disengaged at the back and lifted clear (Fig 2). - Page 8 Lift the elements up and back Fig 3 (A) until the stay engages behind the bracket (B). Fig 3 Clean the tank with warm water and mild detergent. Dry thoroughly. Re-position the element by gently pushing it back, lift and disengaging the stay then lower the element back into place.
-
Page 9: Cleaning
The amber neon will extinguish when the set temperature is reached, and then operates with the cycling of the element. Always maintain the oil level up to the indicator line on the batter plate. Do not overfill. This appliance is fitted with a safety thermostat to cut off the power in the event of a fault. -
Page 10: Spare Parts List
SPARE PARTS LIST Part Number Description Used on BA91 Basket All excluding DF66/ST BA113 Basket DF66/ST CO215 Contactor All models over 3kW CO45 Blanking off nut DS24 Drain tap EL257 Element DF39, DF618, J9, J18 EL264 Element DF33, DF66 EL265 Element DF36, DF612, J6, J12 EL266... -
Page 11: Service Information And Guarantee
All available on serial plate Type number Serial number Lincat reserve the right to carry out any work under warranty, given reasonable access to the appliance, during normal working hours, Monday to Friday, 08:30 to 17:00. GUARANTEE This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights.
