User, Installation and Servicing Instructions
Silverlink 600 Gas Fryers
DF4-A007
IS676 ECN4560

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Silverlink 600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lincat Silverlink 600

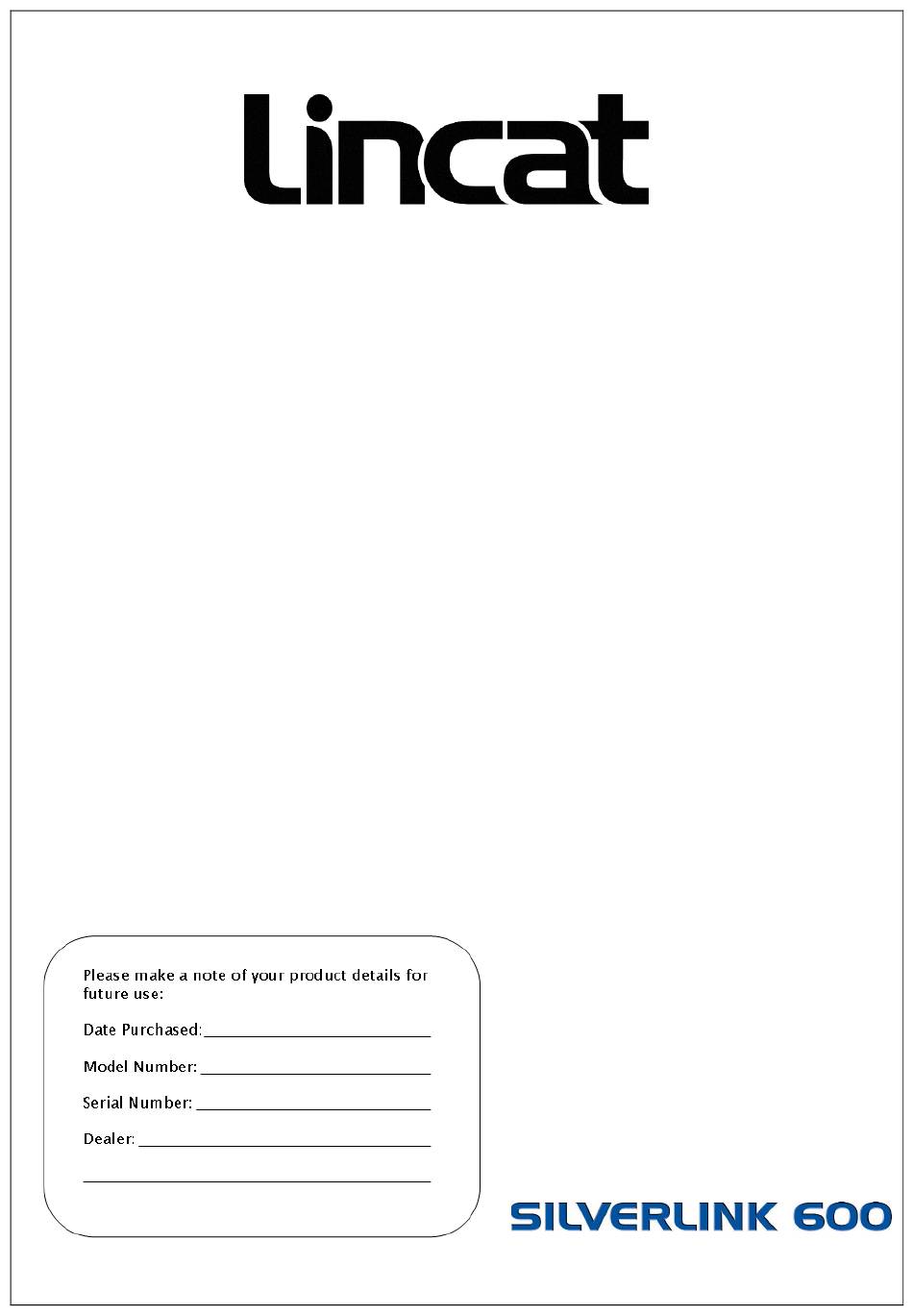

  • Page 1 User, Installation and Servicing Instructions Silverlink 600 Gas Fryers DF4-A007 IS676 ECN4560...
  • Page 2: Table Of Contents

    WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. NOTE: This symbol is used to provide additional information, hints and tips.
  • Page 3: Warnings And Precautions

    WARNINGS AND PRECAUTIONS This appliance must be installed, commissioned and serviced by a qualified person in accordance with national and local regulations in force in the country of installation. Strip plastic coating and clean the appliance before use. During operation parts may become hot - avoid accidental contact. Parts protected by the manufacturer shall not be adjusted by the user.
  • Page 4: Check List Of Enclosures

    CHECK LIST OF ENCLOSURES Please ensure the following items are included with this piece of equipment: Model Tick Warranty Card User Instructions INSTALLATION AND COMMISSIONING This appliance is supplied with feet that should be fitted when it is to be mounted on either a counter top or tabletop.
  • Page 5 Commissioning must include a functional check of all controls and a calibration check on the thermostat. Oil temperature should be checked once the main burners have cut out for a second time. Upon handover, ensure all operators know how to safely light, operate and shutdown the appliance and are aware of the isolating cock.
  • Page 6: Operating Instructions

    FASCIA PANEL REMOVAL Removing the facia panel (Fig 1, A) Remove the control knob (Fig 1, C) and undo control thermostat screws (Fig1, E). Remove drain valve nut (Fig 1, D). Point the drain valve lever directly forward (Fig 1, B). Remove screws from beneath the control panel (Fig 1, F) to allow control panel to be lifted forward.
  • Page 7 OPERATION INSTRUCTIONS This appliance is for professional use and must be operated by qualified or trained personnel only. This unit is intended to be used to produce deep fried products only. Note: The recommended frying weight is 750g (0.75kg) per basket. Operator precautions Do not leave the appliance unsupervised whilst operating.
  • Page 8 Rinse the tank and dry thoroughly. Run a small quantity of oil across the base of the tank and allow it to drain. This will remove any residual water and provide the tank base with a coating of oil. Close the drain valve, fit the blanking nut and fill the appliance with clean oil to the lower level, maintain oil at the upper level during service.
  • Page 9 PILOT Fig 4. Standby Once the pilot is lit, the appliance may be left on standby by leaving the pilot control knob in the pilot ignition position. (Fig 4, B). When in this position the appliance cannot be operated from the thermostat control knob. To re ignite the main burners turn the pilot control knob anti-clockwise to the burner position, (Fig 4, C), and operate the control thermostat as normal.
  • Page 10: Cleaning

    CLEANING Do not use a water jet or steam cleaner, and do not immerse this appliance. Drain as per the above instructions. Clean all panels with warm water and mild detergent do not use abrasive or flammable materials. Dry with a soft cloth. Clean the drain valves from both inside and outside with a tube or flue brush.
  • Page 11 BASE AND HOBTOP SEPARATION Note: The fryer must be emptied of oil and disconnected from the gas supply before proceeding.  Remove the control panel as per (Fig1).  Detach the flue back by removing screws at back of unit holding flue to body. ...
  • Page 12: Component Replacement

    COMPONENT REPLACEMENT High limit thermostat  Remove the facia panel see (Fig 1).  Undo tank gland.  Undo limit thermostat nut and withdraw phial from bracket.  Withdraw phial from tank.  Thermostat can now be removed  Replace in reverse order, ensuring correct phial location within the tank bracket. Control thermostat ...
  • Page 13: Spare Parts List

     After separating, the pilot assembly steps 1 - 4.  Remove the igniter cable from the electrode.  Undo retaining nut and remove electrode from pilot assembly. SPARE PARTS LIST The following components are listed with Lincat reference part number. Description Part number Piezo Igniter...
  • Page 14: Fault Finding

    FAULT FINDING Piezo Ignitor not sparking. Is there a short in the High Tension Lead. Has Electrode Insulator Fractured. Yes. Yes. Replace Lead. If no spark is generated at all, Replace Electrode. replace Piezo Ignitor. Pilot burner will not light or stay lit. Are the thermocouple/Interrupter connections secure.
  • Page 15 High limit thermostat operates. Is the oil temperature over 220 Yes. Does the control stat operate on temp. rise when Replace set point is low (100 overtemperature stat. Yes. Replace control Are the connections stat. correct on the gas control. Yes.
  • Page 16: Service Information

    Gas Appliance Regulations 2016/426. GUARANTEE This unit carries a comprehensive UK mainland warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights. Contact Lincat for terms and conditions The guarantee does not cover:  Accidental damage, misuse or use not in accordance with the manufacturer’s instructions ...
