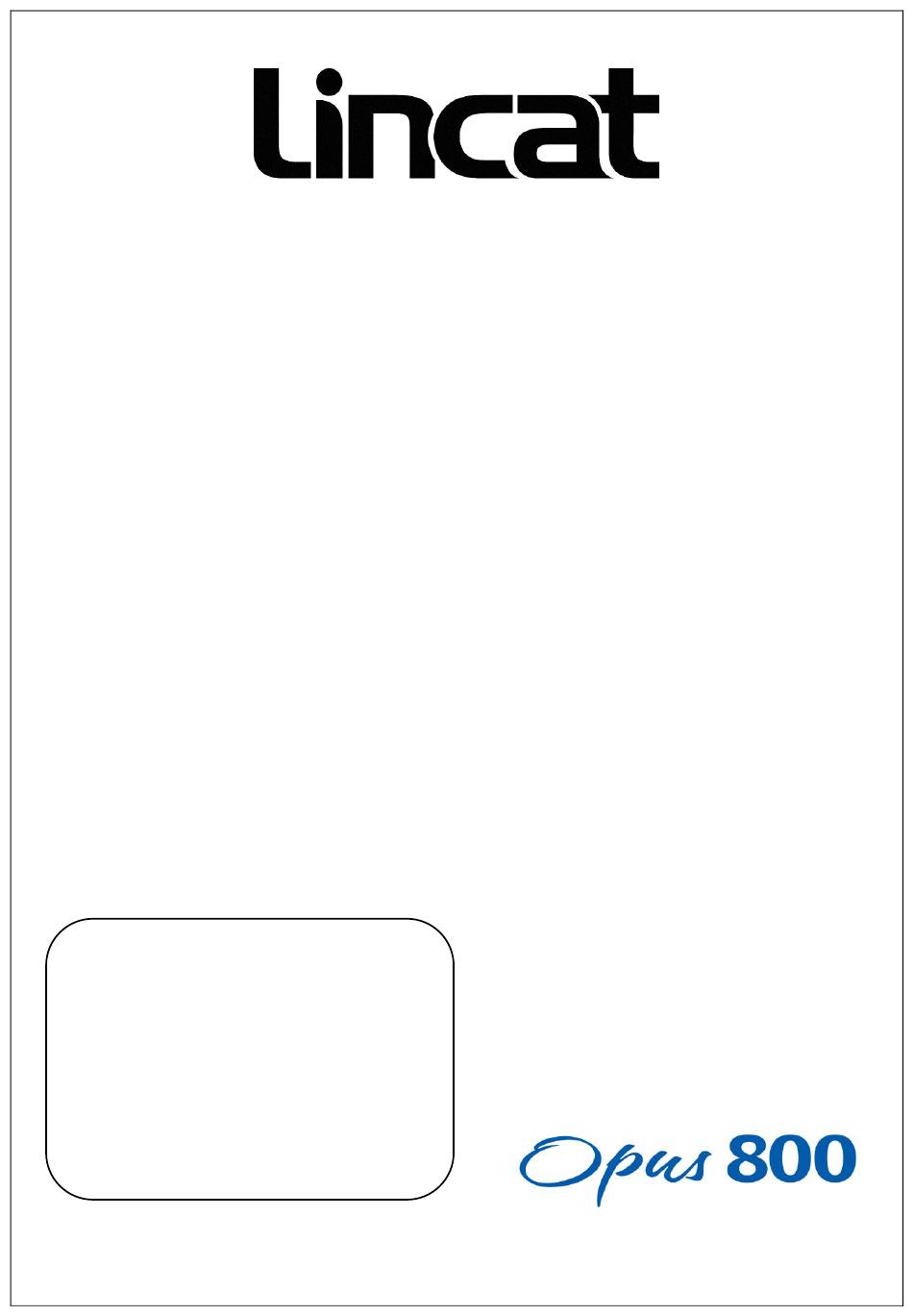

Installation, Operating and Servicing
Instructions
Opus 800 Electric Fryers
OE8112, OE8112/OP, OE8114, OE8114/OP,
OE8105, OE8105/OP, OE8105/OP2,
OE8108, OE8108/OP, OE8113, OE8113/OP,
OE8113/OP2
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________
IS 594 ECN 4699
Page 1 of 23
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lincat Opus 800 Series
Summary of Contents for Lincat Opus 800 Series
- Page 1 Installation, Operating and Servicing Instructions Opus 800 Electric Fryers OE8112, OE8112/OP, OE8114, OE8114/OP, OE8105, OE8105/OP, OE8105/OP2, OE8108, OE8108/OP, OE8113, OE8113/OP, OE8113/OP2 Please make a note of your product details for future use: Date Purchased:_________________________ Model Number:__________________________ Serial Number:__________________________ Dealer:_________________________________ _______________________________________ IS 594 ECN 4699 Page 1 of 23...
-
Page 2: Table Of Contents
WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. NOTE: This symbol is used to provide additional information, hints and tips. -
Page 3: Warnings And Precautions
WARNINGS AND PRECAUTIONS This appliance must be installed, commissioned and serviced by a qualified person in accordance with national and local regulations in force in the country of installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person. -
Page 4: Technical Data
TECHNICAL DATA OE8112 OE8114 OE8105 OE8108 OE8113 Height to hob (mm) Width (mm) Depth (mm) Weight (kg)* 57-61 61-65 61-69 72-77 85-93 Oil capacity (hot litres)** 2 x 9.5 36.5 2 x 15 Power Rating (kW) 12.0 14.0 14.0 22.0 24.0 Electrical supply 1N~+E One supply cable... -
Page 5: Checklist Of Enclosures
CHECK LIST OF ENCLOSURES OE8112 OE8114 OE8105 OE8108 OE8113 All models Warranty card Instructions manual Stability kit Wire baskets Batter plates Drain buckets Leg spanner (with leg kits only) Single pump models OE8112/OP OE8114/OP OE8105/OP OE8108/OP OE8113/OP only Mesh Filter Bag Mesh Filter Bag Frame Stainless steel filter Oil Return Lance... - Page 6 Supply cords shall be oil resistant, sheathed flexible cable not lighter than ordinary polychloroprene or equivalent elastomer sheathed cord (code 60245 IEC 57) Install this appliance on a level surface ensuring all vents are unobstructed. Any partitions, walls or furniture must be of non-combustible material. Minimum distances A 100mm B 1,000mm –...
- Page 7 Fitting the Stabilising Kit (Fig 2) The stabilising kit must be fitted to prevent accidental toppling of the appliance and to ensure a safe working environment. Fit the adjustable stabiliser centrally to the underside of the front cross member of the appliance (A) using the M5 x 16 hex screws and shake proof washers provided.
-
Page 8: Operating Instructions
The appliance is fitted with a safety cutout switch on the element mounting that disconnects the supply to the element when it is raised in the cleaning position. Commissioning Ensure that the drain taps are closed and clean the tanks thoroughly with a warm, mild detergent solution. - Page 9 For maximum efficiency, do not overload the baskets with product as it will result in reduced recovery times, uneven cooking and increased risk of surge boiling. (See Technical Data for recommended batch sizes). Oil should be filtered regularly. Old oil has a reduced flashpoint and is more prone to surge boiling.
- Page 10 Operation Check that the drain tap levers are closed and locked. Fill the tank to the minimum marker, which is on the capillary covers at the back of the tank. Ensure that the control knob is turned to the ‘Off’ position. Turn on the power supply at the isolating switch.
-
Page 11: Cleaning
Your product has a manufacturer’s warranty. This requires you maintain and care for your product and follow maintenance instructions. If you fail to maintain your unit or damage components Lincat may charge you for a warranty repair. Please check the website for terms and conditions. - Page 12 Operate the pump run switch until the oil has returned to the fryer tank then turn off the pump run switch. Remove the oil return lance, clean and place back in the door bracket. To drain oil into separate container Repeat the above procedure, but connect the return hose into the connector instead of the oil return lance.
- Page 13 Undo the knurled nuts and lift the splash cover up and forward off over the keyholes. (Fig 6) Fig 6 P Knurled Knob Q Splash cover Using the lifting hook, raise the elements up and out of the tank until the swinging support engages on the tank bracket.
-
Page 14: Servicing, Maintenance And Component Replacement
abrasive materials, and be careful not to damage the capillaries of the thermostat phials. Clean through the drain with a suitable brush. Rinse out the tank and drain taps. Dry thoroughly and flush with a small quantity of cooking oil to remove traces of water. Close the drain taps to the locked position. - Page 15 Component replacement Before carrying out any of the following, ensure appliance is disconnected from the supply. Fig 8 T Element microswitch U Contactor V Transformer W Terminal block X Wiring cover Y Swivel cover clip IS 594 ECN 4699 Page 15 of 23...
- Page 16 Thermostat replacement (Fig 8-12) Important: If you are replacing a thermostat on either an OE8105 or OE8114 fryer it is essential that the thermostat phial is placed on the correct side of the thermostat bracket on the element. The bracket is etched with ‘CONTROL STAT’...
- Page 17 Unclip the capillary cover from the element support by pushing up and back until it clears the 4 locating hooks. Lift the capillary cover away from the element support. Undo the thermostat phial bracket and remove the thermostat phial. Fig 11 AA Capillary cover hook Pull the thermostat phial and capillary back through the black cone grommet –...
- Page 18 Thread the thermostat phial back through the grommets until the point that it enters the wiring channel, which runs from the rear to the front of the appliance. Remove the top cover of the wiring channel. Working now from the front of the appliance, remove the control knobs. Carefully remove the facia panel (which is held by screws along its bottom edge) keeping all wiring intact.
- Page 19 Pump Replacement of a pump is best achieved by removing the relevant side panel i.e. LH side panel for LH pump and vice versa. To remove a side panel Take off the door by undoing the top hinge inside the cabinet and lifting the door clear.
-
Page 20: Fault Finding
FAULT FINDING Fryer will not heat up Is the green neon illuminated? Is the thermostat Check the mains turned on? isolator and fuse Turn on thermostat Is the amber neon illuminated? Check if safety thermostat needs resetting Is the contactor operating? Replace contactor Check the element... -
Page 21: Spare Parts List
SPARE PARTS LIST Part Description Used on BA82 Number Basket OE8113, OE8112, OE8108 BA83 Basket OE8114, OE8105 BS29 Basket hanger OE8112 BS30 Basket hanger OE8114, OE8105 BS31 Basket hanger OE8113, OE8108 Castor – swivel braked CA143 OE8113, OE8108 Castor – swivel unbraked CA145 OE8113, OE8108 CA184... -
Page 22: Accessories
ACCESSORIES Part Number Description Used on OA8954 Splashguards Basket alternatives OE8112 2 x BA122 OE8108 3 x BA83 OE8113 4 x BA122 IS 594 ECN 4699 Page 22 of 23... -
Page 23: Service Information And Guarantee
Type number All available on serial plate Serial number Lincat reserve the right to carry out any work under warranty, given reasonable access to the appliance, during normal working hours, Monday to Friday, 08:30 to 17:00. GUARANTEE This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights.
