Tech Sheet

StyleView SV41/42

LCD Lift Replacement

WARNING

Impact Hazard!

Moving Parts can Crush and Cut.

Raise monitor to top of vertical

adjustment BEFORE removing.

Failure to heed this warning may result in

serious personal injury or property damage!

888-05-031-G-00 rev. B • 04/13

M6 x 12mm

822-310

Estimated Completion Time

minutes

10mm

5/32" (4mm)

1/3

Table of Contents

Do you have a question about the StyleView SV41 and is the answer not in the manual?

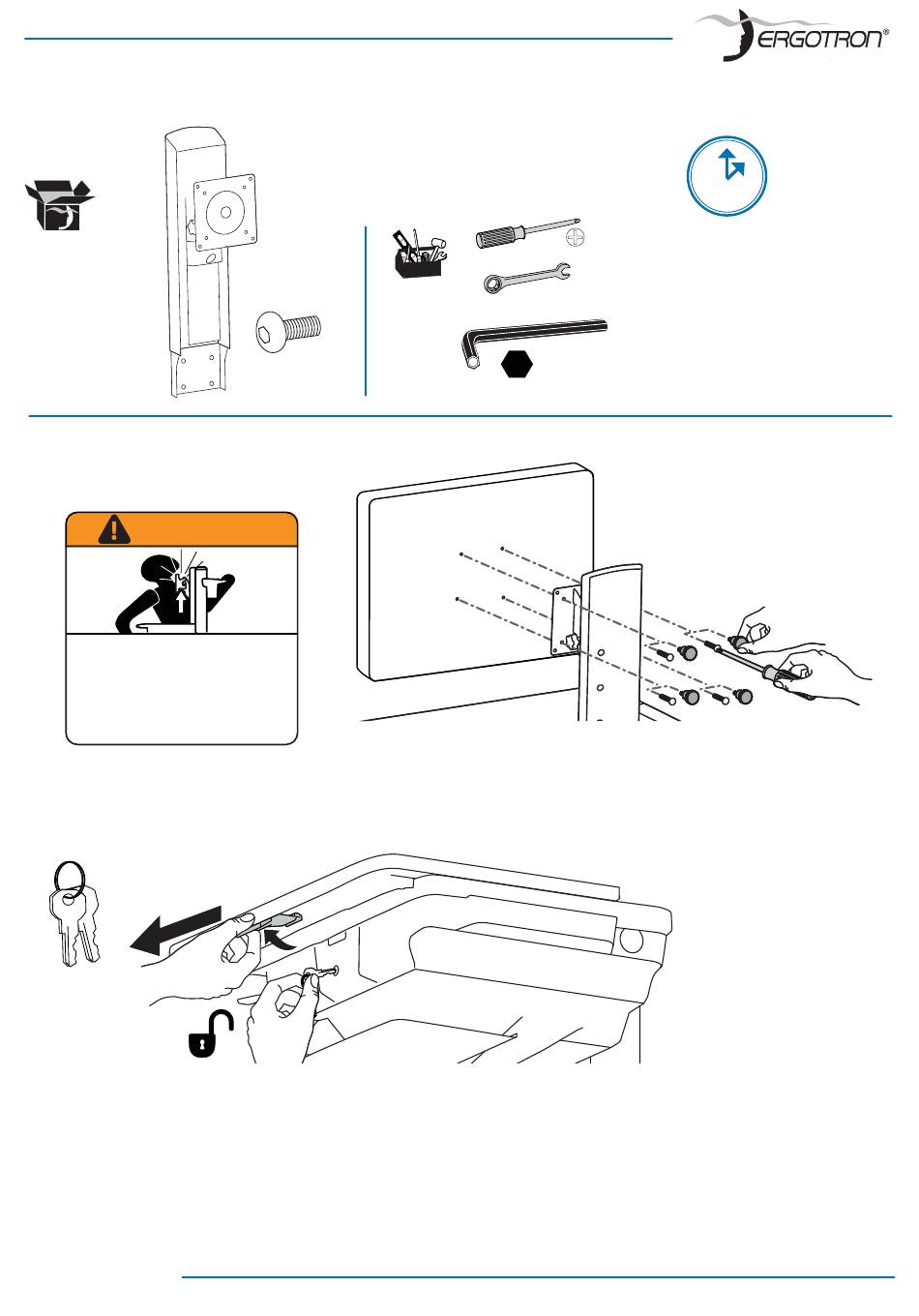

Page 1 Tech Sheet StyleView SV41/42 LCD Lift Replacement Estimated Completion Time minutes 10mm 5/32" (4mm) M6 x 12mm Remove monitor. Save screws for reattachment. WARNING Impact Hazard! Moving Parts can Crush and Cut. Raise monitor to top of vertical adjustment BEFORE removing.
Page 2 Tech Sheet StyleView SV41/42 Remove ground wire and star washer if present, then remove the four screws and pivot lift. Attach new pivot lift with same screws. If you removed a ground wire and star washer, reattach as shown. 5/32" (4mm) M6 x 12mm Attach monitor.
Page 3 Tech Sheet StyleView SV41/42 Close worksurface. It is important that you adjust this product according to the weight of the mounted equipment as described in the following steps. Any time equipment is added or removed from this product, resulting in a change in the weight of the mounted load, you should repeat these adjustment steps to ensure safe and optimum operation.

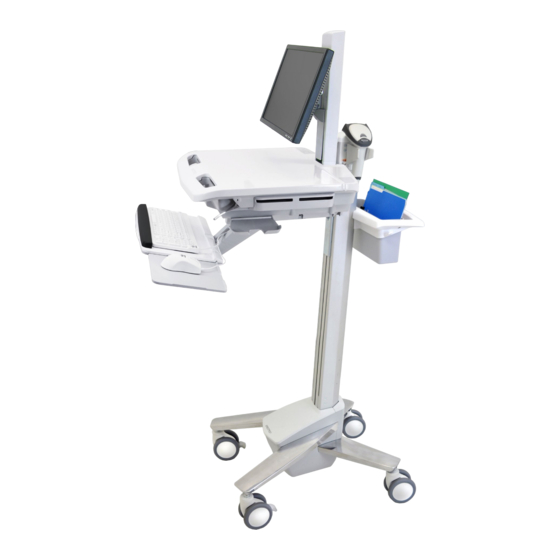

Styleview sv42
