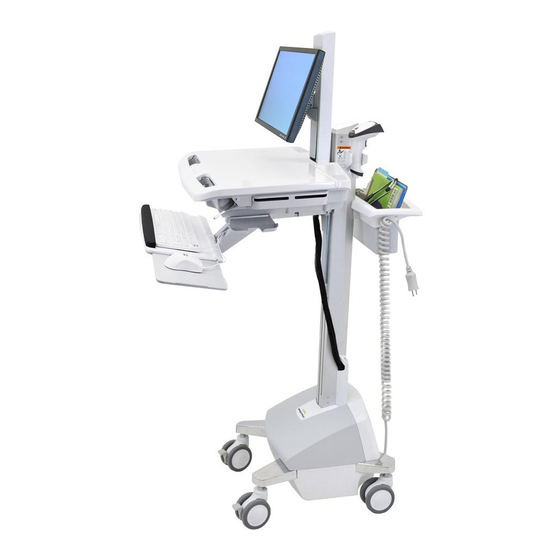

Ergotron StyleView SV42 User Manual

Electronic medical records (emr) cart with lcd arm
Hide thumbs Also See for StyleView SV42:

Advertisement

Quick Links

Download this manual
StyleView
SV42
®
Electronic Medical Records (EMR) Cart
with LCD Arm
For the latest User Installation Guide and StyleLink Software Download please visit: www.ergotron.com
English, Español, Français, Deutsch, Nederlands, Italiano, Svenska, 日本語, 汉语
1/21
888-24-179-G-02 rev. U • 06/22

Advertisement

loading
Need help?

Need help?

Do you have a question about the StyleView SV42 and is the answer not in the manual?

Questions and answers

Related Manuals for Ergotron StyleView SV42

Summary of Contents for Ergotron StyleView SV42

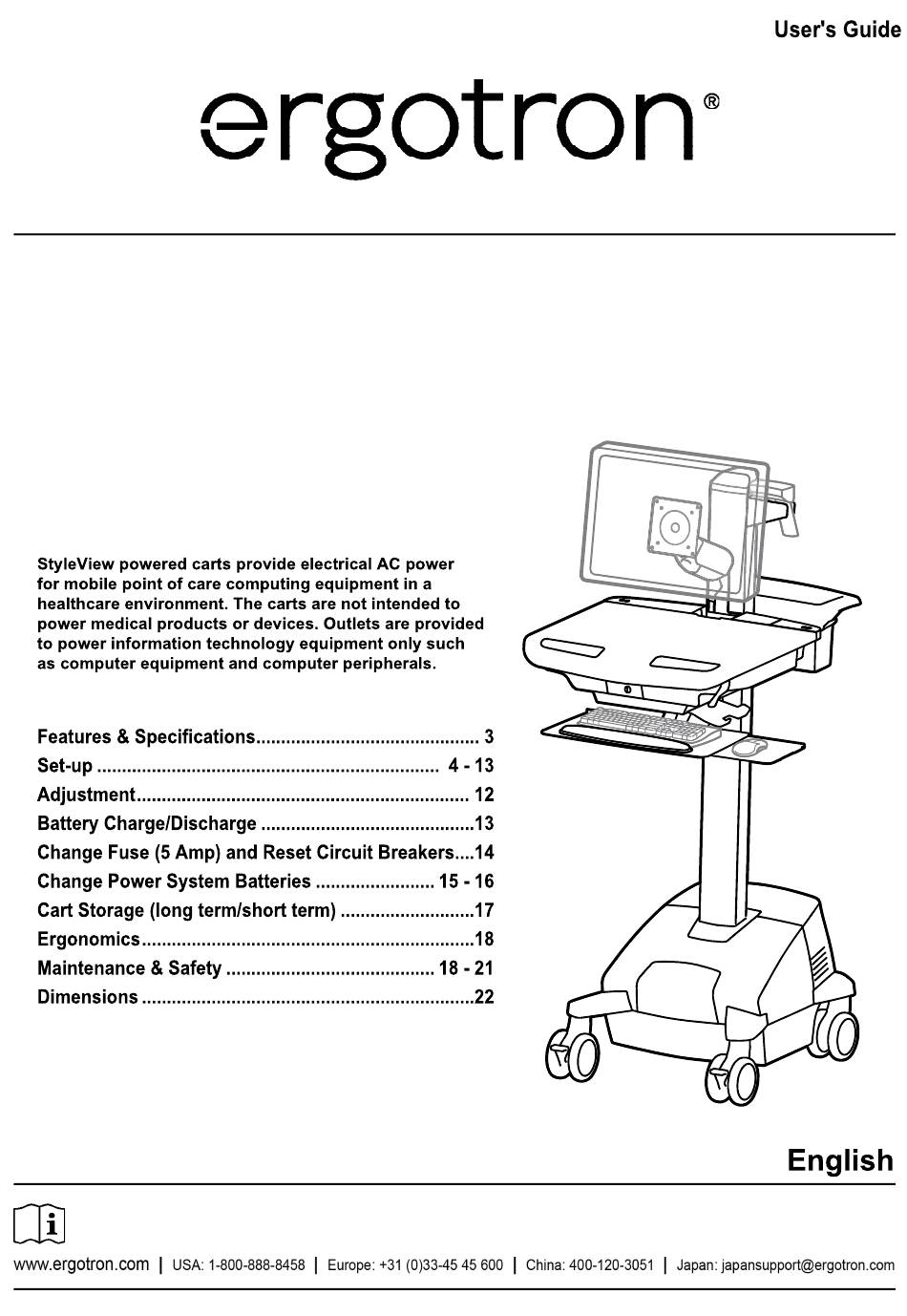

  • Page 1 StyleView SV42 ® Electronic Medical Records (EMR) Cart with LCD Arm For the latest User Installation Guide and StyleLink Software Download please visit: www.ergotron.com English, Español, Français, Deutsch, Nederlands, Italiano, Svenska, 日本語, 汉语 1/21 888-24-179-G-02 rev. U • 06/22...

  • Page 2: Tools Needed

    Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Please contact Ergotron for complete EMC compatibility information. Components...
  • Page 3 SV42-6201-1 Input: 120VAC/60 Hz, 5.1A; Output: 120VAC/60 Hz, 400VA, 300W. • The cart and power system are certifi ed to UL 60601 and CAN/CSA-C22.2 601.1- SV42-6201-2 Input: 230V~/50 Hz, 2.7A; Output: 230V~/50 Hz, 400VA, 300W. SV42-6201-3 • The cart and power system are compliant with EN 60601-1. SV42-6201-B SV42-6201-C SV42-6201-7...
  • Page 4 (Type A) (Type A) NOTE: Bar Code Scanner should be connected directly to computer USB port. DO NOT connect Bar Code Scanner to the USB Hub. 4/21 888-24-179-G-02 rev. U • 06/22...
  • Page 5 M4 x 5mm M4 x 10mm M4 x 12mm 5/21 888-24-179-G-02 rev. U • 06/22...
  • Page 6 Plug in power cables. Route power cable down along tower. If you do not have power outlets located here, then follow steps 'a' - 'f' to route power cables. 6' (1.8 m) Power cables need to be 6' (1.8 m) long. 6/21 888-24-179-G-02 rev.
  • Page 7 WARNING! Connecting electrical equipment to the outlet eff ectively leads to creating a medical system and the result can be a reduced level of safety. 7/21 888-24-179-G-02 rev. U • 06/22...
  • Page 8 USB Hub, Keyboard Lights and Fan to function). This USB cable runs from the power system to your computer for StyleLink Software. For more info on StyleLink visit: http://4support. ergotron.com . Fan must always be running when computer is on.
  • Page 9 DO NOT OBSTRUCT AIR VENTS! Obstructing air vents may cause overheating and result in equipment damage. If computer with cables is too wide, then follow these instructions. 9/21 888-24-179-G-02 rev. U • 06/22...
  • Page 10 10/21 888-24-179-G-02 rev. U • 06/22...
  • Page 11 Wheel Rotation Wheel Rotation and Swivel Locked 11/21 888-24-179-G-02 rev. U • 06/22...
  • Page 12 NOTE: Adjustment may require 40 - 60 revolutions. 14mm (9/16") M4 x 8mm 12/21 888-24-179-G-02 rev. U • 06/22...
  • Page 13 30%. For details on enabling and disabling alarm Battery has less than 30% charge. Light is red and alarm beeps. Plug-in power cord and contact Ergotron Customer charge to 100%! You can use cart while charging. Care. Alarm Mute button. Pressing this will temporarily mute alarm.
  • Page 14 Disconnect Power System from power source. holding down the AC Outlet Power button for 1 - 3 seconds. Power light will shut off . Recommended: Before reseting circuit breakers, contact Ergotron to determine cause of trip. Littelfuse 312005HXP VOLTAGE 250V CURRENT...
  • Page 15 • Replace fi rst battery before removing second battery. • Replace batteries with same Amp/Hour rating batteries only. • Only Ergotron-specifi ed batteries may be used in the StyleView Power System. Please call customer care for more details. • Recycle battery or contact Ergotron for proper battery disposal guidelines.
  • Page 16 16/21 888-24-179-G-02 rev. U • 06/22...
  • Page 17 Optimal storage temperature is 15°C/59°F. Battery voltage should be checked every three (3) months. If voltage drops below 12.5VDC, fully recharge battery. Contact Ergotron Customer Care for information about how storage might impact the battery warranty. 17/21 888-24-179-G-02 rev. U • 06/22...
  • Page 18 customize - to your size stow - before you go 1 Set top of monitor screen about one inch below eye level - Release brake and lift or lower riser 1 During normal movement, release brake and lower worksurface to lowest position as needed.
  • Page 19 It is recommended that any cleaning solution be tested on a small, inconspicuous area to ensure surface is not harmed. Adjustment, Service, Replacement - DO NOT attempt to adjust, service or replace any part of the StyleView Cart unless directed to do so through Ergotron- approved documentation (i.e.
  • Page 20 Earth Bond Test: To ensure safety grounding between the Recommended Periodic Inspection and Maintenance power cord ground connection and any accessible metal Component Action How often By whom parts on the cart, although not mandatory, the following test is recommended to be performed every two years using a UI, Ethernet, USB Inspect for wear, pinching, bad Monthly...
  • Page 21 Ergotron Electromagnetic Guidance and Manufacturer’s Declaration Guidance and Manufacturer’s Declaration – Electromagnetic Emissions The Powered Computer Cart is intended for use in the electromagnetic environment specifi ed below. The customer or the user of the Powered Computer Cart should assure that it is used in such an environment.
  • Page 22 Front View Side View Top View 22/21 888-24-179-G-02 rev. U • 06/22...
  • Page 23 For Service visit: www.ergotron.com For local customer care phone numbers visit: http://contact.ergotron.com NOTE: When contacting customer service, reference the serial number. © 2016 Ergotron, Inc. All rights reserved. StyleView® is a registered trademark of Ergotron, Inc. 23/21 888-24-179-G-02 rev. U • 06/22...
