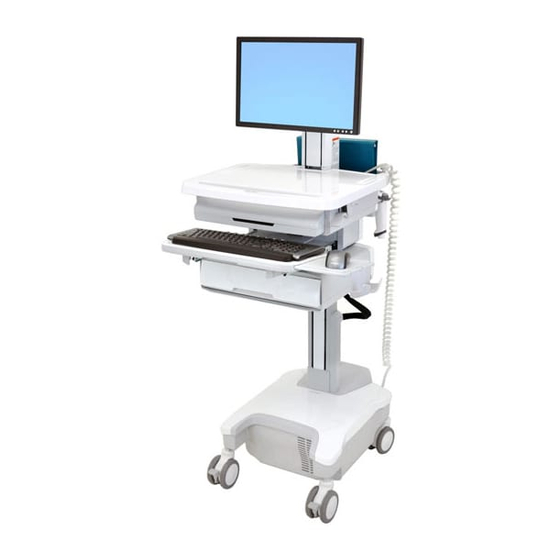

Ergotron StyleView SV32 User Manual

Patient healthcare delivery lcd cart
Hide thumbs Also See for StyleView SV32:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
StyleView powered carts provide electrical AC power
for mobile point of care computing equipment in a
healthcare environment. The carts are not intended
to power medical products or devices. Outlets
are provided to power information technology
equipment only such as computer equipment and
computer peripherals.

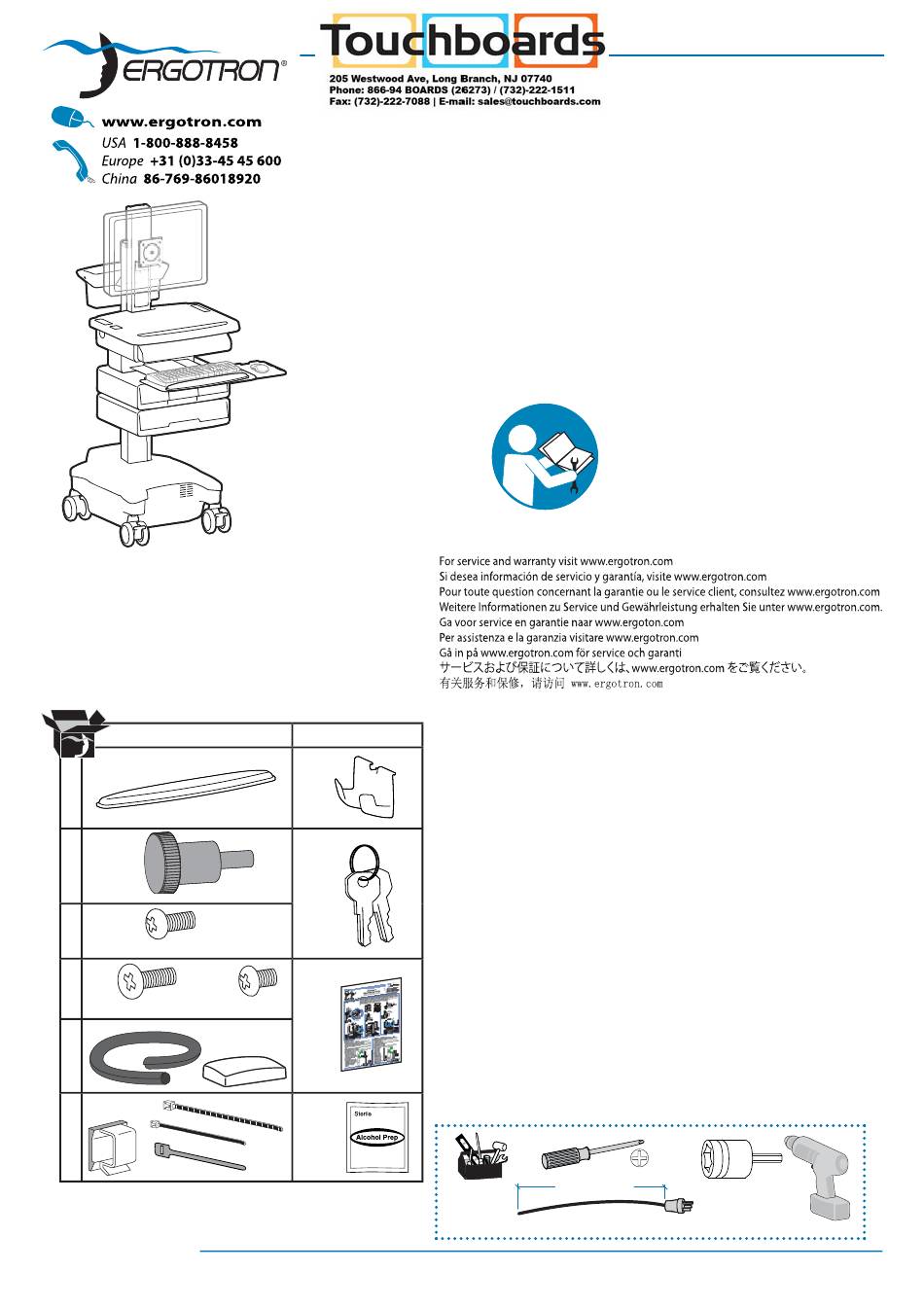

A
1x
1
4x
2
M4 x 10mm
4x
3
M4 x 10mm
1x
1x
4
M4 x 8mm
M4 x 5mm
1x
5
2x
6
888-24-092-G-02 rev. H • 05/11
For the latest User Installation Guide and StyleLink Software Download please visit:
Encontrará la versión más reciente del manual de instalación del usuario y el software de StyleLink en:
Si vous souhaitez télécharger le dernier manuel d'installation de l'utilisateur ou le logiciel StyleLink, rendez-vous sur :
Den neuesten Installationsleitfaden für Benutzer sowie den neuesten StyleLink-Softwaredownload fi nden Sie unter:
Voor de nieuwste Installatiehandleiding voor de gebruiker en voor het downloaden van StyleLink-software gaat u naar:
Per scaricare le versioni più recenti del manuale di installazione e del software StyleLink, andare al sito:
De senaste versionerna av installationshandledningen och nedladdning av programvaran för StyleLink fi nns på:
最新版ユーザインス トールガイ ドとスタイルリンク ソフ トウェアは次のサイ トでダウンロードできます。
사용자 설치 안내서 및 StyleLink 소프트웨어 다운로드는 다음 웹 사이트에서 제공하고 있습니다.
B
1x
3x
1x
1x
1x
2x
1x
1x
请从下列地址获取最新版本的用户安装指南和 StyleLink 软件下载：
http://4support.ergotron.com
Features & Specifi cations ............................................... 2 - 4
Set-up ............................................................................ 5 - 10
Battery Charge/Discharge ...................................................9
Ready On ............................................................................10
Adjustment ................................................................. 11 - 12
Auto-Lock Drawer ...............................................................13
Change Power System Batteries ................................ 15 - 16
Cart Storage (long term/short term) .................................17
Ergonomics .........................................................................18
Maintenance & Safety ................................................ 18 - 20
6' (1.8 m)
Power cables need to be 6' (1.8 m) long.
EN
User Guide
StyleView® SV32
Patient Healthcare Delivery LCD Cart
User's Guide - English
Guía del usuario - Español
Manuel de l'utilisateur - Français
Gebruikersgids - Nederlands
Benutzerhandbuch - Deutsch
Guida per l'utente - Italiano
Användarhandbok - svenska
ユーザーガイ ド : 日本語
用户指南 : 汉语
사용자 안내서 : 대한민국
14mm (9/16")
1/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the StyleView SV32 and is the answer not in the manual?

Questions and answers

Related Manuals for Ergotron StyleView SV32

Summary of Contents for Ergotron StyleView SV32

  • Page 1: Table Of Contents

    De senaste versionerna av installationshandledningen och nedladdning av programvaran för StyleLink fi nns på: 最新版ユーザインス トールガイ ドとスタイルリンク ソフ トウェアは次のサイ トでダウンロードできます。 请从下列地址获取最新版本的用户安装指南和 StyleLink 软件下载： 사용자 설치 안내서 및 StyleLink 소프트웨어 다운로드는 다음 웹 사이트에서 제공하고 있습니다. http://4support.ergotron.com User's Guide - English Guía del usuario - Español Manuel de l’utilisateur - Français...

  • Page 2: Features & Specifi Cations

    The minimum storage temperature is -20°C (-4°F) Changes or modifi cations not expressly approved by and the maximum storage temperature is 50°C (122°F). The Ergotron, Inc. could void the user’s authority to operate the recommended humidity range for storage is 5-95% rH. equipment.
  • Page 3 Features & Specifi cations Part Number Power System Auto-Lock Drawer SV32-81211 Input: 120VAC/60 Hz; 5.1A 1 Drawer*/6 compartments Output: 120VAC/60 Hz, 400VA/300W. • The cart and power system are certifi ed to UL 60601 and CAN/CSA-C22.2 601.1-M90 Input: 120VAC/60 Hz; 5.1A 2 Drawers*/12 compartments SV32-81222 Output: 120VAC/60 Hz, 400VA/300W.
  • Page 4 Features & Specifi cations 25˚ 90˚ 20" 5" (508 mm) (127 mm) 12˚ + 12˚ Weight Capacity With Independent Without Independent LCD Lift: LCD Lift: 20 lbs (9 kg)* 6-16 lbs (2.7-7.3 kg) * See "How To Eliminate Independent LCD Lift" section <3 lbs (1.4 kg) Worksurface <13 lbs (5.9 kg) CPU Compartment <3 lbs...

  • Page 5: Set-Up

    Set-up Connect Keyboard and Mouse to USB Hub USB (Type A) USB (Type A) NOTE: Bar Code Scanner should be connected directly to computer USB port. DO NOT connect Bar Code Scanner to the USB Hub. 888-24-092-G-02 rev. H • 05/11 5/21...
  • Page 6 Set-up 90˚ 0˚ M4 x 5mm 0˚ 75x75mm / 100x100mm M4 x 10mm WARNING Impact Hazard! Moving Parts can Crush and Cut. Raise monitor to top of vertical adustment BEFORE removing. Failure to heed this warning may result in serious personal injury or property damage! 822-310 With Independent Without Independent LCD Lift:...
  • Page 7 Set-up Placement of CPU's in Secure Storage Area: Route computer cables down opening in enclosure (left or right side.) USFF (Ultra Small Form Factor) Thin Client Do Not connect or use fan with USFF (Ultra Small Form Factor) CPU's. Center CPU in storage area. Place AC Power Adaptors in compartment.
  • Page 8 Set-up 888-24-092-G-02 rev. H • 05/11 8/21...

  • Page 9: Battery Charge/Discharge

    Battery has less than 30% charge. Light is red and alarm beeps. Plug-in power cord and charge contact Ergotron Customer Care. to 100%! You can use cart while charging. Alarm Mute button. Pressing this will temporarily mute alarm.

  • Page 10: Ready On

    6. Install the worksurface and press Ready On Button. Do not hold button down, only press for a second and then wait for computer to turn on. Computer should turn on. If it does not turn on repeat steps 1 - 6. If computer still does not turn on, contact Ergotron Customer Care.

  • Page 11: Adjustment

    Adjustment It is important that you adjust this product according to the weight of the mounted equipment as described in the following steps. Any time equipment is added or removed from this product, resulting in a change in the weight of the mounted load, you should repeat these adjustment steps to ensure safe and optimum operation. Adjustments should move smoothly and easily through the full range of motion and stay where you set it.
  • Page 12 3. Remove monitor. Failure to heed this warning may result in serious personal injury or property damage! For More information and instructions refer to product guide at http://4support.ergotron.com or contact Ergotron Customer Care at 1-800-888-8458. 822-055 888-24-092-G-02 rev. H • 05/11...

  • Page 13: Auto-Lock Drawer

    - Check to make sure DC cable is connected. • Drawer won’t open when User PIN is entered: - Test system by entering Master PIN. If drawer doesn’t unlock, contact Ergotron customer care for "Lost Master PIN" instructions. Lights: Meaning 1,2,3,4,5 or 6 and Red mute button Flashing and alarm sounding: Drawer is open longer than 20 seconds.

  • Page 14: Change Fuse (1 Amp) And Reset Circuit Breakers

    AC Outlet power source. Power button for 1 - 3 seconds. Power light will shut off . 1 Amp Fuse Recommended: Littelfuse 312001P Before reseting circuit breakers, contact Ergotron to determine cause of trip. 888-24-092-G-02 rev. H • 05/11 14/21...

  • Page 15: Change Power System Batteries

    • Replace fi rst battery before removing second battery. • Replace batteries with same Amp/Hour rating batteries only. • Only Ergotron-specifi ed batteries may be used in the StyleView Power System. Please call customer care for more details. • Recycle battery or contact Ergotron for proper battery disposal Installing batteries other than the 33 -Ah listed above will void the product warranty.
  • Page 16 Caution: Connect Red (+) before connecting Black (-). Black Caution: Remove Black (-) before removing Red (+). Black LEAD Recycle battery or contact Ergotron for proper battery disposal guidelines. BATTERY Caution: Connect Red (+) before connecting Black (-). Black Follow Battery Charge/Discharge Initial Power on steps.

  • Page 17: Cart Storage (Long Term/Short Term)

    Store battery in cool, dry area while Cart is out of use. Optimal storage temperature is 15°C/59°F. Battery voltage should be checked every three (3) months. If voltage drops below 12.5VDC, fully recharge battery. Contact Ergotron Customer Care for information about how storage might impact the battery warranty.

  • Page 18: Ergonomics

    Ergonomics Working Moving customize - to your size stow - before you go 1 Set top of monitor screen about one inch below eye level - Release brake and lift or lower riser 1 During normal movement, release brake and lower worksurface to as needed.
  • Page 19 It is recommended that any cleaning solution be tested on a small, inconspicuous area to ensure surface is not harmed. Adjustment, Service, Replacement - DO NOT attempt to adjust, service or replace any part of the StyleView Cart unless directed to do so through Ergotron-approved documentation (i.e.
  • Page 20 RF Emissions Group 1 The Powered Computer Cart uses RF energy only for its weight capacity specifi ed by Ergotron. Ensure optimum lift function CISPR 11 internal function. Therefore, its RF emissions are very by testing and if necessary, re-adjusting tension whenever the weight low and unlikely to cause any interference in nearby mounted to the riser changes (i.e., equipment is removed or added).
  • Page 21 Features & Specifi cations 13.4" 2.9" 47.4”- 67.4” (1204-1712 mm) (340 mm) (73 mm) 16.8" (427 mm) 28" 4.4" - 9.4" 3.1" (710 mm) (112-239 mm) 34.5" (79 mm) (876 mm) 4.4" (112 mm) 17.7" (450 mm) 8.8" 5.3" (224 mm) (134 mm) 8.1"...
