Summary of Contents for Maytronics Dolphin Liberty 200

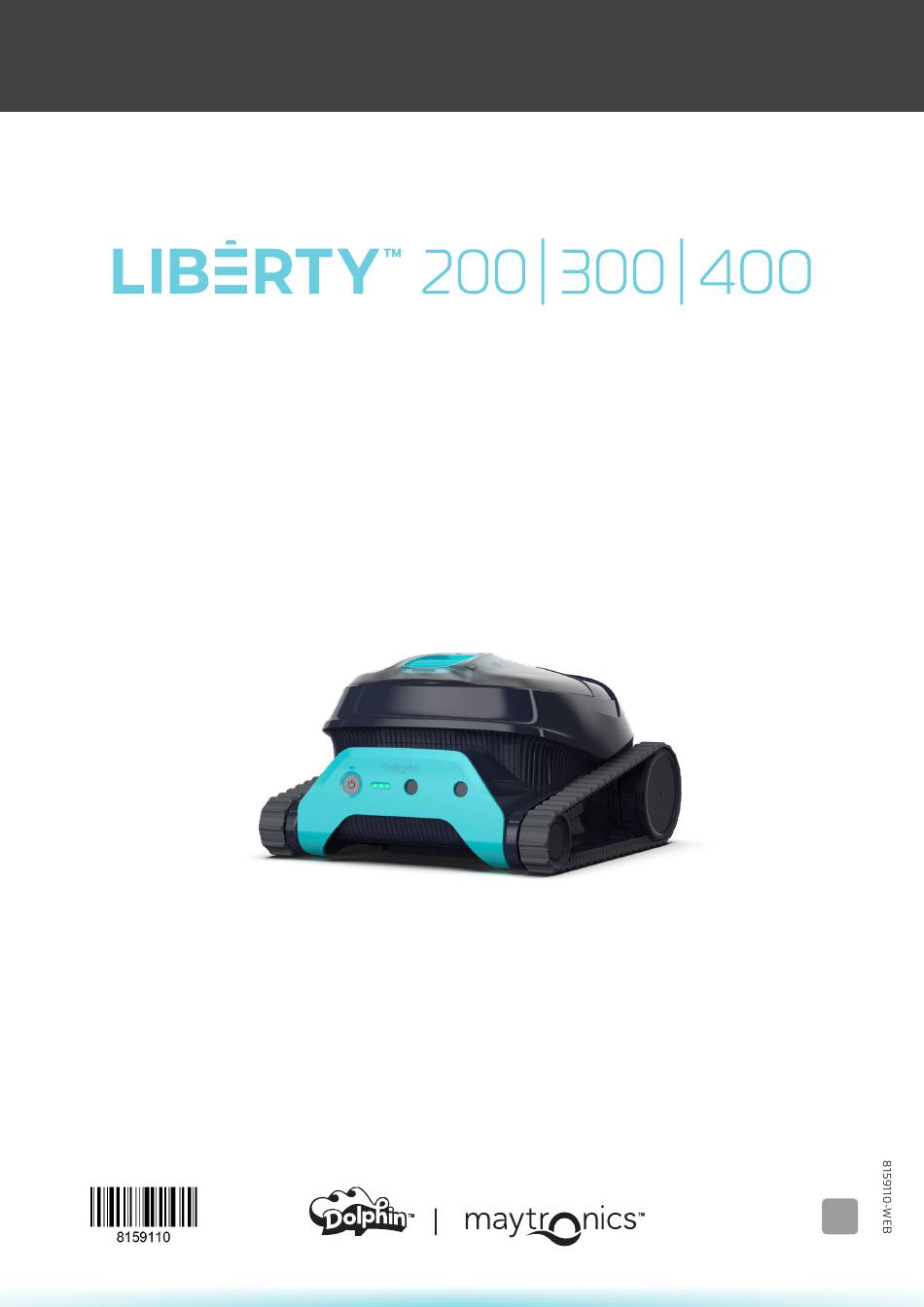

- Page 1 Robotic Pool Cleaner LIBERTY User Instructions...
-
Page 2: Table Of Contents
LIBERTY 200 | 300 | 400 Cordless Robotic Pool Cleaner User Instructions Contents 1. Getting Started ..................................3 1.1 What's in the Box ................................3 1.2 First Time Use .................................. 3 2. Speifications ....................................4 2.1 Robot ....................................4 2.2 Water conditions ................................4 3. -
Page 3: Getting Started
LIBERTY 200 | 300 | 400 Cordless Robotic Pool Cleaner User Instructions 1. GETTING STARTED 1.1 What’s in the Box Settings and Battery indicators status indicator Power button Inductive charger connection Extra filter pannels* Filter basket Grab hook Charger Clicker* * LIBERTY 300 &... -
Page 4: Speifications
2. SPECIFICATIONS 2.1 Robot Water temperature range: 6°C - 35°C / 43°F - 95°F Water depth range: 0.4m - 3m / 1.33ft - 9.8ft Motor protection: IP 68 Charger protection: IP 54 Battery Lithium-ion | 5,000mAh | 25.2V ; 5Ah / 126Wh Radio communication: Bluetooth®... -
Page 5: Charging Recommendations
4. CHARGING RECOMMENDATIONS • When the battery is low and all indicators are off - the cleaner is on standby mode. Connect the charger to the robot to wake it up. • Always charge the pool cleaner in a protected and shaded area at a temperature range of 6°C - 35°C / 43°F - 95°F, until you see 3 green bars in the battery indicator panel (up to 6 hours). -
Page 6: Cleaning The Filter Basket
6. CLEANING THE FILTER BASKET To prevent debris from hardening on the filter, we highly recommend quick-rinsing the filter immediately after removing the robot from the pool. Rinsing after each use - removing and cleaning the filter basket Open the filter cover. Upon opening the filter cover, the handle will lift independently. -
Page 7: Periodic Cleaning - Recommended At Least Once A Month
7. PERIODIC CLEANING - RECOMMENDED AT LEAST ONCE A MONTH Dismantle the 2 ultra-fine filter panels of the basket, using the following steps: Dismantle the 2 panels with your thumbs. Clean the filter panels with a hose. Re-assemble the filter panels. Insert the clean filter basket and close the filter cover. -
Page 8: Tm Plus App User Guide
8. MyDolphin™ Plus APP USER GUIDE 8.1 Getting Started with the MyDolphin™ Plus App The app is compatible with the following smart devices: • Apple (iOS) – version 10 and up – iPhone, iPad, iPod • Android – version 5 and up operating system 1. -
Page 9: Tm Plus Troubleshooting
9. MyDolphin™ Plus - TROUBLESHOOTING Symptom Possible reason Corrective action Cannot pair the • The Bluetooth® on one of your • Turn the Bluetooth® off and on in your smartphone. smartphone app to the devices is either off or not in For iOS –... -
Page 10: Off Season Storage
10. ROBOTIC POOL CLEANER - TROUBLESHOOTING Symptom Possible reason Corrective action The Robotic Pool • An object is stuck in the tracks or wheels. • Carefully remove the object from tracks or wheels. Cleaner does NOT • The robot is not charged •... -
Page 11: Warnings And Cautions
12. WARNINGS AND CAUTIONS 12.1 Warnings • Remove the robotic pool cleaner from the pool before allowing people to enter the pool. • When examining the robotic pool cleaner, make sure the robotic pool cleaner is switched OFF. CAUTION • Charge the battery only in the temperature range between 6°C to 35°C / 43°F to 95°F •... - Page 12 Contact Maytronics Customer Care: Australia, NZ, South Africa 1 300 693 657 infoau@maytronics.com...
