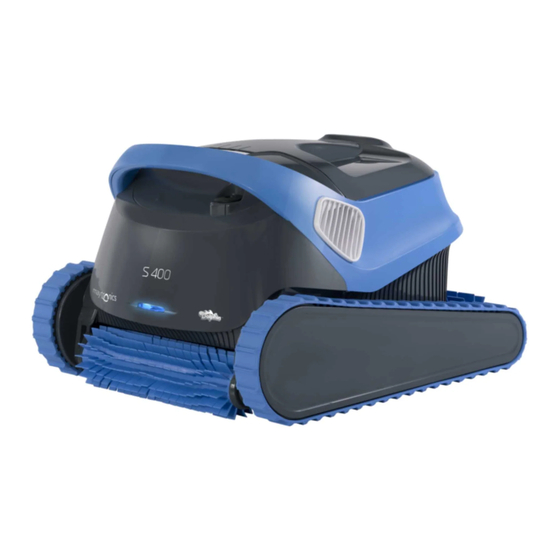

- Page 1 Top 10 / S400 Maytronics Dolphin robotic pool cleaner User Instructions 8181010...
-
Page 2: Table Of Contents
Top 10 / S400 Robotic Pool Cleaner User Instructions Contents 1. INTRODUCTION ..............................2 2. SPECIFICATIONS ..............................2 3. WARNINGS AND CAUTIONS ..........................2 4. ROBOTIC POOL CLEANER PARTS ........................4 5. USE THE POOL CLEANER ............................5 5.1 Setup ..................................5 5.2 Place the Pool Cleaner in the water ....................6 5.3 Robot Indicator Lights .......................... -
Page 3: Introduction
1. INTRODUCTION Thank you for purchasing a Maytronics Robotic Pool Cleaner. We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient and cost-effective pool cleaning. Its reliable filtration in all pool conditions, active brushing, and all-surface climbing brush enhance maximum pool hygiene. - Page 4 Keep the Robot Pool Cleaner out of the reach of children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. WARNING The unit must be connected only to a supply circuit that is protected by a ground-fault circuit interrupter (GFCI).
-
Page 5: Robotic Pool Cleaner Parts
4. ROBOTIC POOL CLEANER PARTS Robotic Pool Cleaner Power supply Filtration Caddy kit Top 10 / S400 User Instructions... -
Page 6: Use The Pool Cleaner
5. USE THE POOL CLEANER 5.1 Setup The Pool Cleaner is very simple to use. Simply place it in the pool and make sure that it is correctly positioned on the floor of the pool. Turn it ON and enable it to complete the task. Before using the Pool Cleaner for the first time, perform the following steps: 3.5m/12ft 5.1.1... -
Page 7: Place The Pool Cleaner In The Water
5.2 Place the Pool Cleaner in the Water 5.2.1 5.2.2 Place the Pool Cleaner into the pool. Turn the power supply ON. Release the Pool Cleaner and let it sink to the The Pool Cleaner will now operate until it has floor of the pool. -
Page 8: Remove The Pool Cleaner From The Water
5.4 Remove the Pool Cleaner from the Water Option A The easiest and most fun way to get the robot out of the water: 1. Log into the MyDolphin™ Plus app and click "Pick-up mode". 2. The robot will reach the wall closest to it, and will rise, and will wait for 3 minutes above the water surface. -
Page 9: Use The Mydolphin™ Plus Iot Mobile App
6. USE THE MyDolphin™ Plus IOT MOBILE APP Please download the Maytronics MyDolphin™ Plus app to your mobile smart device from either Google Play for Android or the Appstore for iOS. The Maytronics MyDolphin™ Plus app is cloud-connected, enabling control from anywhere at anytime, with real-time connectivity. -
Page 10: Led Lights
6.4 LED Lights Connectivity LEDs The connectivity LED light on the power supply has several modes: 1. Flashing blue light - waiting for Bluetooth® connection. 2. Steady blue light - connected via Bluetooth®. 3. Flashing green light - power supply is trying to connect to your home/pool Wi-Fi® network and cloud, or a weak internet signal. -
Page 11: Cleaning The Dual Filter Basket
8. CLEANING THE DUAL FILTER BASKET Clean the Dual Filter Basket Unplug the power supply before any servicing activity. WARNING 8.1 Cleaning after use - removing and cleaning the dual filter basket 8.1.1 8.1.2 Open the filter cover. The handle will lift up independently. -
Page 12: Periodic Filter Cleaning
8.2 Periodic filter cleaning - Recommended at least once a month Dismantle the 4 ultra-fine filter panels of the outer basket, according to the following steps: 8.2.1 8.2.2 8.2.3 Hold down the Dismantle the panels; Continue to dismantle the panels in order: 2 — > 3 — > 4. handle to remove the start by pressing on panel 1, inner net basket. -
Page 13: Clean The Impeller
8.3 Clean the Impeller If you notice debris trapped in the impeller: Unplug the power supply before any servicing activity. WARNING Clean the debris trapped in the impeller opening, according to the following steps: 7.3.1 7.3.2 7.3.3 7.3.4 7.3.5 7.3.6 Top 10 / S400 User Instructions... -
Page 14: Troubleshooting
9. TROUBLESHOOTING Unplug the power supply before performing any action. WARNING Symptom Possible reason Corrective action Power-supply • No voltage in the power socket in the wall. • Check that there is voltage in the power socket in the wall. or switch is not •... -
Page 15: Mydolphin™ Plus - Troubleshooting
10. MyDolphin™ Plus - TROUBLESHOOTING Before using the app, make sure you have: • Cellular connection 3G/4G/5G or Wi-Fi®, with strong signal strength • Power supply support 2.4Ghz ONLY • Bluetooth® enabled Action What To Do Pool cleaner does not connect to Wi-Fi®, and power supply is trying to connect to your home/pool Wi-Fi®... - Page 16 → The MU will link to robot and the app → home screen. If you do not recognize the serial number, press to add the robot s/n manually or scan the QR Code. If these solutions do not solve your problem, contact Maytronics Customer Care: North America 1-888-365-7446 ext. 1002 customersupport@maytronicsus.com...
