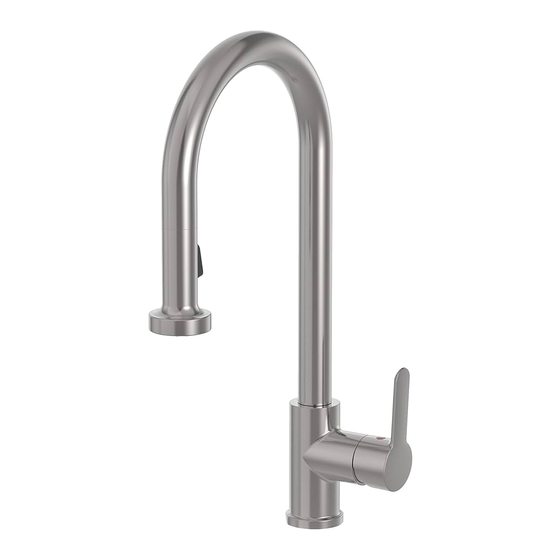

Symmons Sereno SPP-4310-PD Installation Manual

SPP-4310-PD
Kitchen Faucet with Pull-Down Spray
Installation Guide
Model Numbers

SPP-4310-PD
Kitchen Faucet with Pull-Down Spray

Compliance

-ASME A112.18.1/CSA B125.1
-NSF/ANSI 61.9, NSF/ANSI 372

Warranty

Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.

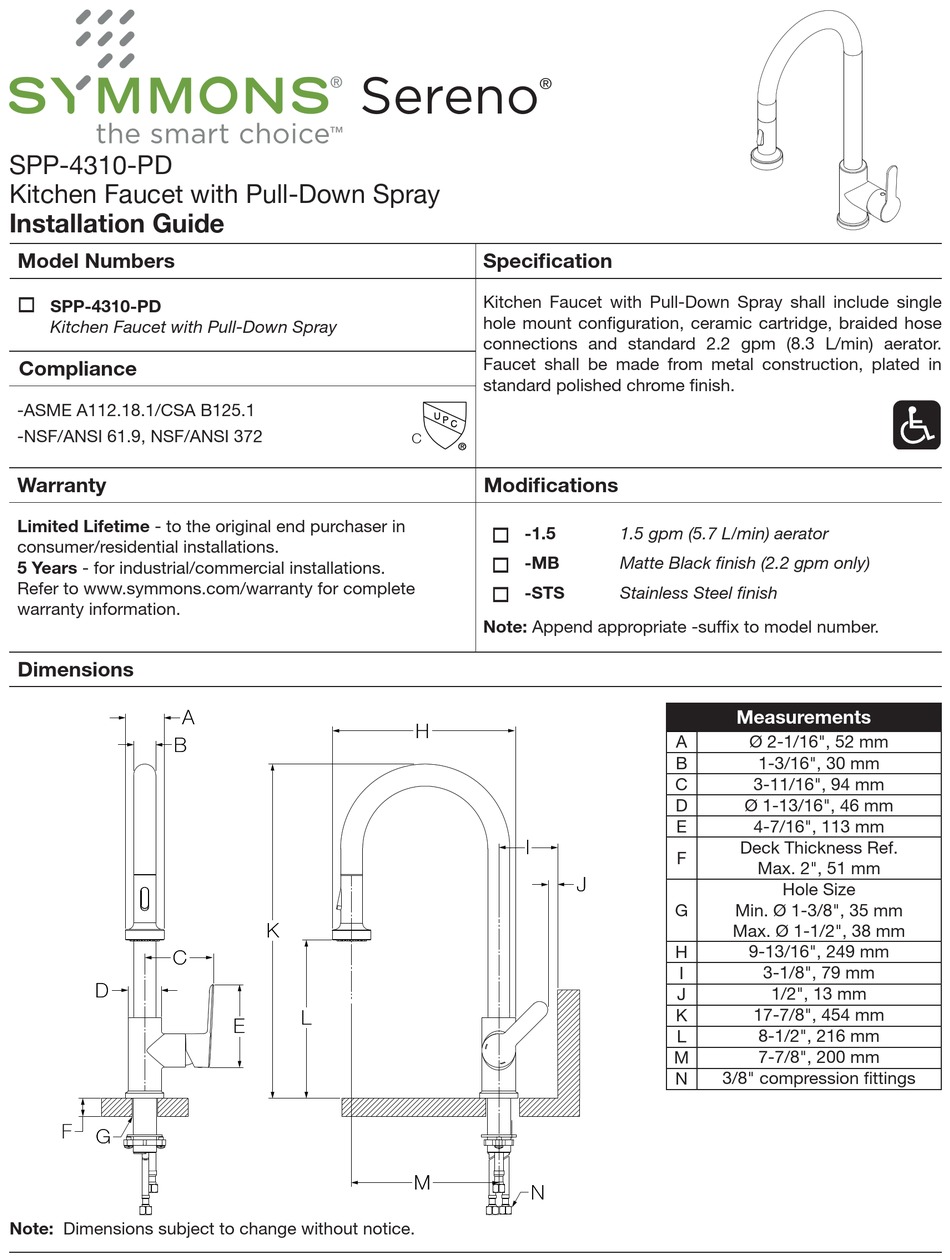

Dimensions

A A
B B
C C
D D
F F
G G
Note: Dimensions subject to change without notice.
Sereno
c
K K
L L
E E
®

Specification

Kitchen Faucet with Pull-Down Spray shall include single
hole mount configuration, ceramic cartridge, braided hose
connections and standard 2.2 gpm (8.3 L/min) aerator.
Faucet shall be made from metal construction, plated in
standard polished chrome finish.

Modifications

-1.5

-MB

-STS

Note: Append appropriate -suffix to model number.
H H
I I
J J
M M
N N
1.5 gpm (5.7 L/min) aerator
Matte Black finish (2.2 gpm only)
Stainless Steel finish
Measurements
A Ø 2-1/16", 52 mm
B 1-3/16", 30 mm
C 3-11/16", 94 mm
D Ø 1-13/16", 46 mm
E 4-7/16", 113 mm
Deck Thickness Ref.
F
Max. 2", 51 mm
Hole Size
G Min. Ø 1-3/8", 35 mm
Max. Ø 1-1/2", 38 mm
9-13/16", 249 mm
H
3-1/8", 79 mm
I
1/2", 13 mm
J
K 17-7/8", 454 mm
L 8-1/2", 216 mm
M 7-7/8", 200 mm
3/8" compression fittings
N
