User's Guide
ADC12DLXX00 Evaluation Module
The ADC12DLXX00 evaluation module (EVM) is used to evaluate the ADC12DL3200 and ADC12DL2500
analog-to-digital converters (ADC) from Texas Instruments. Throughout this document, the terms evaluation
board, evaluation module, and EVM are synonymous with the ADC12DL3200EVM and ADC12DL2500EVM.
1
Introduction.............................................................................................................................................................................2
Documentation............................................................................................................................................................3
2 Equipment...............................................................................................................................................................................
2.2 Required Equipment..........................................................................................................................................................
3 Setup Procedure.....................................................................................................................................................................
3.1 Install the High Speed Data Converter (HSDC) Pro Software...........................................................................................
3.4 Connect the Power Supplies to the Boards (Power Off)....................................................................................................
3.5 Connect the Signal Generators to the EVM (*RF Outputs Disabled Until Directed)..........................................................
3.6 Turn On the TSW14DL3200EVM Power and Connect to the PC......................................................................................
3.7 Turn On the ADC12DLXX00EVM 5-V Power Supply and Connect to the PC...................................................................
3.9 Open the ADC12DLXX00EVM GUI and Program the ADC and Clocks............................................................................
3.10 Calibrate the ADC Device on the EVM..........................................................................................................................
3.11 Open the HSDC Software and Load the FPGA Image to the TSW14DL3200EVM.......................................................
Configuration............................................................................................................................................................13
4.1 Tab Organization..............................................................................................................................................................
4.2 Low-Level Control............................................................................................................................................................
A Troubleshooting the ADC12DL3200EVM...........................................................................................................................
History...................................................................................................................................................................16
Locations.............................................................................................................................................4
Setup.........................................................................................................................................................6
Figure 3-2. Configuration GUI: EVM Tab.....................................................................................................................................
Figure 3-3. Configuration GUI: Control Tab...............................................................................................................................
Figure 3-4. HSDC Pro GUI........................................................................................................................................................
Figure B-1. External CLK Configuration....................................................................................................................................
Table 4-1. Low-Level Controls...................................................................................................................................................
Table A-1. Troubleshooting........................................................................................................................................................
SLAU776A - MAY 2018 - REVISED DECEMBER 2023
Submit Document Feedback
ABSTRACT
Table of Contents
Summary.............................................................................................................4
Software...............................................................................................................................7
TSW14DL3200EVM.......................................................................................................................7
Outputs.........................................................................................................................8
Software.................................................................................................................12
Configurations.....................................................................................................................16
List of Figures
Tab..................................................................................................................13
List of Tables
Copyright © 2023 Texas Instruments Incorporated
Table of Contents
ADC12DLXX00 Evaluation Module
4
5
6
7
7
8
8
8
9
10
11
13
13
15
9
10
12
16
14
15
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments ADC12DL 00 Series
Summary of Contents for Texas Instruments ADC12DL 00 Series
-
Page 1: Table Of Contents
ABSTRACT The ADC12DLXX00 evaluation module (EVM) is used to evaluate the ADC12DL3200 and ADC12DL2500 analog-to-digital converters (ADC) from Texas Instruments. Throughout this document, the terms evaluation board, evaluation module, and EVM are synonymous with the ADC12DL3200EVM and ADC12DL2500EVM. Table of Contents Introduction.....................................2... -
Page 2: Introduction

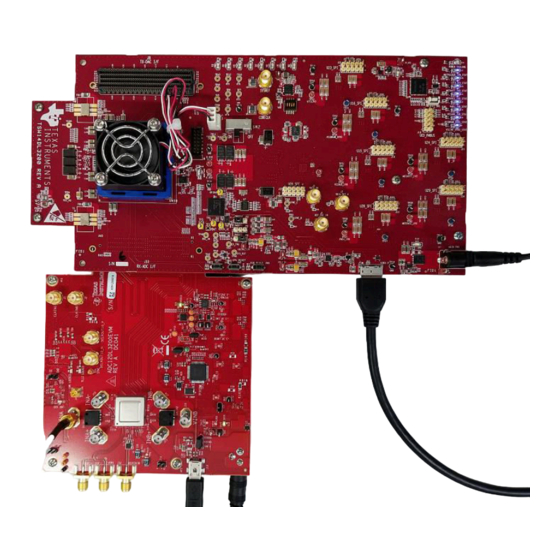

FT4232 (USB to Serial ADC12DL3200 Interface) LMX2582 (PLL/VCO ADC clock source) LM95233 (Temperature Monitor) 400 pin SEARAY (LVDS Data Connector) ADC12DLXX00 Evaluation Module SLAU776A – MAY 2018 – REVISED DECEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 3: Related Documentation
FTDI USB to Serial Driver Installation Manual TSW14DL3200EVM Operation Refer to the TSW14DL3200EVM User's Guide for configuration and status information. SLAU776A – MAY 2018 – REVISED DECEMBER 2023 ADC12DLXX00 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 4: Equipment
(Differential Inputs) (Bottom Side) Inputs) VINB VINA (Single-Ended Input) (Single-Ended Input) CLKIN0 (Optional 10-MHz External Reference) Figure 2-1. EVM Feature Locations ADC12DLXX00 Evaluation Module SLAU776A – MAY 2018 – REVISED DECEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 5: Required Equipment
One low-noise signal generator. TI recommends models similar to the analog input source. • A bandpass filter for the DEVCLK input. TI recommends a filter similar to the analog-input path filter. SLAU776A – MAY 2018 – REVISED DECEMBER 2023 ADC12DLXX00 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 6: Setup Procedure
Figure 3-1. EVM Test Setup Note The HSDC Pro software must be installed before connecting the TSW14DL3200EVM to the PC for the first time. ADC12DLXX00 Evaluation Module SLAU776A – MAY 2018 – REVISED DECEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 7: Install The High Speed Data Converter (Hsdc) Pro Software
ADC12DLXX00EVM. Providing the ADC12DLXX00EVM with 12-V may result in immediate damage. Leave the TSW14DL3200EVM power switch in the off position until directed later. SLAU776A – MAY 2018 – REVISED DECEMBER 2023 ADC12DLXX00 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 8: Connect The Signal Generators To The Evm (*Rf Outputs Disabled Until Directed)
Turn on the RF signal output of the signal generator connected to VIN. If external clocking is used, turn on the RF signal outputs connected to DEVCLK and LMKCLK. ADC12DLXX00 Evaluation Module SLAU776A – MAY 2018 – REVISED DECEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 9: Open The Adc12Dlxx00Evm Gui And Program The Adc And Clocks
ADC12DL2500 evm variant set Fs/Fclk to 2500 MHz selection. 4. Select nonDES_ForegroundCal operating mode. 5. Click Program Clocks and ADC. This action overwrites any previous device register settings. SLAU776A – MAY 2018 – REVISED DECEMBER 2023 ADC12DLXX00 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 10: Calibrate The Adc Device On The Evm
3. On the EVM tab, using the Sampling and Calbration Mode drop-down menu, select Foreground, Background, or Low Power Background calibration mode. ADC12DLXX00 Evaluation Module SLAU776A – MAY 2018 – REVISED DECEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 11: Open The Hsdc Software And Load The Fpga Image To The Tsw14Dl3200Evm
2500M if the ADC12DL2500 variant of the evm is used, or the desired output sample rate. This number must be equal to the actual sampling rate of the device, and must be updated if the sampling rate changes. SLAU776A – MAY 2018 – REVISED DECEMBER 2023 ADC12DLXX00 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 12: Capture Data Using The Hsdc Pro Software
Enter Device Output Sample Rate Click for Decimation and NCO Settings Enter Target Input Frequency Figure 3-4. HSDC Pro GUI ADC12DLXX00 Evaluation Module SLAU776A – MAY 2018 – REVISED DECEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 13: Device Configuration
Table 4-1 can be used to configure or read from the device. Figure 4-1. Configuration GUI: Low-Level View Tab SLAU776A – MAY 2018 – REVISED DECEMBER 2023 ADC12DLXX00 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 14: Table 4-1. Low-Level Controls
Perform a generic read or write command to the device shown in the Block drop-down menu using the read or write register buttons address and write data information ADC12DLXX00 Evaluation Module SLAU776A – MAY 2018 – REVISED DECEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 15: A Troubleshooting The Adc12Dl3200Evm
Verify that bandpass filters are used in the clock and input signal paths and that low-noise signal sources are used. SLAU776A – MAY 2018 – REVISED DECEMBER 2023 ADC12DLXX00 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 16: B Optional Adc12Dl3200Evm Configurations
Changed list item 3 following Figure 3-2 ......................• Changed the Open the HSDC Software and Load the FPGA Image to the TSW14DL3200EVM section..ADC12DLXX00 Evaluation Module SLAU776A – MAY 2018 – REVISED DECEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 17 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
