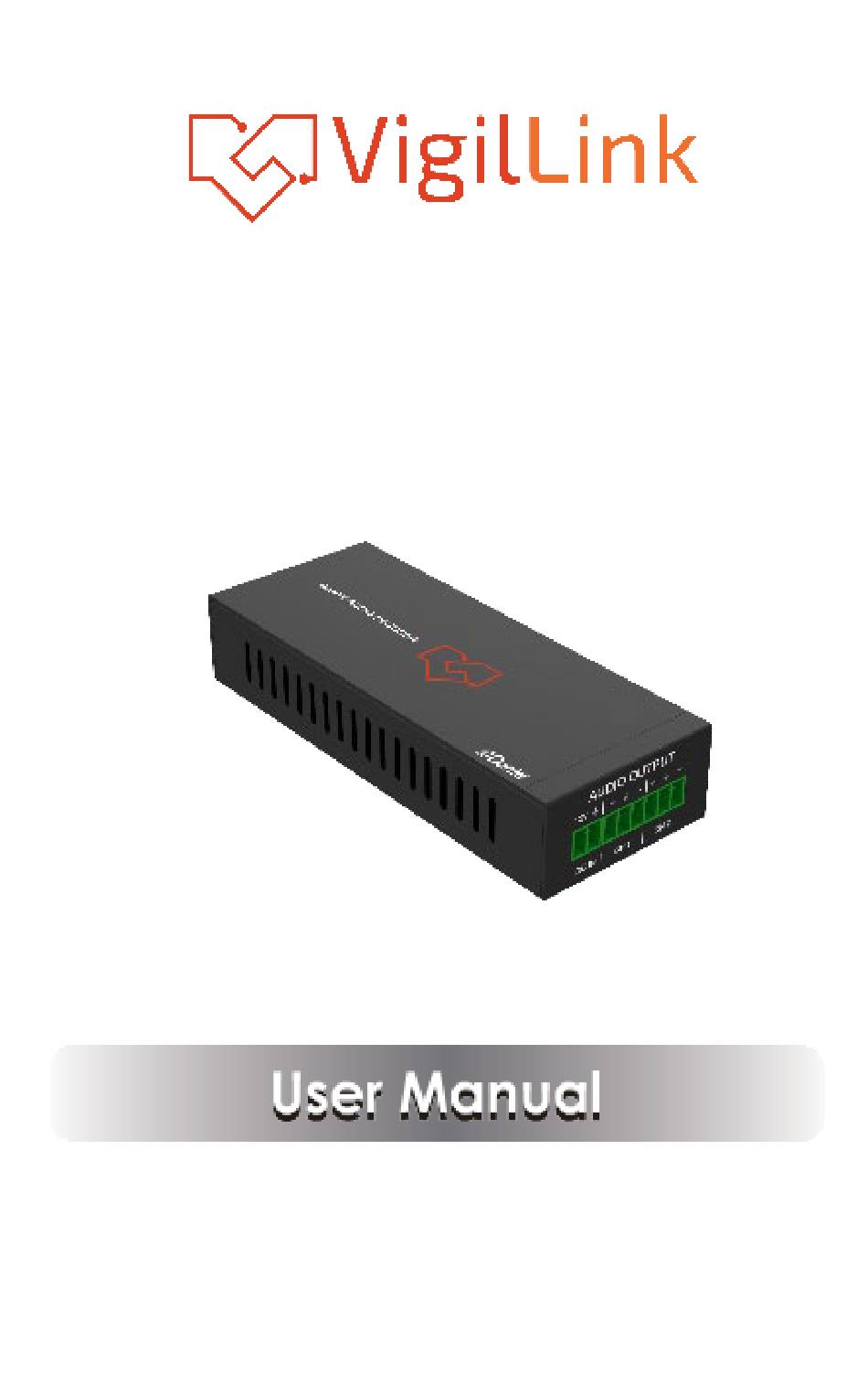

- Page 1 VLDT-AA2D Dante 2CH Analog Audio Decoder with PoE VER 1.02...
- Page 2 Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that electrical spikes may damage, surges, electric shock, lightning strikes, etc.
- Page 3 1. Introduction This Dante 2CH Analog Audio Decoder is an audio receiver based on the Dante Ultimo solution. It supports balanced/unbalanced audio output and 3- level gain adjustment. It receives audio signals from the transmitting end through a network (Dante), then decodes and outputs the audio as analog audio.
- Page 4 4. Specifications Technical Video Network 100M Bandwidth PCM 2.0 44.1kHz/48kHz/96kHz Audio Formats up to 24bit Transmission 100m (Cat 6/6A) Distance Control Method Dante Controller Connection 1x DANTE [RJ45 connector, PoE] Inputs 1x PWR [2-pin phoenix, 3.81mm] Output 1x AUD [6-pin phoenix, 3.81mm] Mechanical Housing Metal Enclosure...
- Page 5 5. Operation Controls and Functions Name Function Description DC 12V power input port. DC IN AUDIO Two-channel analog audio OUTPUT output ports, supporting (CH1/CH2) balanced and unbalanced audio. Dante digital audio input port. Connect to the Network Switch through the RJ45 line, supporting the PD power supply.
- Page 6 6. Application Example Trademarks Dante® is a registered trademark of Audinate Pty Ltd. All other trademarks are the property of their respective owners.
