VigilLink VLHA-H21DWM User Manual

40gbps hdmi audio downmix decoder
Hide thumbs Also See for VLHA-H21DWM:

Advertisement

Table of Contents

40Gbps HDMI Audio Downmix Decoder
VLHA-H21DWM
VER 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLHA-H21DWM and is the answer not in the manual?

Questions and answers

Related Manuals for VigilLink VLHA-H21DWM

Summary of Contents for VigilLink VLHA-H21DWM

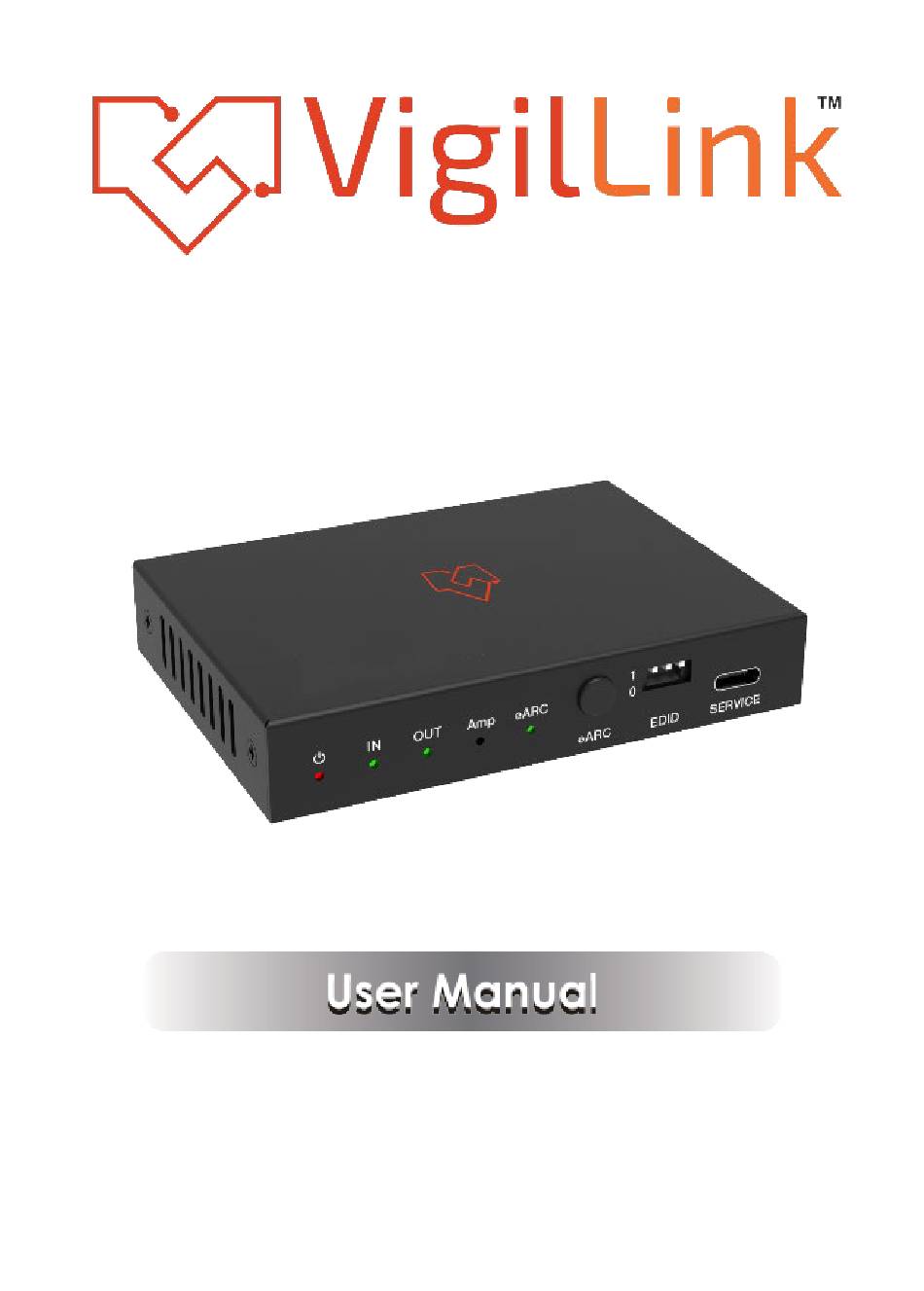

  • Page 1 40Gbps HDMI Audio Downmix Decoder VLHA-H21DWM VER 1.1...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Introduction

    Introduction Introducing our 48Gbps HDMI eARC Audio to Amplifier Adapter, meticulously crafted to extract audio signals from HDMI sources or ARC/eARC-enabled TVs for seamless HDMI audio transmission to your AV Receiver. With support for data rates up to 48Gbps, compliant with HDMI 2.1 and HDCP 2.3 standards, it effortlessly handles UHDTV 8K@60Hz resolutions.
  • Page 4 ☆ Support CEC control from TV to the source and amplifier ☆ Support CEC volume control from TV to the amplifier sound system ☆ Advanced EDID management ☆ Compact design for easy and flexible installation 2 / 6...

  • Page 5: Package Contents

    2. Package Contents ① 1 × 48Gbps HDMI eARC Audio to Amplifier Adapter ② 1 × 5V/2A Multinational Power Supply ③ 1 × User Manual 3. Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 48Gbps FRL and 18Gbps TMDS Video Resolution Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit Audio Latency...
  • Page 6 Connection Input 1 × Source IN [HDMI Type A, 19-pin female] 1 × TV(eARC) OUT [HDMI Type A, 19-pin female] Output 1 × Amp AUDIO OUT [HDMI Type A, 19-pin female] Control 1 × SERVICE [USB Type C, Update port] Mechanical Housing Metal Enclosure...

  • Page 7: Operation Controls And Functions

    4. Operation Controls and Functions Front Panel eARC eARC EDID SERVICE Name Function Description When the device is powered on, the red LED will be on. Power LED When the input signal is detected, the green LED will be on. IN LED When the OUT port connects to a TV, the green LED will be on.
  • Page 8 Rear Panel AUDIO OUT TV(eARC) Source DC 5V Function Description Name Source IN HDMI signal input port, connected to HDMI source device such as DVD, PS5 or 8K computer host with an HDMI cable. port HDMI signal output port, connected to TV (ARC/eARC) with an TV(eARC) HDMI cable.

  • Page 9: Application Example

    5. Application Example Amplifier Source DC 5V Power Supply 8K TV with eARC Note: When eARC function is turned on, the audio signal of Amplifier is the audio returned from 8K TV. When eARC function is turned off, the audio signal of Amplifier is from the HDMI input source.
