- Page 1 VL-DA2PE-1 Dante 2CH Analog Audio Encoder with POE VER 1.0...
- Page 2 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating, or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.

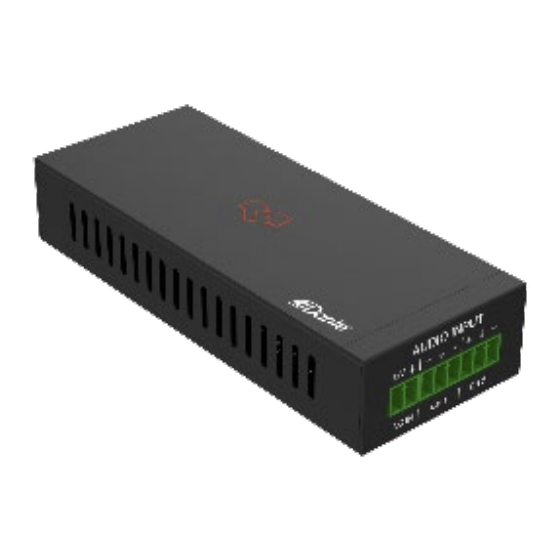

- Page 3 1. Introduction This Dante 2CH Analog Audio Encoder is an audio transmitter based on the Dante Ultimo solution. It supports balanced/unbalanced audio input and 3- level gain adjustment. It encodes audio signals and then transmits the audio to the receiving end through a network (Dante).
- Page 4 4. Specifications Technical Video Network 100M Bandwidth PCM 2.0 44.1kHz/48kHz/96kHz Audio Formats up to 24bit Transmission 100m (CAT6/6A) Distance Control Method Dante Controller Connection 1x PWR [2-pin phoenix, 3.81mm] Inputs 1x AUD [6-pin phoenix, 3.81mm] 1x DANTE [RJ45 connector, POE] Output Mechanical Housing...
- Page 5 5. Operation Controls and Functions Name Function Description DC IN DC 12V power input port. AUDIO 2 channel analog audio input INPUT ports, supporting balanced and unbalanced audio. (CH1/CH2) Dante digital audio output port. Connect to the Network Switch through the RJ45 line, supporting PD power supply.
- Page 6 6. Application Example Trademarks Dante® is a registered trademark of Audinate Pty Ltd. All other trademarks are the property of their respective owners.
