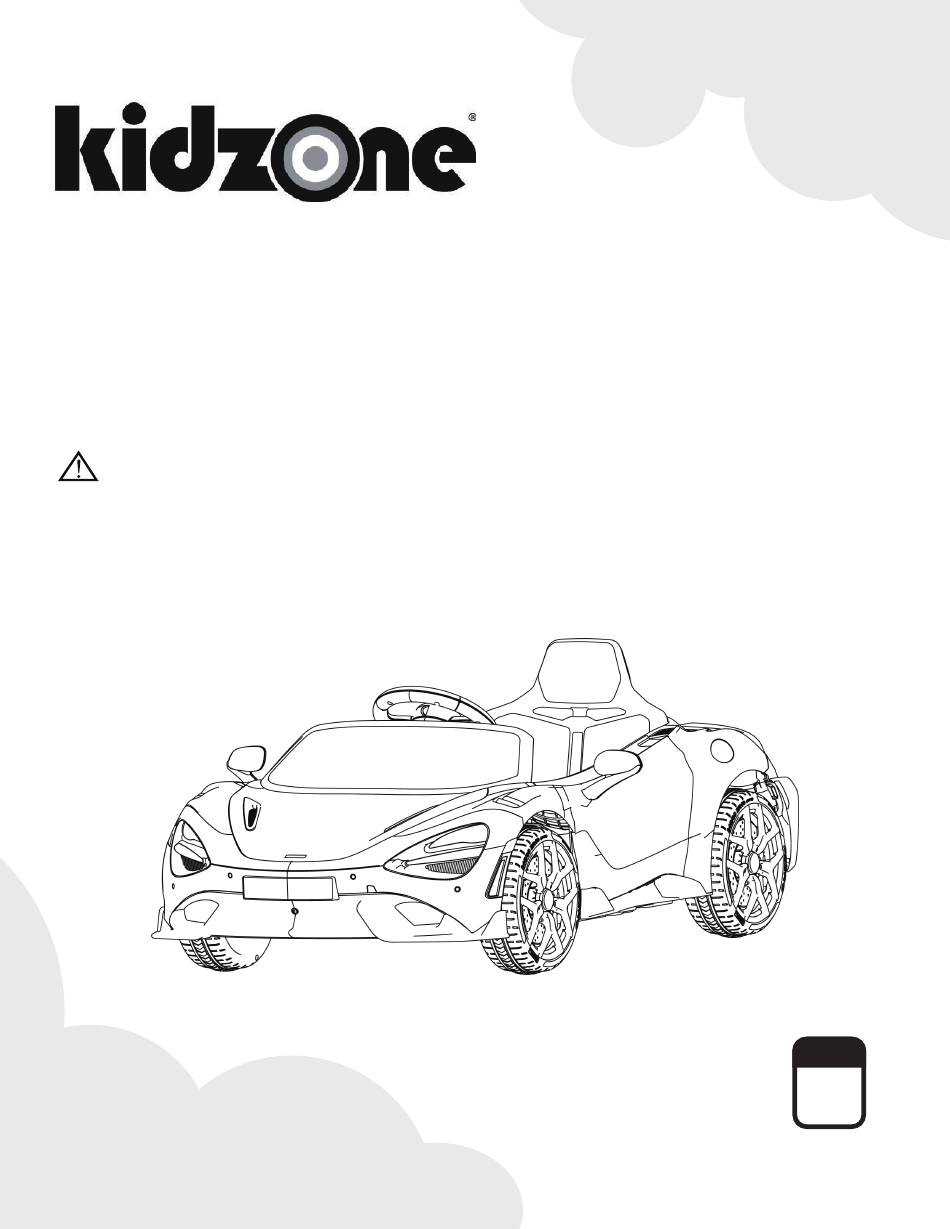

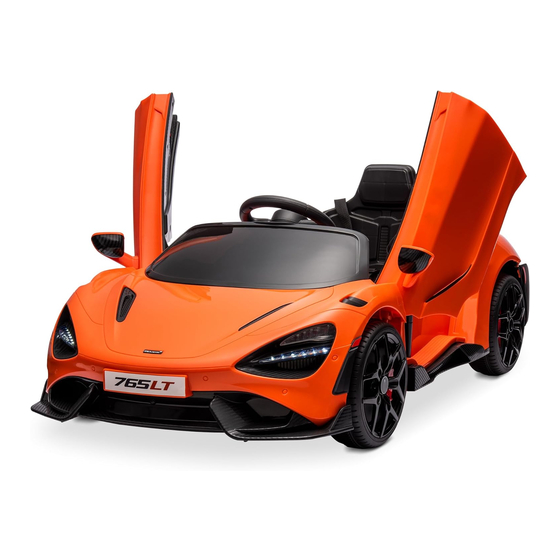

- Page 1 Licensed McLaren 765LT Ride ON (12V) 060-ROT-33L Owner’s Manual *Product appearance and colors may vary from the photo. WARNING： This product should only be assembled by an adult. Maximum User Weight : 55 lbs / 25 kg For Age 37-72 Months www.kidzonetoys.com...
- Page 2 Little ones have a blast riding our toys at home, in the park, or on the sidewalk. At Kidzone, our goal is to make playtime more fun for kiddos, while ensuring comfort and safety. Our ride-ons help create joyful moments for the entire family that’ll turn into forever memories!
-
Page 3: Table Of Contents
Table of Contents Safety Instruction Product Speci cation Parts and Accessories Assembly Instruction User’s Instruction User’s Instruction Media Player User’s Instruction Remote Control User’s Instruction Charging Care and Maintenance Troubleshooting Warrenty Information... -
Page 4: Safety Instruction
Safety Instruction When using electrical product, basic safety precaution should always be followed including the following: Failure to follow the safety instructions may result in property damage, serious injury or death. WARNING DISCLAIMER • Manufacturer and seller expressly disclaim any and all liability for personal injury, property damage or losses, whether direct, indirect, or incidental, resulting from the incorrect attachment, improper use, BASIC SAFETY •... - Page 5 ver. 09212023 CAUTION Failure to follow these instruction may result in permanent damage to the product or parts. CELL BATTERY AND RECHARGEABLE BATTERY HANDLING Do not mix old and new batteries. • • Do not mix alkaline, standard (carbon-zinc), or re-chargeable batteries. Permanent damage to the battery may occur if it is completely drained.
- Page 6 Model no. 060-ROT-33L Battery 12 v 4.5 Lead-acid Battery x1 Charger Input AC 120 V, 0.25 A, 60HZ Charger output DC 12 V 0.5 A Battery Charge Time 8 - 12 hours Dimension 44.5” x 26.8” x 17.3” (113 cm x 68 cm x 44 cm) Speed 1.86 - 3.11 mph (3 - 5 km/h) Suitable Age...
-
Page 7: Parts And Accessories
ver. 09212023 Parts and Accessories Vehicle Body Steering Wheel Windshield Side Mirror x1 Pair Washer Seat (pre-installed on axle) Motor (pre-installed on axle) Wheel Wheel Cover Hubcap... -
Page 8: Assembly Instruction
Assembly Instruction WARNING This product should only be assembled by an adult. Children can be harmed by small parts, sharp edges and points or by electrical items. Care should be taken when unpacking and assembling the vehicle. Tools required (not included) (I) Washer (I) Washer (J) Nut... - Page 9 ver. 09212023 Assembly Instruction this two remain here, not need removed (I) Washer (I) Washer (I) Washer (I) Washer (J) Nut (J) Nut Front Axle (I) Washer (I) Washer (I) Washer (J) Nut (F) Hubcap (E) Wheel (K) Wheel Cover •...
- Page 10 Assembly Instruction (G) Steering Wheel • Connect the wires from the steering wheel (G) to the vehicle, and then insert the steering wheel into the steering column. (B) Windshield •...
- Page 11 ver. 09212023 Assembly Instruction • Connect the motor cables to the vehicle control unit, which is located under the seat well. • Connect the battery cable to the vehicle control unit. ATTENTION This product is packed with the battery disconnected. Connect the battery before use.
- Page 12 Assembly Instruction (C) Seat • Remove the pre-installed screw from the seat well. • Align and push the seat (C) to the vehicle body. • Secure the seat with the screw.
- Page 13 ver. 09212023 Assembly Instruction (H) Side Mirror • Insert the side mirrors (H) to the sides of the vehicle body.
-
Page 14: User's Instruction
User’s Instruction Foward / Reverse Button Power Button Light Button Media Player Foot Pedal Control the vehicle Power Button Press the power button to turn ON or OFF the vehicle. Forward / Reverse Switch Press the switch to select the moving directions of the vehicle. Light Switch Press the switch to turn ON or OFF the light. -
Page 15: User's Instruction Media Player
Press the button to make a horn sound（There are two horn buttons on the steering wheel bottom). Bluetooth connection To connect your mobile device to the vehicle, turn on the Bluetooth and select "Kidzone Ride on". You can hear a voice message of connected successfully from vehicle after pairing. Music can be played from the vehicle speaker according to the user preferences. -
Page 16: User's Instruction Remote Control
User Instruction (Remote Control) Speed Button Emergency Brake Forward Right Turn Reverse Left Turn Speed Indicator Using the remote control The remote control should only be used by an adult. Pairing the remote control • Insert batteries into the remote control. (see page 17) •... - Page 17 ver. 09212023 User Instruction (Remote Control) + 1.5V AAA/LR03 - - 1.5V AAA/LR03 + Changing the remote control battery The remote control requires 2 AAA 1.5v batteries. (not included) • Remove the cover on the back side of the remote control. •...
-
Page 18: User's Instruction Charging
User Instruction (Charging) WARNING The battery should only be charged by an adult. Charging the battery 1. Connect the charger to the charging port. 2. Plug the charger into a wall outlet. The battery will start charging. • The vehicle must be OFF when charging. •... -
Page 19: Care And Maintenance
ver. 09212023 Care and Maintenance • Check the product regularly and make sure there is no missing or loose parts. Re-tighten any loose parts if necessary. • Make sure there is no cracked or broken plastic parts. • Store the product away from heat source when not using, cover it with a tarp and away from wet weather. -
Page 20: Troubleshooting
Troubleshooting Problem Possible Reason Solution Low Battery Fully charge the battery Fuse will reset automatically after Fuse Protection Vehicle does not move Disconnected / Badly connected Reconnect the battery battery Failed battery / motor Contact Customer Service Low Battery Fully charge the battery Vehicle does not run very long Old / Damaged Battery Replace battery if necessary... - Page 21 ver. 09212023 Troubleshooting Problem Possible Reason Solution Check if the battery connectors Poor wire connection Contact Customer service if Vehicle needs a push to go necessary forward “Dead spot” on motor Contact customer service Loud grinding sound or clicking Damaged motor or gear box Contact customer service sound from the motor or gear box Disconnected / Badly connected...
- Page 22 It is the retailer’s responsibility consumer, or other parties not authorized by to contact KIDZONE with a claim. We will not KIDZONE will void this warranty. handle claims from consumers directly; all 3.
- Page 23 Importer Address: City of Industry, CA 91748 United States Importer Tel: 1-800-946-6151 © All copyright of this document belongs to KIDZONE. This document may not be printed, translated, reproduced, or distributed in whole or in part without written permission from KIDZONE.
