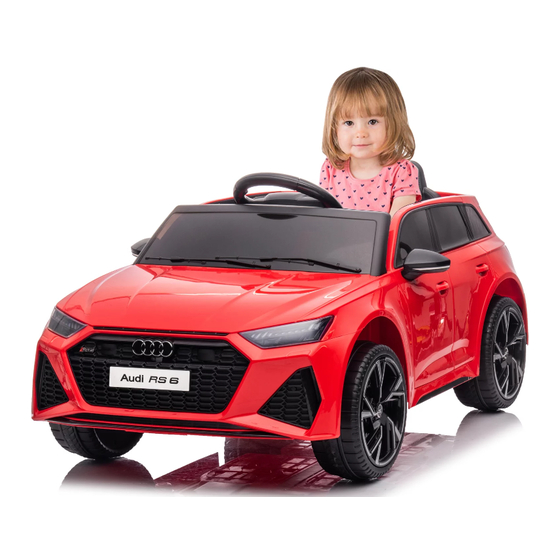

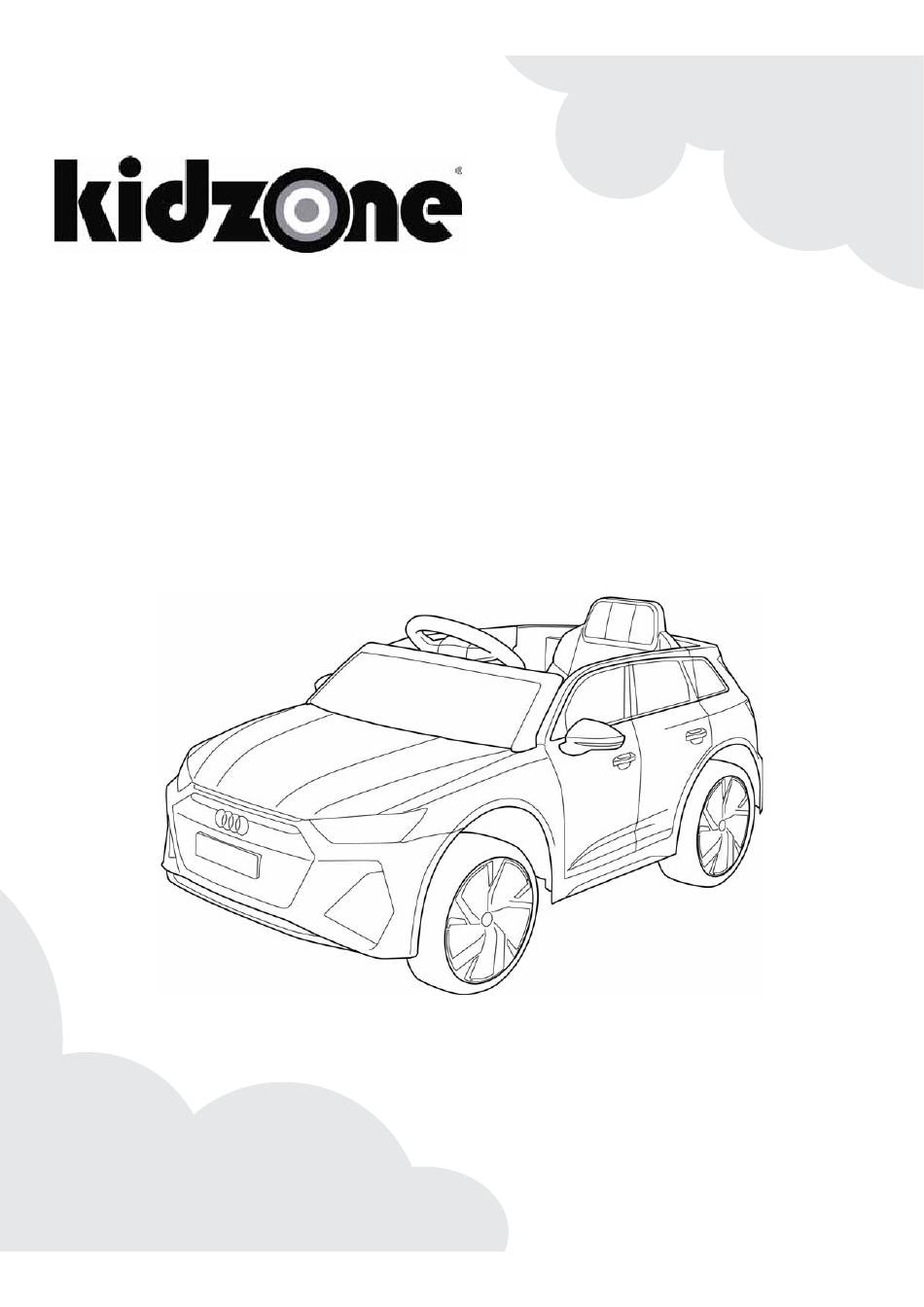

- Page 1 Licensed Audi RS6 Ride ON (12V) 060-ROT-32L Owner’s Manual *Product appearance and colors may vary from the photo. www.kidzonetoys.com...
- Page 2 Little ones have a blast riding our toys at home, in the park, or on the sidewalk. At Kidzone, our goal is to make playtime more fun for kiddos, while ensuring comfort and safety. Our ride-ons help create joyful moments for the entire family that’ll turn into forever memories!
-
Page 3: Table Of Contents
Table of Contents Safety Instruction Product Specification Parts and Accessories Assembly Instruction User’s Instruction User’s Instruction Media Player User’s Instruction Remote Control User’s Instruction Charging Care and Maintenance Troubleshooting Warrenty Information... -
Page 4: Safety Instruction
Safety Instruction When using electrical product, basic safety precaution should always be followed including the following: Failure to follow the safety instructions may result in property damage, serious injury or death. WARNING DISCLAIMER • Manufacturer and seller expressly disclaim any and all liability for personal injury, property damage or losses, whether direct, indirect, or incidental, resulting from the incorrect attachment, improper use, BASIC SAFETY •... - Page 5 ver. 06072023 CAUTION Failure to follow these instruction may result in permanent damage to the product or parts. CELL BATTERY AND RECHARGEABLE BATTERY HANDLING • Do not mix old and new batteries. • Do not mix alkaline, standard (carbon-zinc), or re-chargeable batteries. •...
- Page 6 Model no. 060-ROT-32L Battery 12 v 4.5 Ah x1 Charger Input AC 120 v , 60 Hz Charger output 12 v 500 mA Batter Charge Time 8 - 12 hours Speed 1.86 - 3.11 mph (3 - 5 km/h) Suitable Age 37 - 72 months Maximum User Weight 66 lb / 30 kg...
-
Page 7: Parts And Accessories
ver. 06072023 Parts and Accessories A. Car Body B. Windshield C. Seat D. Wheel E. Wheel Cap F. Rear Mirror G. Steering Wheel H. Charger 1x Set L. Washer I. Screw J. Remote Control K. M10 Spanner (4 pcs pre-installed on the front axle, 2 pcs pre-installed on the rear axle) M. -
Page 8: Assembly Instruction
Assembly Instruction WARNING This product should only be assembled by an adult. Children can be harmed by small parts, sharp edges and points or by electrical items. Care should be taken when unpacking and assembling the vehicle. Tools required (not included) (D) Wheel (D) Wheel Motor... - Page 9 ver. 06072023 Assembly Instruction (G) Steering Wheel • Connect the wire connector from the steering wheel (G) to that from the steering column. • Push the steering wheel to the steering column until you hear it clicks to the groove. •...
- Page 10 Assembly Instruction (C) Seat • screws on both sides of the seat to the vehicle body. (B) Windshield •...
- Page 11 ver. 06072023 Assembly Instruction (F) Side Mirror • Attach side mirror (F) to the side of the vehicle. • Repeat the same step for the other side.
-
Page 12: User's Instruction
User’s Instruction Horn Button / Next track button Light Switch Forward / Reverse Switch Media Player Power Button Foot Padel Horn Button Control the vehicle Power Button Press the power button to turn ON or OFF the vehicle. Forward / Reverse Switch Press the switch to select the moving directions of the vehicle. -
Page 13: User's Instruction Media Player
To connect your mobile device to the vehicle,press the bluetooth button on the media player and turn on the bluetooth of mobile device and select "Kidzone Ride-On". You can hear a voice message of connected successfully after pairing. Music can be played from the vehicle speaker according to... - Page 14 YJ 1603BT 12V FM English Version External U disk card Current power indicator mode key Tap music / next Short press to increase volume in turn / Short press to turn down the volume in turn / long press to increase volume quickly long press to turn down the volume quickly External horn port Power port...
-
Page 15: User's Instruction Remote Control
User Instruction (Remote Control) Speed Button Emergency Brake Forward Right Turn Reverse Left Turn Speed Indicator Using the remote control The remote control should only be used by an adult. Pairing the remote control • Insert batteries into the remote control. (see page 15) •... - Page 16 ver. 06072023 User Instruction (Remote Control) AAA 1.5V AAA 1.5V Changing the remote control battery The remote control requires 2 AAA 1.5v batteries. (not included) • Remove the cover on the back side of the remote control. • Replace old batteries with 2 new AAA 1.5v batteries in correct polarity. •...
-
Page 17: User's Instruction Charging
User Instruction (Charging) WARNING The battery should only be charged by an adult. Charging the battery 1. Connect the charger to the charging port. 2. Plug the charger into a wall outlet. The battery will start charging. • The vehicle must be OFF when charging. •... -
Page 18: Care And Maintenance
ver. 06072023 Care and Maintenance • Check the product regularly and make sure there is no missing or loose parts. Re-tighten any loose parts if necessary. • Make sure there is no cracked or broken plastic parts. • Store the product away from heat source when not using, cover it with a tarp and away from wet weather. -
Page 19: Troubleshooting
Troubleshooting Problem Possible Reason Solution Low Battery Fully charge the battery Fuse will reset automatically after Fuse Protection turning off within 20 seconds Vehicle does not move Disconnected / Badly connected Reconnect the battery battery Failed battery / motor Contact Customer Service Low Battery Fully charge the battery Vehicle does not run very long... - Page 20 ver. 06072023 Troubleshooting Problem Possible Reason Solution Check if the battery connectors Poor wire connection Contact Customer service if Vehicle needs a push to go necessary forward “Dead spot” on motor Contact customer service Loud grinding sound or clicking Damaged motor or gear box Contact customer service sound from the motor or gear box Disconnected / Badly connected...
- Page 21 It is the retailer’s responsibility consumer, or other parties not authorized by to contact KIDZONE with a claim. We will not KIDZONE will void this warranty. handle claims from consumers directly; all 3.
- Page 22 ver. 06072023 Controller: Model: JR1602FCC FCC ID: 2AWOBJR1602 Vehicle: Model: 060-ROT-32L FCC ID: 2BBEC-YJ-1603BTN This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 24 06072023 Enjoy ! © All copyright of this document belongs to KIDZONE. This document may not be printed, translated, reproduced, or distributed in whole or in part without written permission from KIDZONE.
- Page 25 www.kidzonetoys.com...
