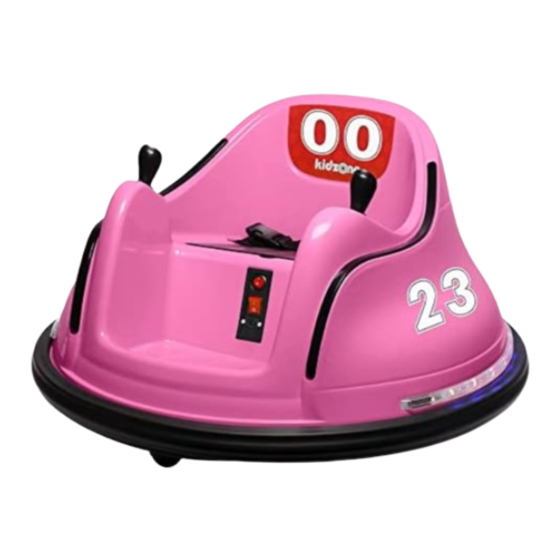

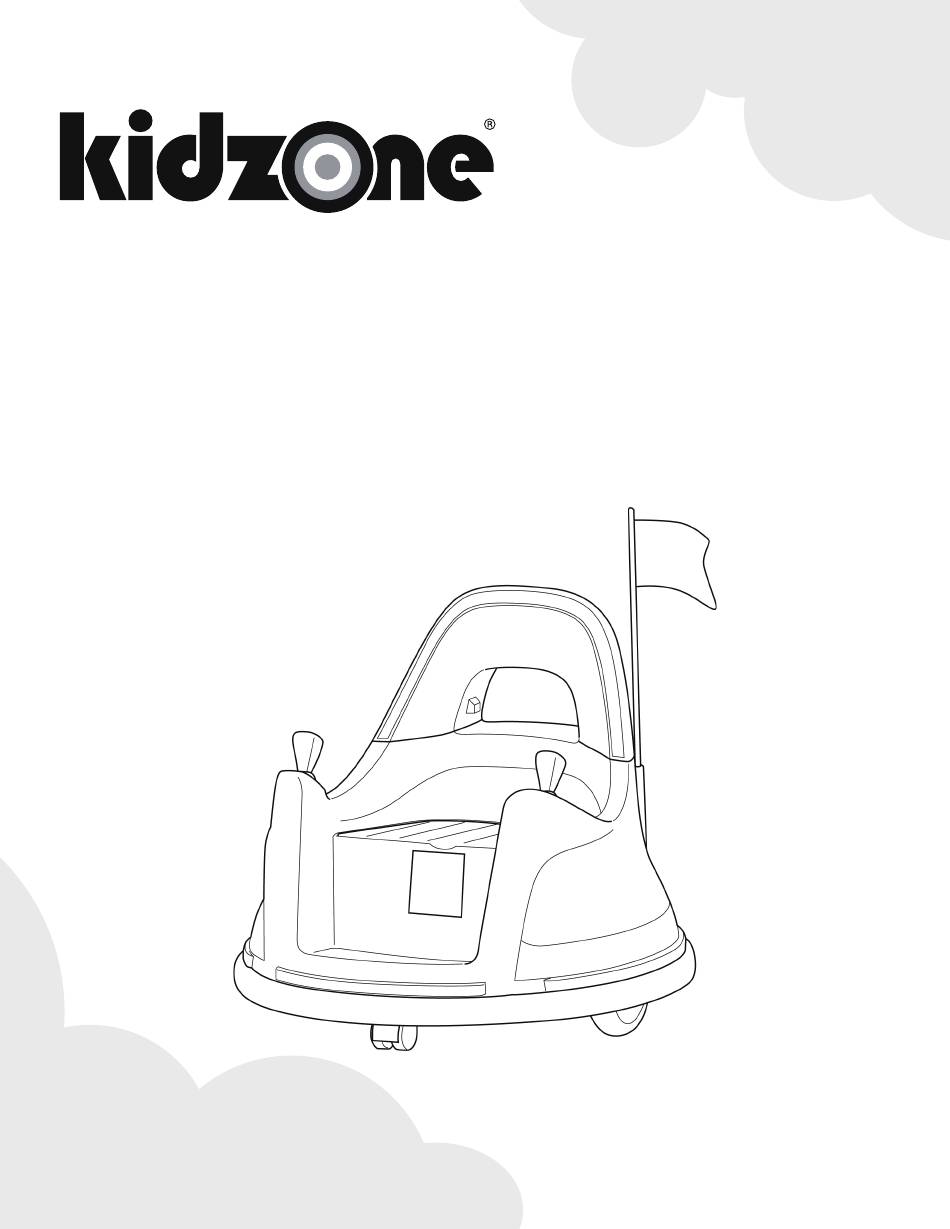

- Page 1 360 Rotation Bumper Car (12V) 2 Speed (Kidzone App) 060-ROT-16 Owner’s Manual *Product appearance and colors may vary from the photo. www.kidzonetoys.com...
- Page 2 Little ones have a blast riding our toys at home, in the park, or on the sidewalk. At Kidzone, our goal is to make playtime more fun for kiddos, while ensuring comfort and safety. Our ride-ons help create joyful moments for the entire family that’ll turn into forever memories!
-
Page 3: Table Of Contents
Table of Contents Safety Instruction Product Speci cation Parts and Accessories Assembly Instruction User’s Instruction User’s Instruction Control Panel User’s Instruction Remote Control User’s Instruction Charging Care and Maintenance Troubleshooting Warrenty Information... -
Page 4: Safety Instruction
Safety Instruction When using electrical product, basic safety precaution should always be followed including the following: Failure to follow the safety instructions may result in property damage, serious injury or death. WARNING DISCLAIMER • Manufacturer and seller expressly disclaim any and all liability for personal injury, property damage or losses, whether direct, indirect, or incidental, resulting from the incorrect attachment, improper use, BASIC SAFETY •... - Page 5 ver. 04282023 CAUTION Failure to follow these instruction may result in permanent damage to the product or parts. CELL BATTERY AND RECHARGEABLE BATTERY HANDLING Do not mix old and new batteries. • • Do not mix alkaline, standard (carbon-zinc), or re-chargeable batteries. Permanent damage to the battery may occur if it is completely drained.
- Page 6 Model no. 060-ROT-16 Battery 12 v Charger output DC 12 v Batter Charge Time 8 - 12 hours Speed 0.75 - 1.3 mph (1.2 - 2.1 km/h) Suitable Age 18 - 72 months Maximum User Weight 66 lb / 30 kg...
-
Page 7: Parts And Accessories
ver. 04282023 Parts and Accessories A. Car Body B. Backrest C. Joystick & cap D. M3.5 x 20 Screws E. Remote Control F. Charger... -
Page 8: Assembly Instruction
Assembly Instruction WARNING This product should only be assembled by an adult. Children can be harmed by small parts, sharp edges and points or by electrical items. Care should be taken when unpacking and assembling the vehicle. Tools required (not included) (B) Backrest (A) Car Body •... - Page 9 ver. 04282023 Assembly Instruction (C) Joystick & Cap (D) M3.5 x 20 Screws • Attach the joysticks to the car body with the provided screws. • Slip the joystick cap on top of the joystick.
- Page 10 Assembly Instruction • Temporary remove the seat and connect the electrical wire from the car to the battery, then replace the seat in its original position. ATTENTION This product is packed with the battery disconnected. Connect the battery before use.
-
Page 11: User's Instruction
ver. 04282023 User’s Instruction Joystick Control the vehicle Control Panel Control Panel Control the functions of the car. (See page 12 for detail instruction) Joystick Push / Pull the joysticks to move the car forward, backward, or rotate the car. Forward Push both control sticks forward at the same time. -
Page 12: User's Instruction Control Panel
User’s Instruction (Control Panel) Speed Button Control Switch Remote Indicator Power Button Joystick Indicator High Speed Indicator Low Speed Indicator Upper Light Button Bluetooth Indicator Bottom Light Button Charging Port Power Indicator Control Panel Power Button Press the power button to ON or OFF the vehicle. Speed Button Press the speed button to switch between high and low speed. - Page 13 ver. 04282023 User Instruction (Control Panel) Upper Light Button Press the upper light button to turn on the light on the back rest. Bottom Light Button Press the bottom light button to turn on the light on the car body. Power Indicator Indicator shows the estimate power level of the battery.
-
Page 14: User's Instruction Remote Control
User Instruction (Remote Control) Speed Button Speed Indicator Emergency Brake Forward Reverse Rotate Right Rotate Left Pairing Button Using the remote control The remote control should only be used by an adult. Pairing the remote control • Insert batteries into the remote control. (see page 15) •... - Page 15 ver. 04282023 User Instruction (Remote Control) Changing the remote control battery The remote control requires 2 AAA 1.5v batteries. (not included) • Remove the cover on the back side of the remote control. • Replace old batteries with 2 new AAA 1.5v batteries in correct polarity. •...
-
Page 16: User's Instruction Charging
User Instruction (Charging) WARNING The battery should only be charged by an adult. Charging the battery 1. Connect the charger to the charging port. Plug the charger into a wall outlet. The battery will start charging. The charger indicator turns red when charging, turns green after charging completed. •... -
Page 17: Care And Maintenance
ver. 04282023 Care and Maintenance • Check the product regularly and make sure there is no missing or loose parts. Re-tighten any loose parts if necessary. • Make sure there is no cracked or broken plastic parts. • Store the product away from heat source when not using, cover it with a tarp and away from wet weather. -
Page 18: Troubleshooting
Troubleshooting Problem Possible Reason Solution Low Battery Fully charge the battery Fuse will reset automatically in Fuse Protection about 10-15 seconds Vehicle does not move Disconnected / Badly connected Reconnect the battery battery Failed battery / engine Contact Customer Service Low Battery Fully charge the battery Vehicle does not run very long... - Page 19 ver. 04282023 Troubleshooting Problem Possible Reason Solution Check if the battery connectors Poor wire connection Contact Customer service if Vehicle needs a push to go necessary forward “Dead spot” on motor Contact customer service Loud grinding sound or clicking Damaged motor or gear box Contact customer service sound from the motor or gear box Disconnected / Badly connected...
- Page 20 It is the retailer’s responsibility consumer, or other parties not authorized by to contact KIDZONE with a claim. We will not KIDZONE will void this warranty. handle claims from consumers directly; all 3.
- Page 21 ver. 04282023 Controller: Model: TX19 FCC ID: 2AJ2H-WYTX19 Vehicle: Model: 060-ROT-16 FCC ID:2BBEC060-ROT-16 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 23 04282023 Enjoy ! © All copyright of this document belongs to KIDZONE. This document may not be printed, translated, reproduced, or distributed in whole or in part without written permission from KIDZONE.
- Page 24 www.kidzonetoys.com...
