Prepping the Front Jack Bracket Installation

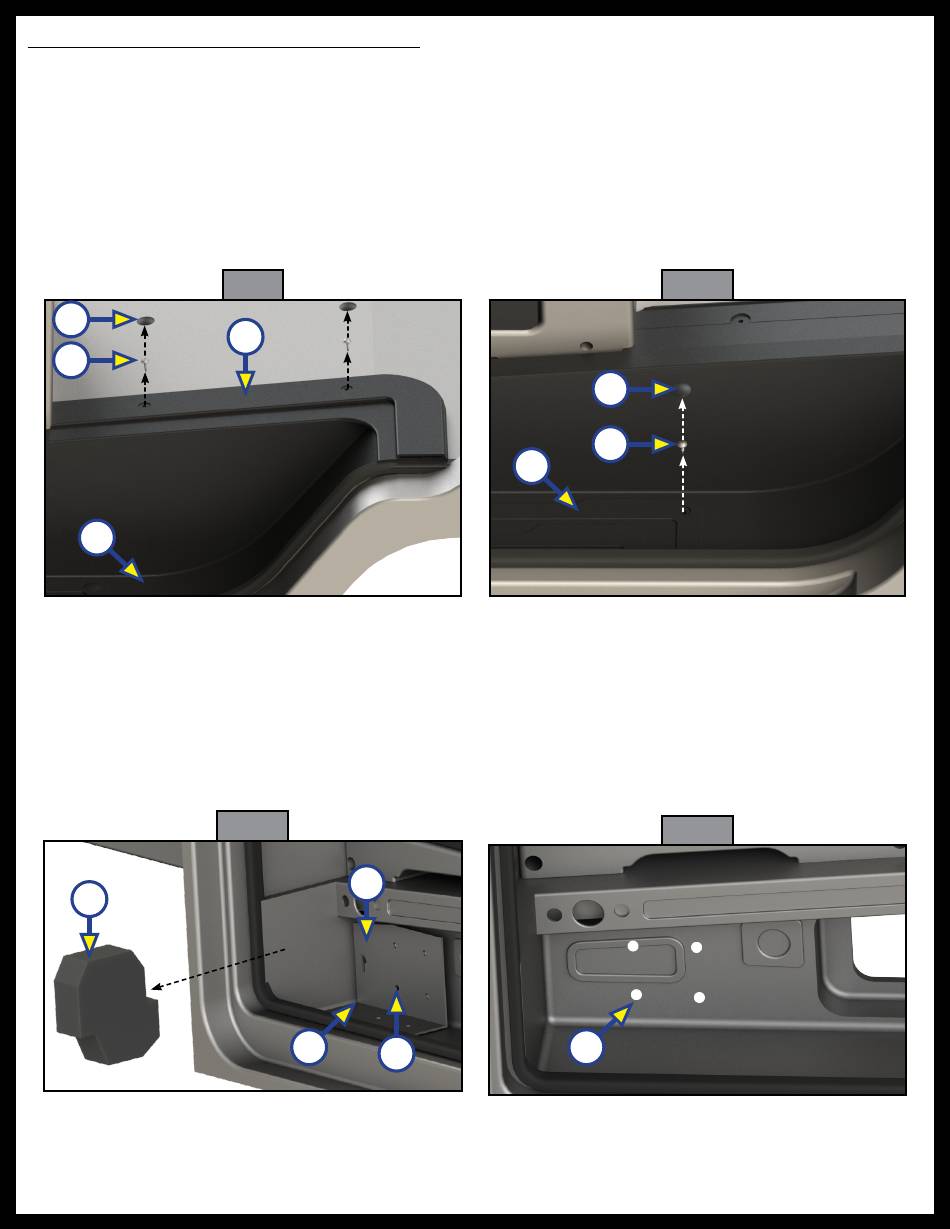

1. Starting with the passenger side, remove the black molded plastic step well cover (Fig. 9D) in the cab
of the coach.
A. Remove the top trim piece (Fig. 9C) located on the top of the step well area (Fig. 9A). There are two
caps (Fig. 9C) and torx screws (Fig. 9D). Use a flathead screwdriver/knife to pry up the caps and a
T-25 torx bit to remove the screws, set trim, caps and hardware aside to re-install.
B. There are three tapered caps (Fig. 10A) in the bottom of the step well area (Fig.10C). Use a flathead
screwdriver/knife to remove them by pulling outward and up to slide the caps out. Remove the
screws (Fig. 10B) black molded plastic step well cover and caps from the chassis frame and set
aside to re-install.
A
B
D
2. Remove any foam material (Fig. 11A) at the side of the stepwell that might impede installation and set
aside to reinstall.
3. Place the drill template (Fig. 11B) on the stepwell making sure the corner of the template (Fig. 11C)
is in the rear corner of the step well and the bottom of the template is setting flat against the floor
of the step. Mark the four holes (Fig. 11D).
4. Remove the template and drill the four holes with a 9/16" drill bit.
5. Apply white spray paint to the four holes (Fig. 12A), let dry.
6. Repeat steps 1-5 for the driver's side, flipping the template for the driver's side.
A
Rev: 10.23.23
Fig. 9
C
Fig. 11
B
C
D
A
B
C
A
Page 9
Fig. 10
Fig. 12
