Hydraulic Power Unit Installation

NOTE: The location where the hydraulic power unit will be installed should be as near center on the coach
as possible. Install the hydraulic power unit in accordance with RVIA Gas Codes, since the hydraulic
power unit connections are not spark proof.

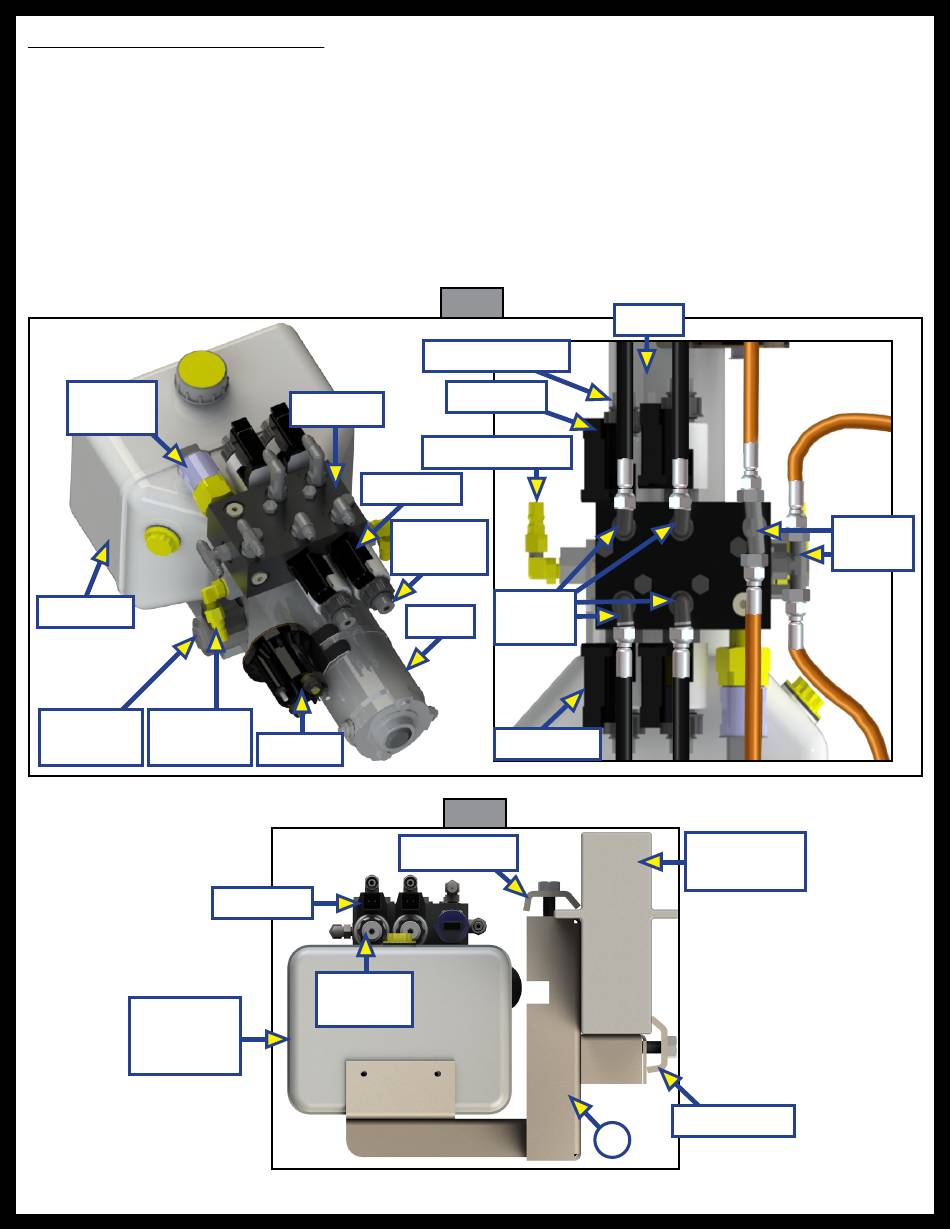

2. Identify the hydraulic power unit mounting location. This will determine the orientation of the
hydraulic fittings (Fig. 6). For this manual, the hydraulic power unit is mounted on the inside driver's
side frame rail, behind the fuel tank.
3. Attach hydraulic power unit bracket assembly (Fig. 7A) to the coach frame using the 7/16"-14 x 4 1/2"
bolts on the outer clamp and the 7/16" - 14 x 2" bolts on the inner clamp (Fig. 7).
4. Bolt the hydraulic power unit to the bracket assembly using the provided manufacturer's screws.
