LED Touch Panel / Controller Installation

Images used in this document are for reference only when assembling, installing and/or operating this
product. Actual appearance of provided and/or purchased parts and assemblies may differ.

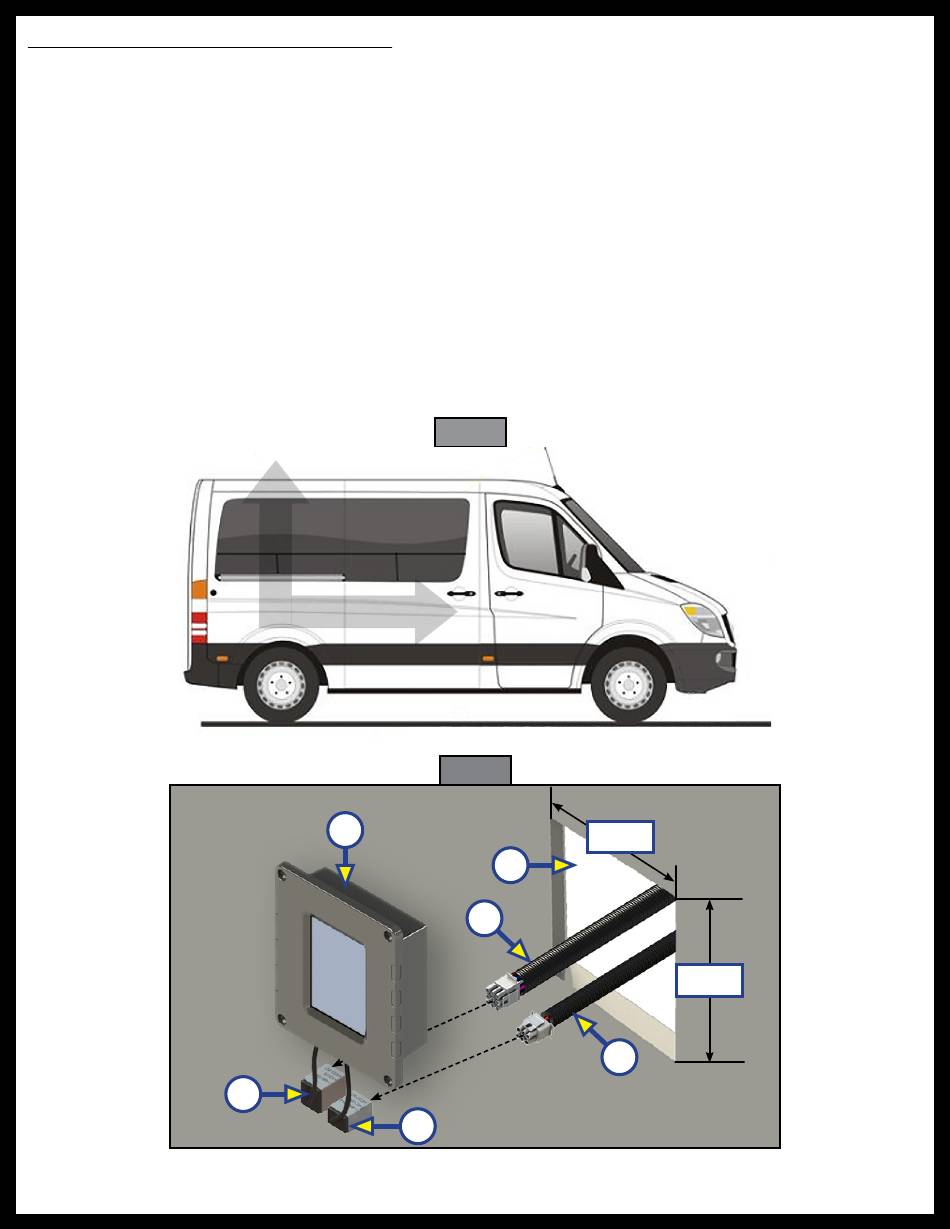

The front panel orientation of the touch panel / controller must be either in an X axis (roadside/curbside)
orientation or Y axis (front/rear) orientation (Fig. 20). It must be placed on a vertical surface. The front panel
screen is splash resistant but is not water proof and should be installed inside of the coach.
1. In the designated mounting location, cut a hole (on a vertical surface) (Fig. 21B), 4 1/4" square, for the
bezel of the LED touch panel/controller (Fig. 21A) to fit into.
2. Attach the LED touch panel/controller 9 pin harness (Fig. 21C) to the 9 pin power unit harness
(Fig. 27D) and feed through the pre-cut hole (Fig. 21A), running the opposite end of the wire harness
to the hydraulic power unit. See the Wiring Diagram section, Figure 47.
3. Attach the LED touch panel/controller 6 pin harness (Fig. 21E) to the 6 pin chassis harness
(Fig. 21F) and feed through the pre-cut hole (Fig. 21A), running the opposite end of the chassis
wire harness to the ignition positive power source and the parking brake ground. See the Wiring
Diagram section, Figure 47.
