Prior to Operation

The leveling system shall only be operated under the following conditions:
1. The coach is parked on a reasonably level surface, engine running.
2. The coach "parking brake" is engaged.
3. The coach transmission should be in the park position.
4. Be sure to keep hands and other body parts clear of fluid leaks. Oil leaks in the Lippert Leveling System
may be under high pressure and can cause serious skin penetrating injuries.
5. Never lift the coach completely off the ground. Lifting the coach so the wheels are not touching
ground will create an unstable and unsafe condition.
Lifting all wheels off the ground may result in serious personal injury or death.

LED Touchpad Controller Operation

1. Figure 23 is the default screen when coach ignition is ON and assigned to the "Home" icon (Fig. 23A).
The LED Touchpad Controller is only ON while the coach ignition is ON, no operation of leveling will be
allowed without ignition source. Parking Brake MUST be engaged for the system to operate.
2. Figure 24 is assigned to "menu" icon (Fig. 24A).
A. (Fig. 24B) MANUAL MODE ability to extend jacks in pairs.
B. (Fig. 24C) CONNECT APP with phone Bluetooth on, click button to search on phone for "Auto
Level, Titan" or similar.
C. Select the "menu" icon (Fig. 24A) and then CALIBRATION icon (Fig. 24D) is a required step to
program the control's orientation and define a level plane. Initial calibration will be set by OEM but
operator may perform calibration again at a later date to ensure the system is at a level plane.
D. (Fig. 24E) JACK LIGHTS on/off button, turns on all LED lights located on the front and rear
crossbars, close to each of the jacks. Lights are optional and this button may not be used.
A
B
C
Rev: 10.23.23

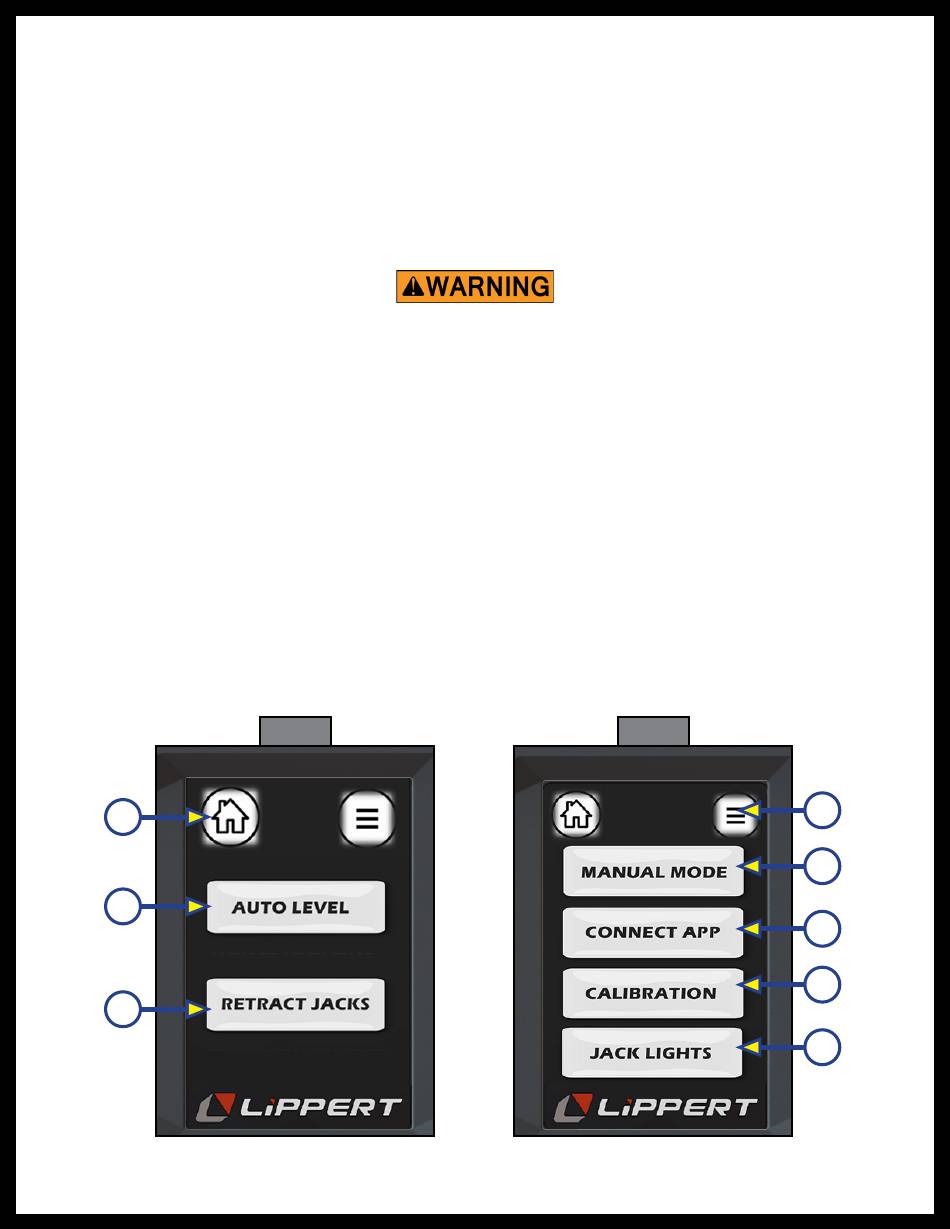

Fig. 23
Home Screen Menu Screen
Page 15
Fig. 24
A
B
C
D
E
