Installation
Prior to Installation
Refer to the Hydraulic Plumbing Diagram (Fig. 51) for the following steps:
1.

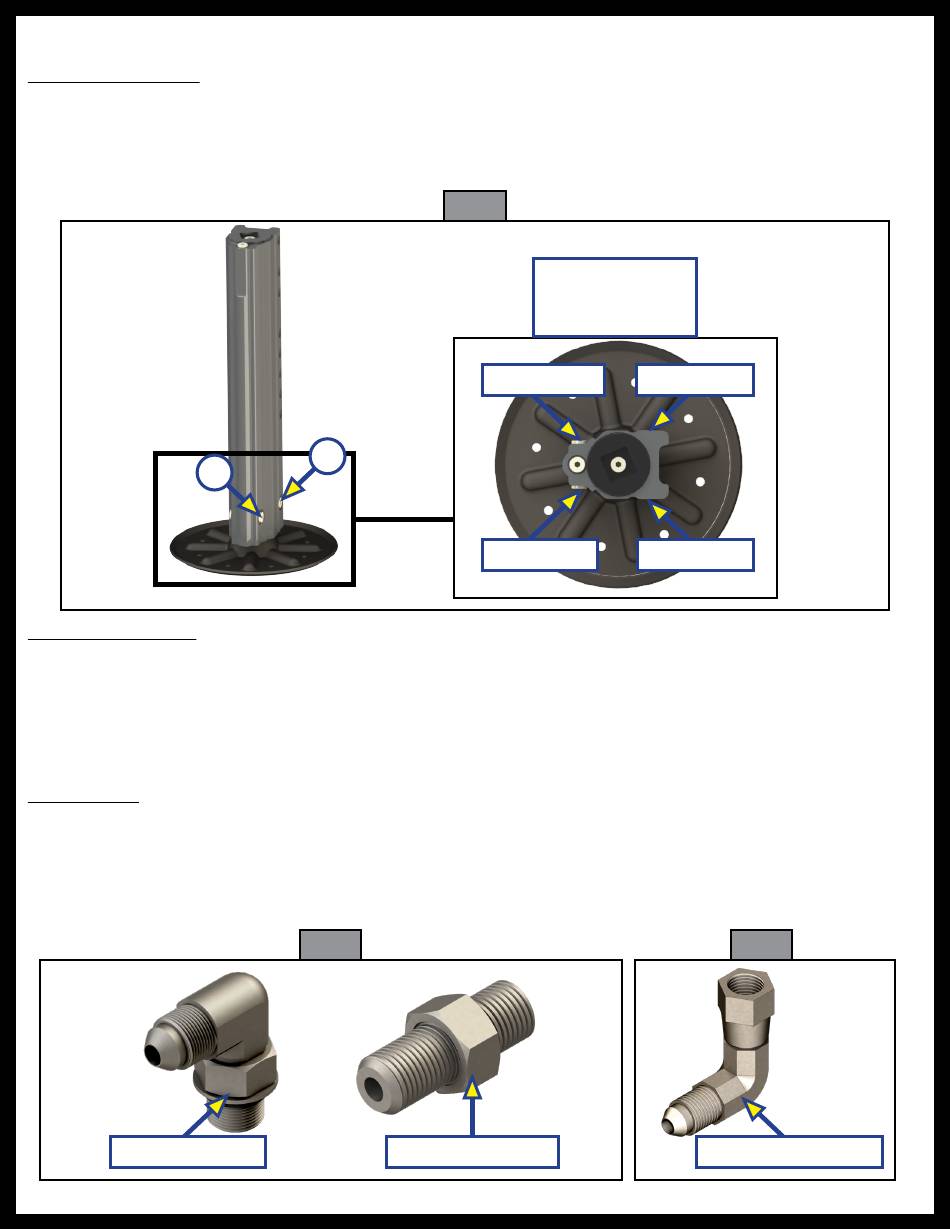

Identify where the extend (Fig. 3A) and retract ports (Fig. 3B) are on the jack.
2.
Verify that the ports are clear of any residual machining metal debris.
3.
Label each jack Left Front (LF), Right Front (RF), Right Rear (RR) or Left Rear (LR).
Jack Specifications
CAPACITY - 8,000 lbs. max.
Because of various possible configurations, this manual will provide instructions with the hydraulic power unit
mounted near the center of the coach frame, roadside frame rail. Fittings and hose configurations may be OEM
specific. Under normal installation procedures, the jacks closest to the hydraulic power unit get plumbed first.
See the Hydraulic Plumbing Diagram (Fig. 51) for the hydraulic power unit located on the left side of the coach.
Jack Fittings
1.
The hydraulic fittings (Fig. 4) for the hydraulic power unit (Fig. 6) can be installed per figure 6 and the
the Hydraulic Plumbing Diagram (Fig. 51). Remove the port plugs corresponding to the appropriate
hoses needed for each jack at their respective location, see Hydraulic Plumbing Diagram (Fig. 51).
Use JIC swivel 90° elbow fittings (Fig. 5) for the jacks and jack hose connections. All jack fittings should
be on the inside face of the jack, towards the center of the coach.
JIC Elbow Fitting
Rev: 10.23.23
B
A
STROKE - 13"
Fig. 4
Fig. 3
Top view of the
jack, without
hydraulic fittings.
Extend Port
Extend Port
JIC Straight Fitting
Page 6
Retract Port
Retract Port
FOOTPAD 9" DIA. STANDARD
Fig. 5
JIC Swivel 90° Elbow
CCD-0005481
