Lippert TI-183 Programming And Operations Manual

Purpose

This document outlines the procedures to program the controller, how to operate the Schwintek TV Lift,
possible error codes on the controller that might arise and what to do to correct the error.

Safety

Before starting any work read these instructions.
The "CAUTION" symbol above is a sign that a safety risk is involved and may cause personal injury
and/or product or property damage if not safely adhered to and within the parameters set forth

Procedures

Programming the Extend and Retract Stops
1.
To enter programming mode, hold the Configuration button (Fig. 1A) for five seconds.
Controller
Green LED
NOTE: The green LED will flash, and the red LED will light up solid.
2.
Set the extend limit by holding the UP button (Fig. 1B) on the remote (or EXTEND on the wall switch)
and stopping at the desired height.
3.
Press the Configuration button (Fig. 1A) to set the extend limit.
NOTE: The red LED will flash, and the green LED will light up solid or turn off.
Rev: 05.19.2022
TI - 183 SCHWINTEK TV LIFT
PROGRAMMING AND OPERATION
POWER AND MOTION
in this document
Moving parts can pinch, crush, or cut. Keep clear at all times.

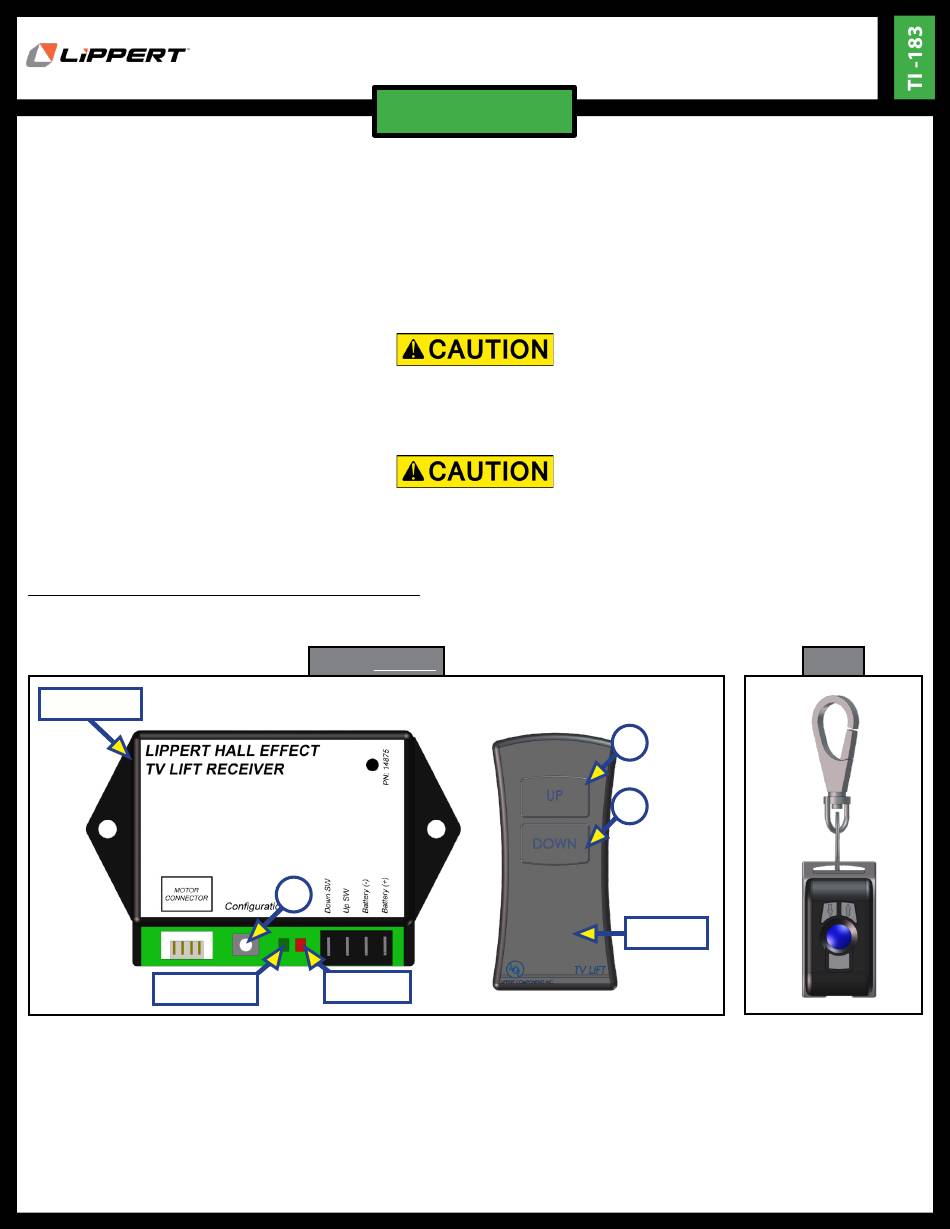

Fig. 1 - 253395
A
Red LED
B
C
Page 1
Fig. 2
Remote
CCD-0002102
