Installing the Steel Front Crossbar

NOTE: Crossbar must be installed between the Passenger Side and Driver's Side jacks.

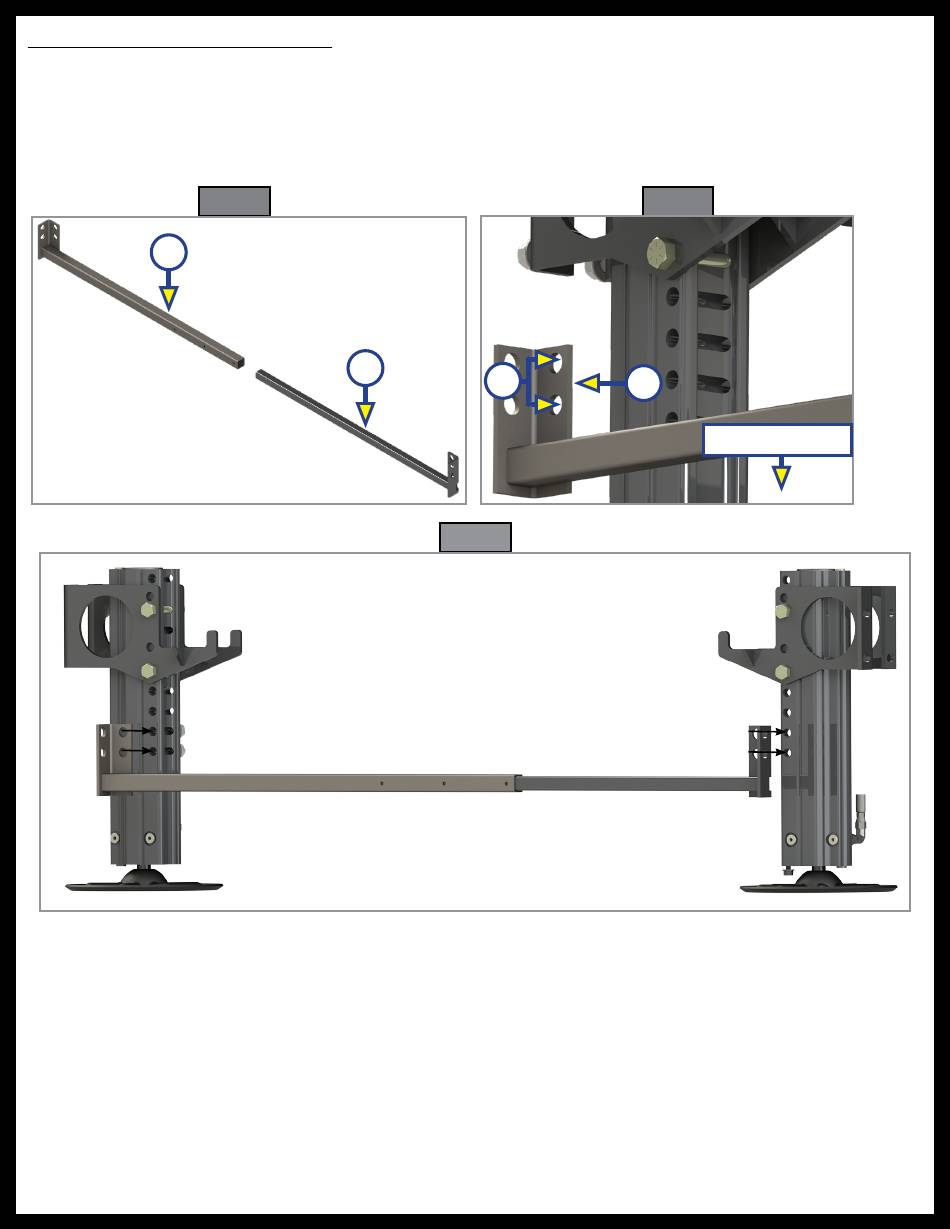

1. Slide the inner crossbar beam (Fig. 41A) into the outer crossbar beam. (Fig. 41B).
2. With the backside of the flanges of the crossbar mounting "L" brackets facing the front of the vehicle
(Fig. 42A), and the holes on the "L" brackets (Fig. 42B) above the crossbar (Fig. 42C), align the holes
with the bottom two mounting holes on the front jack mounting brackets (Fig. 43).
