Front Jack Bracket Installation

Mounting hole edges on the backside of the jack (Fig. 13E) may be sharp and should be handled
with care. Serious personal injury may occur if not using safety equipment such as gloves
NOTE: A recommended minimum ground clearance between the bottom of the jack footpad and the
ground, is 7-9" when the coach is at its maximum rated weight. When installing the jacks on a bare
chassis, keep in mind that some ground clearance will be lost as the coach is built, and to adjust the
installation height accordingly. Make sure that the approach and departure angles are maintained
after the jack is mounted to the jack bracket. Mark the location on both the inside and outside frame
rails that satisfies the minimum clearance requirements.
NOTE: Dry fit the jack bracket assembly on the chassis frame, noting which holes will align with the holes
in the cab step well while satisfying the minimum ground clearance. Note which holes to attach the
bracket to the jack for the opposite side installation.
A
A
Brackets
installed
against
the coach
cab wall.
D
D
Extend Port
Passenger Side
1. Assemble the two jack brackets (Fig. 13A) on the Passenger Side front jack . Secure the brackets by
using two ½" - 13 X 3 1/2" bolts (Fig. 13D) and two ½" - 13 lock nuts (Fig. 13E). Torque to 90 ft/lbs. Take
note that brackets A have two gussets on each bracket.
2. Assemble the two jack brackets (Fig. 13 A and B). Secure the brackets by using two ½" - 13 X 3 1/2" bolts
(Fig. 13D) and two ½" - 13 lock nuts (Fig. 13E). Torque to 90 ft/lbs. Take note that bracket B has one gusset
where the other three have two gussets.
3. At the bottom, rear facing side of the Titan Jack (Fig. 14A), remove the extend port plug and attach a
straight fitting (Fig. 14D) and swivel elbow retract fitting (Fig. 14E). Attach the pre-measured black extend
hose (Fig. 14F).
Rev: 10.23.23
when handling the jacks.

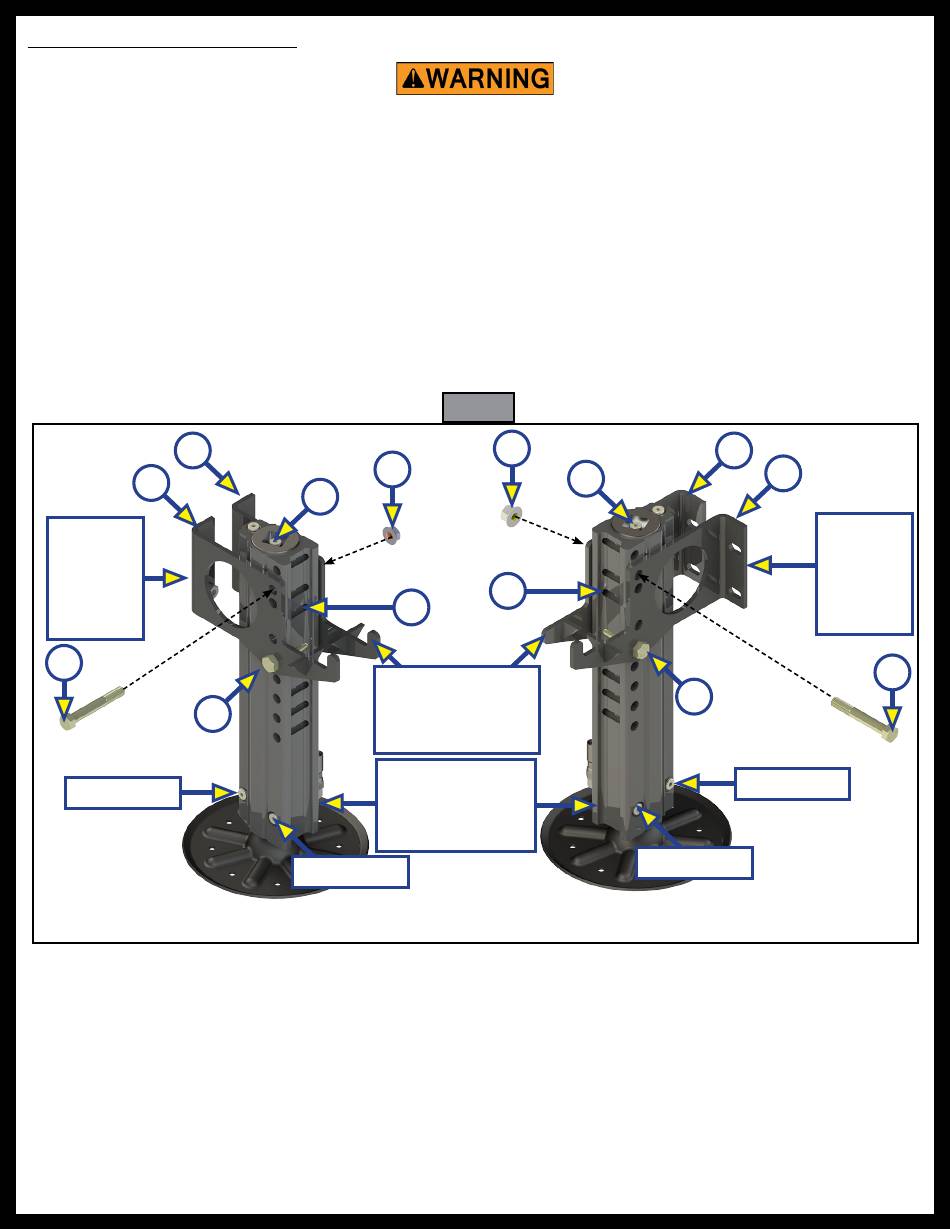

Fig. 13
E
C
F
Brackets placed
underneath
the chassis frame.
Same extend
and retract ports
on opposite side.
Retract Port
Page 10
E
C
F
Retract Port
Driver's Side
B
A
Brackets
installed
against
the coach
cab wall.
D
Extend Port
CCD-0005481
D
