- Page 1 Schwintek TV Lift OEM INSTALLATION MANUAL...
- Page 2 Operation Wiring Diagram Notes Introduction The Schwintek TV Lift is designed with a maximum operating weight rating of 75 lbs. Do NOT exceed the maximum operating weight rating. Safety Information Read all instructions and safety labels before starting product installation.

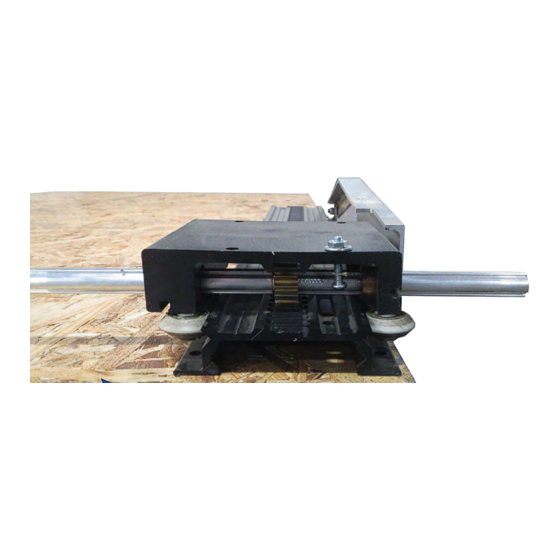

- Page 3 Installation Make sure the unit is level. Mount bearing block with motor (Fig. 1) to solid backer, centered within cabinet, using #10 screws. Mount TV lift controller close to end of motor using #10 screws. A. Plug motor control wires into controller (Fig. 2). B.
- Page 4 B. Insert rack until the gear in the bearing block comes into contact with the serpentine groove of the rack (Fig. 3). C. Press the switch's RETRACT button (Fig. 4) until the rack is fully inserted into the bearing block. Mount the cabinet top angle transition plate onto the rack (Fig.
- Page 5 Set the retract limit by holding the DOWN button (Fig. 6C) on the remote (or RETRACT on the wall switch) and stopping when the TV is fully lowered into the cabinet. Press the Configuration button (Fig. 6A) to set the retract limit. NOTE: Both LEDs will blink for 3 seconds and then the receiver will exit programming mode.
- Page 6 Wiring Diagram Fig. 7 236575 Motor 199082 Switch 253396 Control 30 Amp Back of Switch Circuit Protection 12V DC Battery Front of Switch − Switch Control Circuit Protection 12V DC Battery Top Pin (EXTEND) UP SW Middle Pin (Power) BATT (+) 30 Amp Positive (Red) Post Bottom Pin (RETRACT)
- Page 7 Notes Page 7 Rev: 05.20.22 CCD-0001576...
- Page 8 The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (LCI). LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized LCI representative has been provided. Any unauthorized use shall void any applicable warranty. ...
