Numatic NX 1K Original Instructions Manual

Numatic NX 1K Original Instructions Manual

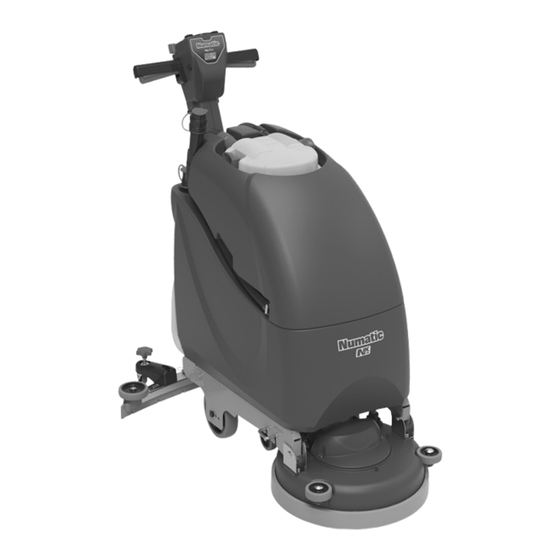

Scrubber dryer

Advertisement

Quick Links

GB
GB
TBL4055/100T
Original Instructions
CAUTION, Read instructions before using the machine
TBL4045/50
TBL4045/100
TBL4055/50
TBL4055/100
TBL4055/50T
S C R U B B E R
D RY E R
Keep for future reference
numatic.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NX 1K and is the answer not in the manual?

Questions and answers

Summary of Contents for Numatic NX 1K

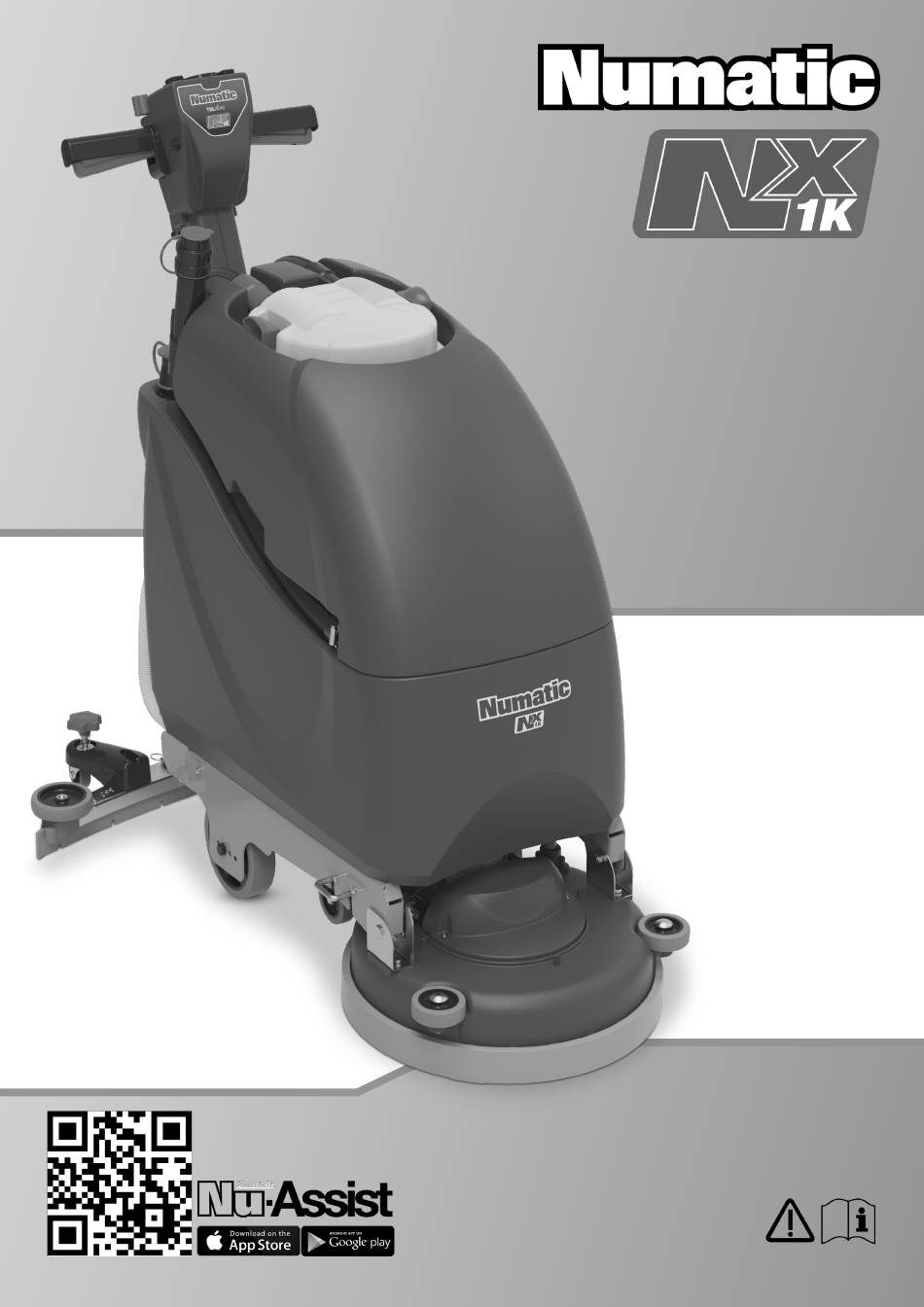

  • Page 1 TBL4045/50 TBL4045/100 TBL4055/50 TBL4055/100 TBL4055/50T TBL4055/100T S C R U B B E R D RY E R Original Instructions CAUTION, Read instructions before using the machine Keep for future reference numatic.com...
  • Page 2: Table Of Contents

    Trouble Shooting .........Page 23 TBL Fault Codes .........Page 24 Warranty .........Page 25 In the event of a breakdown contact your Numatic dealer or the EU Declaration Document ......Page 27 Numatic Technical Help line +44 (0)1460 269268 Company Address .........Page 28...
  • Page 3: Machine Overview

    Machine Overview TBL4045/50 = 1x battery TBL4045/100 = 2x batteries TBL4055/50 = 1x battery TBL4055/100 = 2x batteries TBL4055/50T = 1x battery TBL4055/100T = 2x batteries TBL4045 TBL4055 TBL4055T...
  • Page 4: Control Panel Overview

    Control Panel Overview TBL4045/ TBL 4055 Battery Charge Level Display Hour Meter Vacuum On/Off Indicator Water Flow On/Off Button Handle Position Lever Start Switch Start Triggers Charge Indicator Light Charge Socket Control Panel Overview TBL 4055T Battery Charge Level Display Hour Meter Vacuum On/Off Indicator Water Flow On/Off Button...
  • Page 5: Machine Set Up Guide

    Numatic International Ltd recommends ONLY using 911948 NX1K LFP battery type Lithium Batteries provided with this machine. ENSURE THAT NO METAL OBJECTS COME INTO CONTACT WITH BATTERY TERMINALS WHILE THE BATTERIES ARE EXPOSED.
  • Page 6: Raise / Lower Brush Deck

    Machine Set-up Guide ALWAYS ENSURE THAT THE MACHINE IS SWITCHED OFF BEFORE MAKING ANY ADJUSTMENTS Raising/Lowering the Brush Deck To tip the deck into the down position (Operating mode). Press in the brush deck locking pin (Fig. A) and rotate the brush deck (Fig. B & C). To change to brush deck up position, (Transit mode) simply lift the deck and the spring loaded locking pin will activate to hold the deck up.
  • Page 7: Fitting The Floor Tool

    Fitting the Floor Tool The floor tool has been designed for quick fitting, allowing easy squeegee blade replacement and a safety knock-off feature if the floor tool gets snagged, whilst in transit. Note: It is easier to fit the floor tool if the weight of the machine is resting on the brush. Ensure the brush is fitted first. Fit the floor tool and retain using the detent pins.
  • Page 8: Filling The Clean Water Tank

    Machine Set-up Guide Filling the Clean Water Tank To fill the clean-water tank, use the FLEXI - FILL pipe from either a tap or hose pipe (Fig. A & B). The large cap can also be used for filling from a bucket or suitable container (Fig. C). Fill the clean-water tank to MAX line indication on tank, including cleaning chemicals if required.
  • Page 9: Raising/ Lowering The Floor Tool

    Machine Operation Raising/ Lowering the Floor Tool After preparing the floor (see previous section), we are now ready to set the controls to suit the cleaning conditions. Before any settings can be applied, ensure the brush deck is lowered. Move the floor tool lever to its lower position.
  • Page 10: Breakaway Floor Tool

    Machine Operation Break-away Floor Tool The floor tool design incorporates a break-away feature. Allowing it to safely disengage from its mounting should it become caught on an obstruction, during forward machine movement. To re-attach the blade to its holder. First loosen the retaining knobs on the floor tool body and slide onto the holding bracket. Tighten retaining knobs to finger tight.
  • Page 11: Regular Maintenance

    Regular Maintenance ALWAYS ENSURE THAT THE MACHINE IS SWITCHED OFF PRIOR TO ANY MAINTENANCE USING THE MASTER CONTROL ON/OFF KEY. REMOVE THE KEY PRIOR TO ANY MAINTENANCE OPERATION. After use, empty waste water tank using emptying hose and flush out with clean water.
  • Page 12: Changing Floor Tool Blades

    Changing the Floor Tool Blades Always ensure that the machine is switched off prior to maintenance. To clean the floor tool, remove securing-pin and pull-free from the holder. Rinse the floor tool assembly with clean water and refit. Periodically the floor tool blades should be examined and checked for wear and damage.
  • Page 13: Machine Charging

    Machine Charging Always ensure that the machine is switched off prior to charging. As the machine is used and the batteries are discharged, the meter lights will go out from right to left. If the battery-charge level is allowed to discharge to the point The battery meter displays the charge level of the batteries;...
  • Page 14: Charging Light Sequence

    Charging Light Sequence Signal (LED) Meaning Red LED on First Phase (Constant Current Mode). Orange LED on Second Phase (Constant Voltage Mode). Third Phase (Constant Voltage Mode) Charge Complete. Green LED on However, after full re-charge, leaving the charger connected moves to float- charge mode to help to maintain a healthy balance between batteries.
  • Page 15: Rating Label / Personal Protective Equipment / Recycling

    About the Machine Rating Label Company Name & Address Machine Description Supply Current / Voltage / Alternating Current / Frequency Charger Output Battery Voltage Noise Rating Hand Arm Vibration Weight (ready to use) Ingress Protection Rating Max Gradient QR Code WEEE Logo / Approvals Mark SKU / Part Machine yr/wk Serial number...
  • Page 16: Information For Scrubber Dryer

    • Regularly examine the power cord for damage, such as cracking or ageing. If damage is found, replace the cord before further use. • Only replace the power cord with the correct Numatic approved replacement parts. • Ensure that the work area is clear of obstructions and / or people.
  • Page 17 Undo battery terminals and remove. Remove batteries. The batteries are to be disposed of safely, as according to local government guidelines. 10. Only use genuine Numatic replacement batteries. 11. Do not allow the batteries to become fully discharged; it may not be possible to re-charge them.
  • Page 18: Battery Information

    518054, P.R. China Tel: 0086-755-83283710 0044-146-068600 www.numatic.co.uk | www.numatic.de | www.numatic.ch | www.numatic.fr www.numatic.nl | www.numatic.co.za | www.numatic.pt | www.numatic.es 1. DEFECTIVE BATTERIES If a customer wishes to return a battery to a supplier after removing from product, then collection of the battery must be arranged by the supplier; however, Faulty batteries must not be returned through the postal system or by courier.
  • Page 19 • Do not use defective or deformed batteries. • Use only original Numatic specific appliances to charge and discharge batteries. STORAGE: • Good batteries should be stored in a protected area away from sources of direct heat and sunlight and should be kept dry.
  • Page 20 Numatic specific chargers. Warning: The battery must only be charged by the Numatic Charger supplied with the product and under NO circumstances should an alternative non Numatic charger be used as there is a risk of severe damage and fire could result.
  • Page 21: Schematic Diagram

    Check the mains cord regularly for any sign of damage. • Do not use damaged devices. • If the mains cord of the charger is damaged, it must be replaced by an original NUMATIC mains cord available from the manufacturer or service agent. 12. WARRANTY Lithium-Ion Battery Warranty Warranty: Commercial Use Batteries are warranted for (3 Years) as standard, providing all battery care rules are followed.
  • Page 22: Specifications

    Specifications Model - TBL 4045 (Non Traction Models) Brush Motor Vac Motor Brush Sizes Pad Sizes Charger 300 W 400 W 450 mm 400 mm 20 Amp Protection Class Brush Speed Water Capacity Fluid Flow Hand Arm Vibration IPX4 140 RPM 40 L 0 - 2 L/Min ≤2.5m/s...
  • Page 23: Recommended Spare Parts

    208889 Clean Water Filter Mesh 206111 Dump / Filler Closure - Bottom Tank For optimum performance Numatic International Ltd recommend the use of the following batteries in the Twintec machines. Machine Numatic Recommended Battery Part Number TBL4045 / 4055 / 4055T...
  • Page 24: Tbl Fault Codes

    TBL Fault Codes Contact Service Agent...
  • Page 26 Notes...
  • Page 28: Company Address

    Floor Tool Charging Lead Battery Fuse Pack Signed numatic.com Numatic International Limited (Head Offi ce) Chard, Somerset TA20 2GB, UNITED KINGDOM Tel: 01460 68600 numatic.com Numatic International GmbH Fränkische Straße 15-19, 30455 Hannover, DEUTSCHLAND Tel: +49 (0) 511 984 2160 numatic.de...
