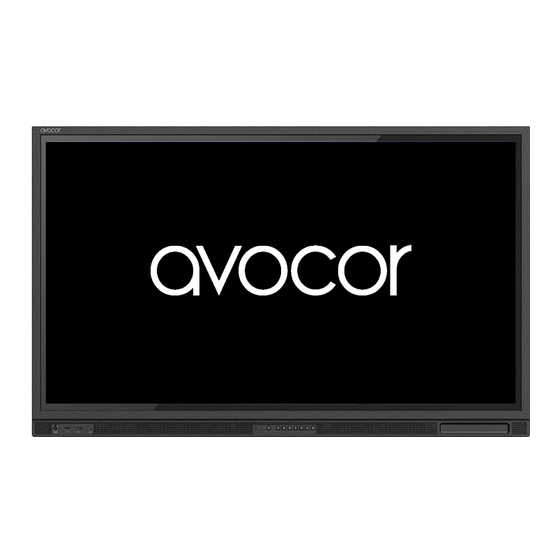

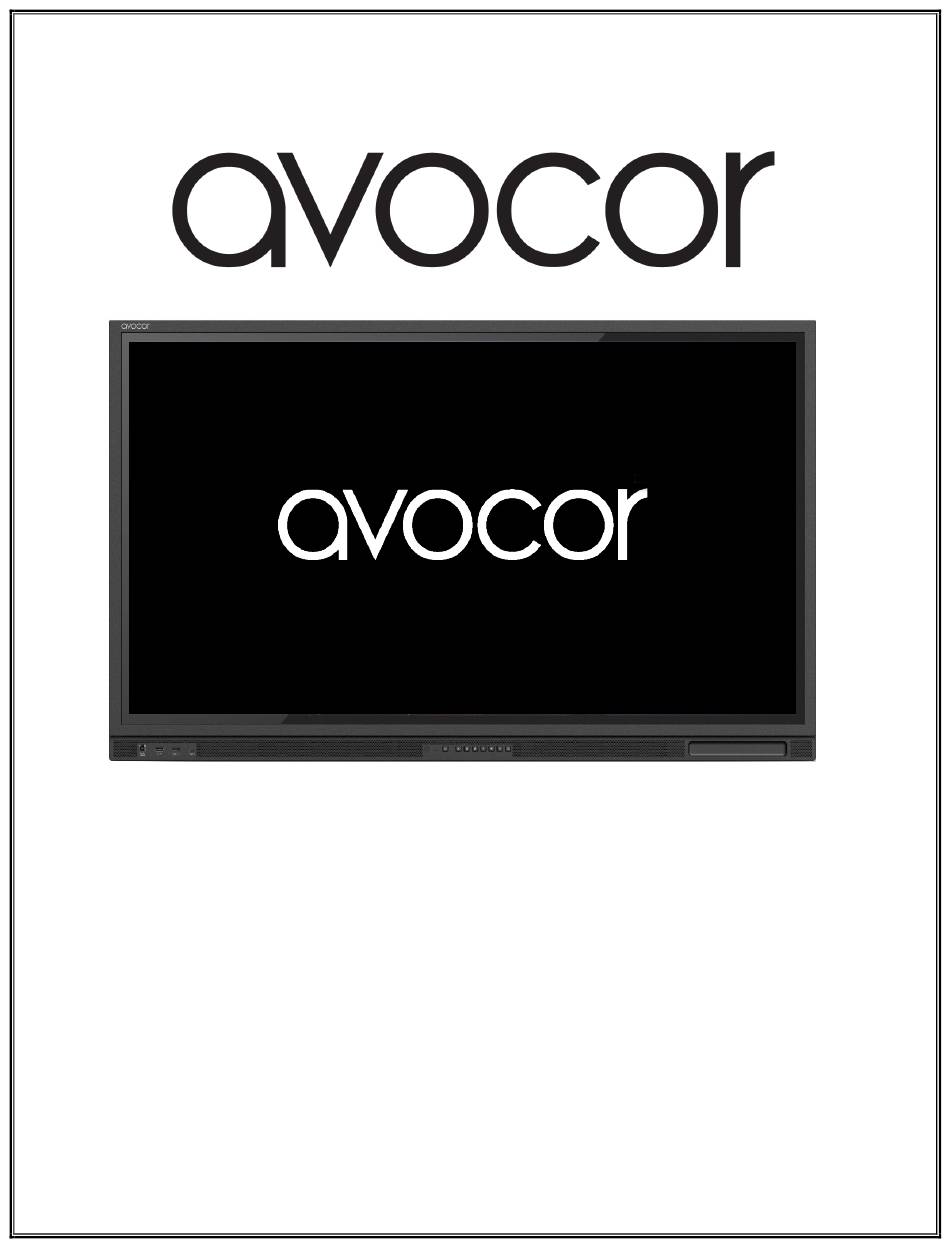

- Page 1 AVE-40 Series User Manual AVE-5540 / AVE-6540 / AVE-7540 / AVE-8640...
-
Page 2: Table Of Contents
AVE-xx40 User Manual | 1 TABLE OF CONTENTS Compliance Information ........................... 4 Declaration of Conformity ..............................4 Caution ................................4 Industry Canada (ICES-003) .............................. 4 Product Disposal ..................................5 Disposal of Old Electrical and Electronic Equipment ....................5 Introduction .............................. 6 About This Manual .................................. - Page 3 AVE-xx40 User Manual | 2 Guest inputs ..............................22 Side inputs ..............................23 REAR LOWER INPUTS ..............................24 OPS Module .................................... 25 OPS Installation Step-by-Step ........................25 Remote Control ..................................27 Remote Control Batteries .......................... 28 Operation ..............................29 Precaution ..................................29 The UiQ Home Screen ................................
- Page 4 AVE-xx40 User Manual | 3 CONCEALED DAMAGE ..............................51 CUSTOMER DATA ................................51 SERVICES ....................................51 Revision Date: 30/09/2022...
-
Page 5: Compliance Information
AVE-xx40 User Manual | 4 COMPLIANCE INFORMATION Declaration of Conformity Avocor hereby declares that the following Product Model Number: AVE-5540 / AVE-6540 / AVE-7540 / AVE-8640 conforms to the provisions of the following regulations: • FCC: FCC CFR Title 47 Part 15: Subpart B Class A, ANSI C63.4... -
Page 6: Product Disposal
AVE-xx40 User Manual | 5 Product Disposal The Product contains small amounts of tin, lead, and/or mercury. Disposal of these materials may be regulated due to environmental considerations. Disposal of Old Electrical and Electronic Equipment Applicable throughout the European Union and other European countries with separate collection programs This symbol, found on your product or on its packaging, indicates that this product should not be treated as household waste when you wish to dispose of it. -
Page 7: Introduction
Whether you need a virtual meeting space for your conference room, or a powerfully adaptive whiteboard or presentation hub for your classroom, the Avocor AVE-xx40 series will exceed your expectations. -
Page 8: Graphic Conventions
AVE-xx40 User Manual | 7 Graphic Conventions The following symbols appear throughout this manual to emphasize key points. Keep these in mind not only to benefit from their advice, but also to avoid problems with the display or personal injury. Highlights helpful guidelines and best practices for using certain features. -
Page 9: What's In The Box
AVE-xx40 User Manual | 8 WHAT'S IN THE BOX? Avocor AVE-xx40, Interactive Display • Quick Start Guide with QR code • Remote Control & Batteries • (2) Touch Stylus 3mm • (6) Stylus replaceable nibs • Power Cables • o US Cable 2m... -
Page 10: Specifications
30 Bit Deep Color Colors Display Landscape Orientation Touch System Touch Up to 40 Point Avocor Intelligent Touch - Supports 1 fine tip stylus Glass Zero Parallax, Bonded, Anti-Glare, Anti-Fingerprint Glass Supported Windows 8 / 10; Mac OSX*; Linux*; Chrome Connectivity Guest 1x Type C (45W PD), 1x HDMI 2.0, 1x USB-B Touch, 1x USB-A 3.0 Hub... - Page 11 AVE-xx40 User Manual | 10 Physical Specifications Product 1286 x 802 x 78.4 mm 1513 x 938 x 99.5 mm 1735 x 1062 x 91 1981 x 1201 x 91 mm Dimensions 50.63 x 31.57 x 3.09 in 59.57 x 36.93 x 3.92 in 68.31 x 41.81 x 3.58 in 77.99 x 47.28 x 3.58 in Shipping...
-
Page 12: The Display, At A Glance
AVE-xx40 User Manual | 11 THE DISPLAY, AT A GLANCE The following diagrams depict the front, side, and bottom panels of the display. The physical interface and connections are labeled, and then described in the tables that follow. Display Front Front Panel Interface/Guest Inputs Type C, HDMI 2.0, Touch USB-B 3.0, USB-A 2.0 (Accessory Port) Front Panel Speakers... -
Page 13: Display Rear
AVE-xx40 User Manual | 12 Display Rear A/C Rocker Switch; toggles all power to the display. Main Power Switch Three-pin A/C Jack. Power Socket TX25A-80P standard OPS input; compatible with non-standard OPS-C OPS Slot structure. Side — 2x HDMI 2.0, 1x DisplayPort 1.2, 1x USB-B Touch, 1x USB-A 3.0, Rear Source Inputs 1x USB Service Port, 1x 3.5 Audio out, 1x HDMI Out (4K@60Hz) Bottom—SPDIF, RS232 Female Input, Ethernet In, Ethernet Out. -
Page 14: Display Keypad
AVE-xx40 User Manual | 13 Display Keypad Power LED Indicates the power status of the display. Light sensor Ambient light detector. Turn the display on/off. Power Switch sources. Source Open UiQ Settings. Menu settings Access the UiQ Home screen. Home Short press to reduce one level of volume;... -
Page 15: Guest Inputs
AVE-xx40 User Manual | 14 Guest Inputs USB Touch USB Touch 3.0 Guest Input. USB 3.0 USB Accessory Input. HDMI HDMI Guest Input. Type C USB Type C, Guest Input for video and Touch Revision Date: 30/09/2022... -
Page 16: Side Inputs
AVE-xx40 User Manual | 15 Side Inputs DisplayPort DP1.2 & HDCP2.2. HDMI1 HDMI2.0B & HDCP2.2. HDMI2 HDMI2.0B & HDCP2.2. USB Touch USB 3.0 Type B for touch control. USB 2.0 USB 2.0 accessory port Line out 3.5mm audio output (no mic). USB 3.0 USB 3.0 accessory port. -
Page 17: Rear Lower Inputs
AVE-xx40 User Manual | 16 Rear Lower Inputs Sony/Phillips Digital Interface. Connect external and digital powered speakers, or SPDIF Out an audio receiver or amplifier. For interfacing with a PC or RS232 DB9 Female Input automation/control system. Ethernet In RJ45 Input Lan In, 10/100Mbps. -
Page 18: Installation
AVE-xx40 User Manual | 17 INSTALLATION Please read the following precautions carefully before installing your new Avocor AVE-xx40 display. Failure to comply may result in damage to the display and equipment and may result in personal injury or death. •... -
Page 19: Ambient Considerations
AVE-xx40 User Manual | 18 Ambient Considerations Environmental and ambient factors play a considerable role in determining your viewing experience and the functional operation of the display. Make sure to follow these guidelines carefully to get the most out of your display. AMBIENT LIGHT For the best viewing experience, make sure to minimize or remove light sources directed at the screen, especially sunlight. -
Page 20: Mounting The Display
AVE-xx40 User Manual | 19 Mounting the Display The three primary types of mounting solutions are Stationary Stands, Rolling Carts, and Wall Mounts. This chapter will examine each type and how they might fit into your installation. NOTE Leave mounting to the installation specialists. ... -
Page 21: Rolling Cart
AVE-xx40 User Manual | 20 ROLLING CART As the most mobile of mounting solutions, the rolling cart is perfect for those who want a flexible setup that can be taken to different rooms. WARNING At least two people are needed to move a rolling cart with a mounted display. ... -
Page 22: Wall Mount
AVE-xx40 User Manual | 21 WALL MOUNT Though immobile and possibly the most time-consuming install, wall mounts benefit from the fact that they take up much less space than their counterparts. This is a great option for those who want a permanent sleek-looking setup, especially if extra time is taken to route any cabling through the wall. -
Page 23: Peripheral Connections
AVE-xx40 User Manual | 22 Peripheral Connections Your Avocor AVE-xx40 display supports connections to multiple peripheral devices, from computers, to wireless presentation systems, to external control systems. The below diagrams demonstrate how to connect your peripherals for the best possible results. -
Page 24: Side Inputs
AVE-xx40 User Manual | 23 SIDE INPUTS NOTES • The side inputs on your AVE-xx40 display will support up to three primary sources, two USB accessories, an audio system analog or optical out, and an HDMI Out to an additional, non- touch monitor (Duplicate Screen ONLY). -
Page 25: Rear Lower Inputs
AVE-xx40 User Manual | 24 REAR LOWER INPUTS NOTES • Here, connect your AVE-xx40 to a Local Area Network (LAN) and/or a RS232 or TCP/IP control system. • Use a straight through DB9 connector to properly connect your control system to the RS-232 port on the display. -
Page 26: Ops Module
Your Avocor AVE-xx40 is compatible with any Open Pluggable Standard (OPS) computer module. Avocor offers its own OPS PC module, which is optimized for the display, for a separate purchase. Installing an Avocor OPS module is a relatively simple process, but one that still needs a level of care and attention. - Page 27 AVE-xx40 User Manual | 26 If installing an Avocor OPS module, the "OPS ===>" imprint should be upside down and facing the back panel of the display. If there is no imprint, then the small square fan vent should be facing the same direction as the back panel.
-
Page 28: Remote Control
AVE-xx40 User Manual | 27 Remote Control POWER Power on/off the display Navigate to the OPS input BLANK Blanks the display. Press again to restore. Freezes the display. Press again to FREEZE restore. OK/Direction Menu navigation and selection keys RETURN Go back to the previous menu Navigate to the UiQ home screen HOME... -
Page 29: Remote Control Batteries
AVE-xx40 User Manual | 28 REMOTE CONTROL BATTERIES To install batteries in the remote control: 1. Press down the tab on the cover plate and pull the cover plate up. 2. Insert the included batteries. Ensuring that the polarities correctly match the (+) and (-) markings inside the battery compartment. -
Page 30: Operation
Precaution Please read the following precautions regarding normal operation carefully. Failure to follow the cautionary points therein may cause damage to the screen not covered by Avocor's warranty policy. • If you encounter a problem during installation, please contact your dealer or Avocor support for assistance. -
Page 31: The Uiq Home Screen
AVE-xx40 User Manual | 30 The UiQ Home Screen The Home Screen is the default landing page and general hub for the AVE-xx40's touch interface. Here, you can configure the display's settings via the OSD and select an input source without having to use the remote control. -
Page 32: Uiq Settings
AVE-xx40 User Manual | 31 UIQ Settings To access the UiQ, touch the gear icon on the home screen, or press the Menu key on your remote control. You can access the various menu settings by touching the icon squares in this interface (see the image above). -
Page 33: Display
Set a default or custom user wallpaper for the UIQ Home Screen. A Wallpaper Slideshow option is available. Toggles the presence of the Avocor logo on the Home Screen. Avocor Logo Options: On, Off ; Default: On Toggles the slideshow of wallpapers on the UiQ Home Screen. When... - Page 34 AVE-xx40 User Manual | 33 Increase or decrease the intensity of the LCD backlight. Backlight 0-100 Select the desired level, and then press OK. Range: 0~100; Default: 80 Increase or decrease the contrast of picture. Contrast 0-100 Select the desired level, and then press OK. Range: 0~100;...
-
Page 35: Display Settings Tips
AVE-xx40 User Manual | 34 DISPLAY SETTINGS TIPS The Display settings submenu contains configuration options for various picture and audio settings for your AVE-xx40. Navigating the menus is straightforward and intuitive, but we'll provide some tips and knowhow to help you get started. Custom Wallpapers The AVE-xx40 already comes with some gorgeous high-resolution wallpapers, but you can easily upload your own. - Page 36 AVE-xx40 User Manual | 35 Energy Saving This submenu provides options for helping you maximize power efficiency for your AVE-xx40. Here you can… • Schedule an Auto Power On* cycle for every day of the week. • Toggle Eco Mode for automatic Energy Star rated picture settings.
-
Page 37: Network
AVE-xx40 User Manual | 36 Network Status Shows Network and LAN status (Cable Connected, Not Connected). DHCP Set a DHCP or Static IP . Static Display dynamic IP or the static IP address of the display’s Ethernet port IP Address Default: 0.0.0.0 Set the subnet mask address. -
Page 38: Network Settings Tips
DHCP, if available. Consult your network administrator to see if DHCP is an option! Wi-Fi An Avocor Wi-Fi USB adapter (AVC-USB-WIFI) is required to enable a Wi-Fi connection to the AVE-xx40 display. Once a Wi-Fi adapter has been connected to one of the USB Accessory ports on the display, navigate to Network>WiFi,... -
Page 39: Language
AVE-xx40 User Manual | 38 Language English French German Select the language UiQ interface Language Options: English, French, German, Spanish, Italian, Dutch ; Default: English Spanish Italian Dutch Revision Date: 30/09/2022... -
Page 40: Location & Time
AVE-xx40 User Manual | 39 Location & Time Set Timezone based on city and region. Tap and onboard keyboard Time Zone will launch Toggle set Date and Time automatically, (only available if there is Auto Date & Time internet connection ). Options: On , Off;... -
Page 41: Input
AVE-xx40 User Manual | 40 Input Home Screen OPS Computer HDMI Front Select the Input Source for HOME key Favorite Source HDMI Rear 1 Options: Home Screen, OPS Computer, HDMI Front, HDMI 1, HDMI 2, DisplayPort, USB-C ; Default: Home Screen HDMI Rear 2 Display Port USB-C... - Page 42 AVE-xx40 User Manual | 41 Advanced Settings Toggle to select Wake On Input Options: On, off; Default: Off Wake On Input Note: The display wakes up when input HDMI, DisplayPort & Type C & RS232 command. Select EDID (Extended Display Identification Data) of the HDMI 1~3, DisplayPort, Type C inputs.
-
Page 43: Input Settings Tips
If you get a blurry image on your Avocor AVE-xx40 from a 1080p source device, simply navigate to Input>Advanced Settings, select EDID, and set it to 1080p. This simply reduces the limit of the display's EDID range to 1080p, which should solve any image-upscaling problems. -
Page 44: Security
AVE-xx40 User Manual | 43 Security Toggle Require Passkey . Require Passkey Options: On , Off; Default: Off Set Passkey Set a custom Passkey to access display settings. Tap to enter Locks the buttons on the front panel of the display. Lock Front Button Options: On , Off;... -
Page 45: About
1. Tap "Install" to begin the update process. 2. The display will download and install the update. 3. Do not touch the power buttons until the display resets automatically. USB Updates Please contact Avocor for assistance with manual USB firmware updates Revision Date: 30/09/2022... -
Page 46: External Control
CAT5 cable. The display must be connected to the network and must have a valid IP address. Configure your control system to run through TCP port 4884. Command and Response Format Any commands sent from an automation/control system or PC to an Avocor display must have the following format: [STX] [IDT] [TYPE] [CMD] [VALUE]/[REPLY] [ETX] [CR] •... -
Page 47: Serial Command List
AVE-xx40 User Manual | 46 Serial Command List Main Control Item Type Value Reply Content Item (ASCII) Power 50 4F 57 Power Control IPC Control 49 50 43 HDMI 1 HDMI 2 HDMI 3 (Front) Input Source Selection 4D 49 4E Source Type C DisplayPort... - Page 48 AVE-xx40 User Manual | 47 00~64 00~64 Red Offset 55 4F 52 00~64 00~64 Green Offset 55 4F 47 00~64 00~64 Blue Offset 55 4F 42 Sharpness 00~64 00~64 Sharpness 53 48 41 Point to Point Full Screen (16:9) Scaling Pillarbox (4:3) 41 53 50 Letterbox...
- Page 49 AVE-xx40 User Manual | 48 OPS Key DisplayPort Key TYPE C Reset all Factory Reset 41 4C 4C Reset all but communication 13 bytes Read Serial Number 53 45 52 Display Information 13 bytes Read Model Name 47 56 45 6 bytes Read Firmware Ver.
- Page 50 AVE-xx40 User Manual | 49 01~1F 01~1F Set Real time Day 52 54 44 00~17 00~17 Set Real time Hour 52 54 48 00~3B 00~3B Set Real time Minute 52 54 4E Unfreeze Freeze 46 52 45 Freeze Auto Scan Off Auto Scan 41 54 53 Auto Scan On...
-
Page 51: Warranty Information
This warranty does not cover installation, signal reception problems, potential incompatibility with peripheral devices, or acts of nature. Avocor does not warrant, nor shall it be liable for Products which have been subject to abuse, including, but not limited to, improper voltage, accident, misuse,... - Page 52 If freight was arranged by Avocor, and patent or obvious physical damage to the packaging is not detected but found on the product or product accessories upon inspecting the product, the customer must report the damages to Avocor within 10 calendar days after the delivery date to receive warranty services.
- Page 53 ABOVE AFR GUIDELINES. CONTACT SUPPORT FOR FURTHER DETAILS. Defective on Arrival (DOA): If the Product is determined by Avocor to be defective within the first 90 days of the initial purchase by the Customer, it is deemed Defective on Arrival (DOA). In the case of a DOA, the Customer will be provided a brand-new equivalent Product.
