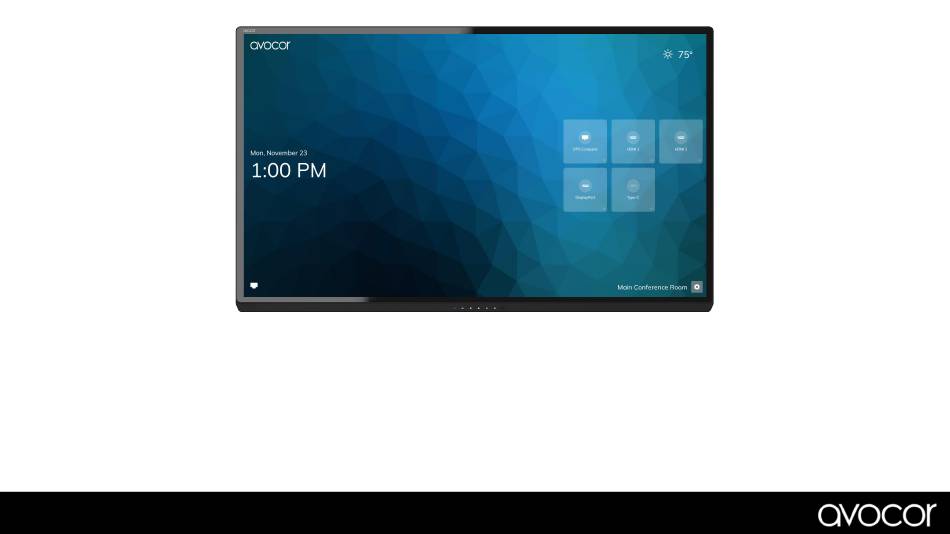

- Page 1 Avocor AVG Series Quick Start Guide...

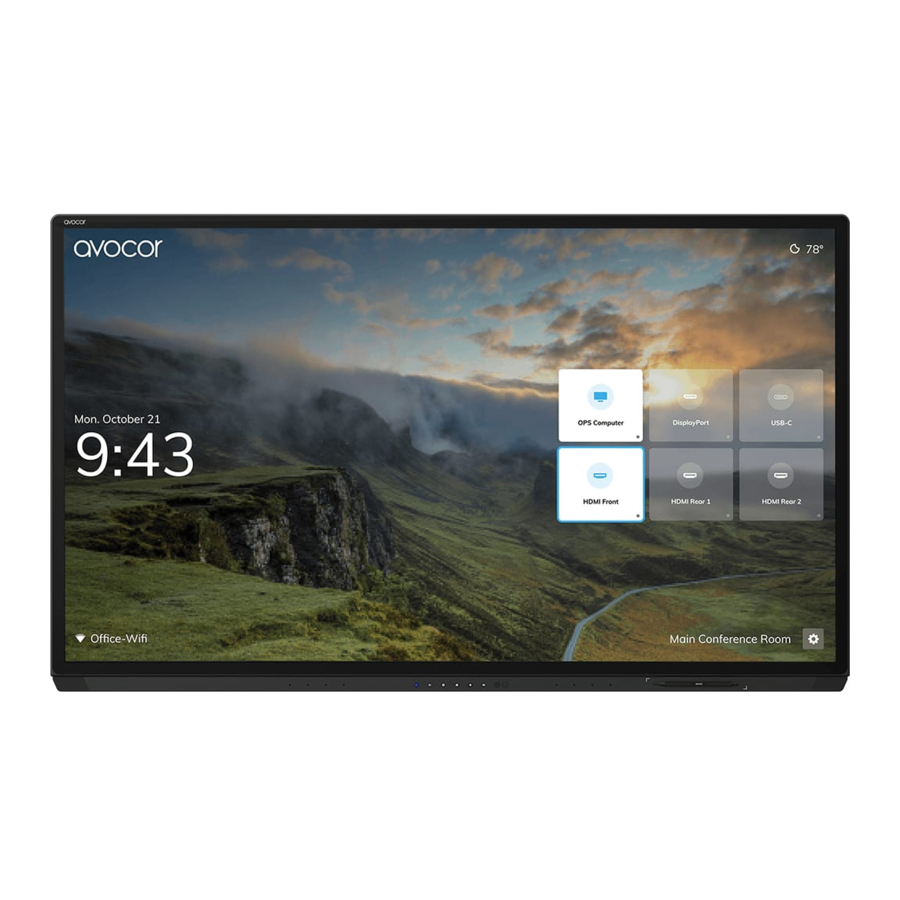

- Page 2 Welcome to your new Avocor AVG Series display Your Avocor G-Series, 4K interactive touch display supporting 4K@60Hz resolution, up to 20 simultaneous touch points, 4 simultaneous passive pens use, USB Type C connectivity, multiple source inputs for your computers and USB peripherals, and an Intel™...
- Page 3 Welcome to Avocor UiQ Avocor’s UiQ is the new smart touch enabled dynamic user interface, with source preview and menu settings, that allows for remote control free usage.
- Page 4 Temperature C / F Source Preview & Selection Time & Date Wi-Fi connection Room Name & Settings...
- Page 5 Select the gear icon to access the settings menu...
- Page 6 There are seven categorical tiles to choose from in the Settings menu: Display, Network, Language, Location & Time, Input, Security, and About. Touch one of these tiles to open a subset of configuration options for your chosen Settings category.
- Page 7 • Name - Assign a name to the display. • Wallpaper - Set a default or custom user images for the Home Screen. • Energy Saving - Set Auto Power On/Off, Power On Time, Power Off Time, Presence Detection, Eco Mode, OPS Always On, Display Sleep.
- Page 8 • Status - Shows Network & LAN status. LAN - Set a Static IP or DHCP address. • • WiFi - Configure Wi-Fi settings.* • Wake On LAN - Toggle on/off. * To enable WiFi you need a compatible Wi-Fi USB dongle - sold separately.
- Page 9 • Timezone - Set Timezone based on your city and region. Auto Date & Time - Toggle Auto Date & • Time on/off. • Use 24 Hour Time - Toggle 24 Hour Time on/off. • Date Format - Set a date format for the Home Screen.
- Page 10 • Favorite Source - Set the favourite source (Home Screen, OPS PC, Type C, HDMI 1, HDMI 2, DisplayPort). • Starting Source - Set the default source the display will show automatically upon powering on the display (Home Screen, OPS PC, Type C, HDMI 1, HDMI 2, DisplayPort).
- Page 11 Require Passkey – Toggle on/off. • • Set Passkey - Set a custom Passkey to access display settings. • Lock the front buttons of the display – Toggle on/off...
- Page 12 The Display at a Glance G-60 – 65”|75”|85” Mic Array Front Buttons Presence Sensor Power Switch Power Socket OPS PC Slot Side IO Ports Control & Service Ports...
- Page 13 Front Control Buttons and their Functions Control Description Buttons Press the button to turn on and Power off the display Source Source switching and preview. Menu Displays menu options. Default set to OPS slot. Home Can be assigned to any input Short press to reduce one level of volume;...
- Page 14 Display Input Sources G-Series.
-
Page 15: Remote Control & Functions
Remote Control & Functions Power on/off the display Default set to OPS slot Can be assigned to any input Opens the Source Menu. Navigates through menus and settings. Selects highlighted menu choice Locking & Unlocking the Remote Control Takes the user back one step You can lock the remote control buttons and display keypad to prevent unauthorised personnel from changing settings on the... - Page 16 Switching the Avocor display on and off Switching on 1. Plug the end of the supplied power cord into the display 2. Connect the other end to the power source. 3. Turn on the main power switch of the display. If the LED indicator is pulsing blue the display is in “standby”...
-
Page 17: Connecting The Display
Connecting the Display Proceed as follows to connect the display to your video sources, external controller. When connecting your equipment: 1. Turn off all equipment before making any connections. 2. Use the correct signal cables for each source. 3. For best performance and to minimise cable clutter, use high-quality cables that are only as long as necessary to connect two devices. - Page 18 1. Connect the enclosed Type C cable to the Type C port of the touchscreen and to the external PC. 2. Using the Avocor UiQ interface or Remote Control select the Type C source button or press the Source Button (see operating buttons) on the Front Connection bar to select Type C.
- Page 19 2. Connect the enclosed USB cable to the corresponding touch USB port (USB-B) of the touchscreen and to the USB port (USB-A) on the external 3. Using the Avocor UiQ interface or Remote Control select the HDMI source button or press the Source Button (see operating buttons) on the Front Connection bar to select HDMI.
-
Page 20: Connecting To An External Pc Using A Displayport Connection
2. Connect the enclosed USB cable to the touch USB port (USB-B) of the touchscreen and to the USB port (USB-A) on the external PC. 3. Using the Avocor UiQ interface or Remote Control select the DisplayPort source button or press the Source Button (see operating buttons) on the Front Connection bar to select DisplayPort. -
Page 21: Installing An Ops Module
Step 5. Ensure the installation is complete before turning on the power. Step 6. Turn on the display. When using an Avocor OPS Pc you should see a green light on the side of the OPS, this will indicate that the OPS PC is switched on and operational. - Page 22 Installing a backpack PC or NUC Backpack PC Mounting VESA Mount to attach third-party bracket and compute devices • • AC power out for backpack pc...
-
Page 23: Warranty & Support
Remember the first instance to look for known faults and how to Postcode/ZIP resolve them on the avocor website www.avocor.com/support County/State Days and hours of operation Please visit www.avocor.com to download the full G-Series user Loading & Parking Available? (Yes or No) manual. Reseller Information (If Known) Organisation Name...
