- Page 1 AVE Series User Manual...
- Page 2 AVE-Series User Manual | 2 E-Series User Manual Table of Contents Contents of Packaging Compliance Information Declaration of Conformity Product Disposal Important safety instructions Safety Precautions Installation Considerations Installation Guide Cleaning Power Considerations Exemptions Warnings Introduction The Display at a Glance Front View Rear Views Front Buttons...
-
Page 3: Contents Of Packaging
AVE-Series User Manual | 3 Contents of Packaging Accessory Carton Quick Start Guide • Remote Control & Batteries • 2x Touch Stylus – 2x3mm • Power Cable – US Cable 2m, UK Cable 2m, EU Cable, 2m • 2x 3m HDMI Cable •... -
Page 4: Compliance Information
AVE-Series User Manual | 4 Compliance Information DECLARATION OF CONFORMITY: AVOCOR hereby declares that the Product Model Numbers: AVE-6530 / AVE-7530 / AVE-8630 Conform with the provisions of: FCC： • FCC CFR Title 47 Part 15 Subpart B Class A, CISPR 22 ANSI C63.4... - Page 5 AVE-Series User Manual | 5 PRODUCT DISPOSAL: The product contains small amounts of tin, lead and/or mercury. Disposal of these materials maybe regulated due to environmental considerations. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC EQUIPMENT (Applicable throughout the European Union and other European countries with separate collection programs). This symbol found on your product or on its packaging, indicates that this product should not be treated as household waste when you wish to dispose of it.
-
Page 6: Important Safety Instructions
AVE-Series User Manual | 6 Important Safety Instructions Before using this display, please read this user manual thoroughly to help protect against property damage and to ensure your personal safety and the safety of others. For your safety, be sure to observe the warnings located in this manual. ... -
Page 7: Installation Considerations
AVE-Series User Manual | 7 Installation Considerations Don't install in a high-temperature environment. If the display is used in high-temperature or in direct sunlight, it may cause the case or other parts to become distorted or damaged, resulting in overheating or electrical shock. - Page 8 AVE-Series User Manual | 8 Installation Guide When installing the displays please follow the installation manual from the manufacturer for the type of mount you have selected. Make sure you use the upper and lower handles on the back of the display while lifting or moving the display, to avoid touching the front panel during the move.
-
Page 9: Power Considerations
AVE-Series User Manual | 9 Cleaning When the surface of the display becomes dirty, please wipe the surface lightly with • a microfibre cloth. If the surface requires additional cleaning, lightly moisten the cloth. • Do not to let any kind of liquid enter the display as it may cause electrical shock or •... - Page 10 AVE-Series User Manual | 10 Exemptions This product isn’t warranted for any damage caused by natural disaster (such as earthquake, thunder, etc.), fire, acts by third parties, accidents, owner’s intentional misuse and fault, or use in other improper conditions. This product isn’t warranted for incidental damages (such as profit loss or ...
-
Page 11: About This Manual

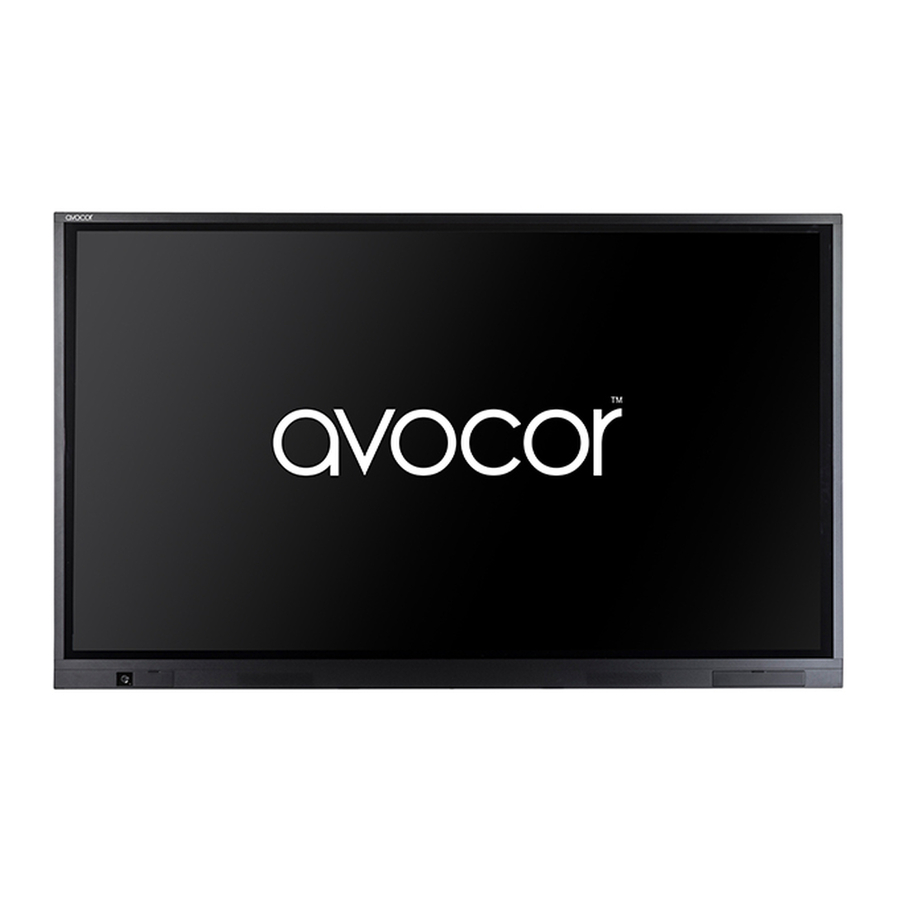

AVE-Series User Manual | 11 Introduction Your new Avocor E-Series is an ultra-high definition interactive touch display supporting full range 4K@60hz resolution, up to 20 simultaneous touch points, multiple source inputs for your computers and peripheral devices, and our new intuitive on-screen display (OSD) menu. -
Page 12: The Display At A Glance
AVE-Series User Manual | 12 The Display at a Glance Front View Rear Views 65”... - Page 13 AVE-Series User Manual | 13 75” / 86”...
- Page 14 AVE-Series User Manual | 14 Front Buttons Button Operation Function Power on/off Indicator LED status: Power Short Press ● Solid Red: Sleep mode ● Solid Blue: Working state Menu Short press Open the Settings menu Source Short press Open the Source menu Mute Short press Mutes the audio...
-
Page 15: Display Inputs
AVE-Series User Manual | 15 Display Inputs Front Ports... -
Page 16: Rear Ports
AVE-Series User Manual | 16 Rear Ports • 75” / 86” • 65”... -
Page 17: Remote Control
AVE-Series User Manual | 17 Remote Control... - Page 18 AVE-Series User Manual | 18 Inserting the Batteries To install batteries in the remote control: Press down the tab on the cover plate and pull the cover plate up. Insert the included batteries. Ensuring that the polarities correctly match the (+) and (-) markings inside the battery compartment.
-
Page 19: Switching Off
AVE-Series User Manual | 19 Switching the Avocor display on and off Switching on 1. Plug the end of the supplied power cord into the display 2. Connect the other end to the power source. 3. Turn on the main power switch at the side of the display. The power LED indicator lights Red to indicate that the display is in “standby”... -
Page 20: Selecting The Source
AVE-Series User Manual | 20 Selecting the Source You can access a number of sources on the Avocor AVE displays including, HDMI, DisplayPort, & OPS. The Source button is located on the Connect & Control Bar or on the Remote Control. - Page 21 AVE-Series User Manual | 21 Connecting to an external PC using a HDMI connection In addition to a HDMI connection, a USB touch connection is required when connecting an external PC. Connect the enclosed HDMI cable to the HDMI port of the touchscreen and to the external PC.
-
Page 22: Connecting To An External Pc Using A Displayport Connection
AVE-Series User Manual | 22 Connecting to an external PC using a DisplayPort connection In addition to a DisplayPort connection, a USB touch connection is required when connecting an external PC. Connect a DisplayPort cable to the DisplayPort port of the touchscreen and to the external PC. -
Page 23: Enabling The Touch Screen
AVE-Series User Manual | 23 Enabling the Touch Screen Before setting up your display to support touch screen capability, ensure that: The touch screen controller host computer is turned off. • The display is turned on. • The video output from the computer is connected to a video input on the display. •... -
Page 24: Installing An Ops Module
Step 5. Ensure the installation is complete before turning on the power. Step 6. Turn on the display. When using an Avocor OPS Pc you should see a green light on the side of the OPS, this will indicate that the OPS PC is switched on and operational. - Page 25 AVE-Series User Manual | 25 Connecting a Control System RS232 Connection Use a straight-through RS-232 cable with a 9-pin male connector to connect a PC or control/ automation system to the RS-232 port on the display.
-
Page 26: Using The On-Screen Display Menus
AVE-Series User Manual | 26 Using the On-Screen Display Menus To display the on-screen menus, press MENU on the Connect & Control bar or on the Remote Control. To select a menu, use the buttons to highlight it. Then, press the to enter that sub-menu To select a menu item, use buttons to highlight it. -
Page 27: Picture Settings
AVE-Series User Manual | 27 Picture Settings Use the controls in the Picture Settings Menu to calibrate each display input to achieve optimum picture quality. Press to select one of the following Picture Modes of the display Picture Mode Options: Standard / Soft / Bright / User Default: Standard Increase or decrease the picture contrast of the display Range: 0~100... -
Page 28: Audio Settings
AVE-Series User Manual | 28 Audio Settings This menu is used for adjusting audio settings. Press to select one of the following Sound Modes of the display. Sound Mode Options: Standard / Music / Sports / User Default: Standard Select Bass from the Audio Settings menu to cut or boost the low audio frequencies. Range: 0~100 Bass Default: 50... -
Page 29: Osd Menu Settings
AVE-Series User Manual | 29 OSD Menu Settings This menu is used to make initial set-up adjustments to the OSD (On-Screen Display) menu and other on-screen messages Select and press ENTER to change the language of the display Options: English / French / Italian / German; Spanish / Finnish / Swedish / Norwegian / Dutch / Language Setting Danish / Arabic / Russian / Slovenian / Serbian / Croatian / Hungarian / Slovakian / Polish... - Page 30 AVE-Series User Manual | 30 Select to change the OPS Start Up of the display OPS Start Up Options: Only OPS Source / Any Source Default: Only OPS Source Select to enable WOL / Wake on LAN of the display Wake on LAN Options: On / Off Default: Off...
- Page 31 AVE-Series User Manual | 31 RS-232 Command Codes Connect RS-232 port to the PC or controlling product. Enable RS-232 serial port connection and complete the following configuration. Port: COM1 (Set according to PC or controlling product’s port number) Baud rate 38400 Odd/even check None...
- Page 32 AVE-Series User Manual | 32 Backlight Brightness Note: XX indicates the value of backlight brightness (0 - 100), corresponding to the hexadecimal (00 - 64). Settings 7F 08 99 A2 B3 C4 02 FF 01 20 CF 7F 09 99 A2 B3 C4 02 FF 01 20 01 CF 7F 08 99 A2 B3 C4 02 FF 01 37 CF 7F 09 99 A2 B3 C4 02 FF 01 37 XX CF Power Supply...
-
Page 33: Display Dimensions
AVE-Series User Manual | 33 Display Dimensions 65” Dimensions 75” Dimensions 86” Dimensions... - Page 34 AVE-Series User Manual | 34 For further FAQ’s please visit http://www.avocor.com/support...
-
Page 35: Warranty & Support
Warranty Support team. Please provide as much information to the support team about the fault and any steps you have taken in trying to try and resolve the fault. Remember the first instance to look for known faults and how to resolve them on the avocor Website www.avocor.com/support Organization Name...
