Quick Start Guide
[Models AVE-6520, AVE-7520, AVE-8620]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E Series and is the answer not in the manual?

Questions and answers

Related Manuals for AVOCOR E Series

Summary of Contents for AVOCOR E Series

  • Page 1 Quick Start Guide [Models AVE-6520, AVE-7520, AVE-8620]...
  • Page 2 E Series Quick Start Guide Table of Contents Contents of packaging Installation Guide The Display at a Glance Display Input Sources The Remote Control Switching the display on and off Source Selection Connecting to the Display Connecting to an external PC using an HDMI connection...

  • Page 3: Contents Of Packaging

    Contents of packaging Avocor Interactive LED Display Accessory Carton Quick Start Guide ● Remote Control & Batteries ● USB Drive ● 2x Touch Stylus – 1x 3mm & 1x 6mm ● 1x Eraser ● 1x 2m US Power Cable ●...
  • Page 4 Installation Guide When installing the displays please follow the installation manual from the manufacturer for the type of mount you have selected. Make sure you use the upper and lower handles on the back of the display while lifting or moving the display, to avoid touching the front panel during the move.

  • Page 5: The Display At A Glance

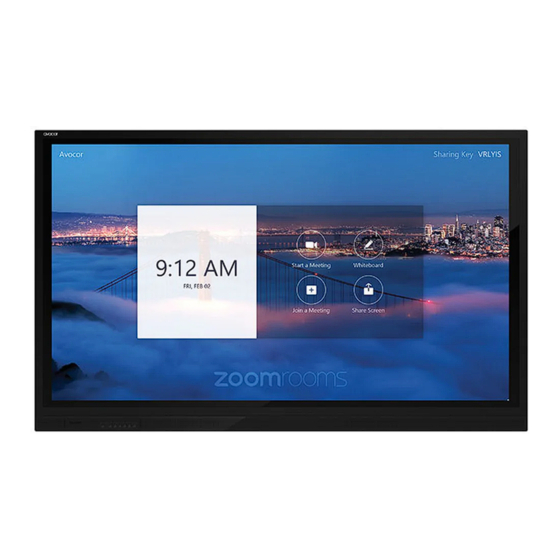

    The Display at a Glance Front View Rear View v.05_12_2018...
  • Page 6 Speakers Power Button Front Buttons Power Switch Power Supply Plug OPS Slot Rear Parts v.05_12_2018...
  • Page 7 Connect & Control Bar Keypad Functions You can use the Connect & Control Bar instead of the remote control to operate the display controls. The keypad operates as follows: Power Button - Press the button to turn on/off the display. Source Button - Press the button to select a media source.
  • Page 8 AVE-6520 / 7520 / 8620 Display Inputs Side Ports Rear Ports v.05_12_2018...

  • Page 9: Remote Control & Functions

    Remote Control & Functions Label Description Turns the touchscreen on and off. Selects a media source. Select the OPS PC or go back to the previous source. Blanks the Touchscreen. Press again to restore. Freezes the Touchscreen. Press again to restore.

  • Page 10: Notes On Remote Control Operation

    Inserting the Batteries To install batteries in the remote control: Press down the tab on the cover plate and pull the cover plate up. Insert the included batteries. Ensuring that the polarities correctly match the (+) and (-) markings inside the battery compartment. Insert the lower tab of the cover into the opening and press down the cover until it clicks in place.

  • Page 11: Switching Off

    Switching the Avocor display on and off Switching on 1. Plug the end of the supplied power cord into side of the display 2. Connect the other end to the power source. 3. Turn on the main power switch at the side of the display. The power LED indicator lights Red to indicate that the display is in “standby”...

  • Page 12: Selecting The Source

    Selecting the Source You can access a number of sources on the Avocor AVE displays including, HDMI, DisplayPort, VGA & OPS. The Source button is located on the Connect & Control Bar or on the Remote Control. Once the menu has been selected, you will see the option to select the source you require.
  • Page 13 Connecting to an external PC using a HDMI connection In addition to a HDMI connection, a USB touch connection is required when connecting an external PC. Connect the enclosed HDMI cable to the HDMI port of the touchscreen and to the external PC.
  • Page 14 Connecting to an external PC using a VGA connection In addition to a VGA connection, a USB touch connection is required when connecting an external PC. Connect the VGA cable to the VGA port of the touchscreen and to the external PC. Connect the enclosed USB cable to the corresponding touch USB port (USB-B) of the touchscreen and to the USB port (USB-A) on the external PC.

  • Page 15: Connecting To An External Pc Using A Displayport Connection

    Connecting to an external PC using a DisplayPort connection In addition to a DisplayPort connection, a USB touch connection is required when connecting an external PC. Connect a DisplayPort cable to the DisplayPort port of the touchscreen and to the external PC.

  • Page 16: Enabling The Touch Screen

    Enabling the Touch Screen Before setting up your display to support touch screen capability, ensure that: The touch screen controller host computer is turned off. ● The display is turned on. ● The video output from the computer is connected to a video input on the display. ●...

  • Page 17: Installing An Ops Module

    Step 5. Ensure the installation is complete before turning on the power. Step 6. Turn on the display. When using an Avocor OPS Pc you should see a green light on the side of the OPS, this will indicate that the OPS PC is switched on and operational.

  • Page 18: Warranty & Support

    Warranty Support team. Please provide as much information to the support team about the fault and any steps you have taken in trying to try and resolve the fault. Remember the first instance to look for known faults and how to resolve them on the avocor Website www.avocor.com/support Organisation Name...
  • Page 19 Notes v.05_12_2018...
  • Page 20 v.05_12_2018...

This manual is also suitable for:

Ave-6520Ave-7520Ave-8620
