P.O. BOX 557 204 INDUSTRIAL PARK DRIVE
LAKEFIELD, MINNESOTA USA 56150-0577

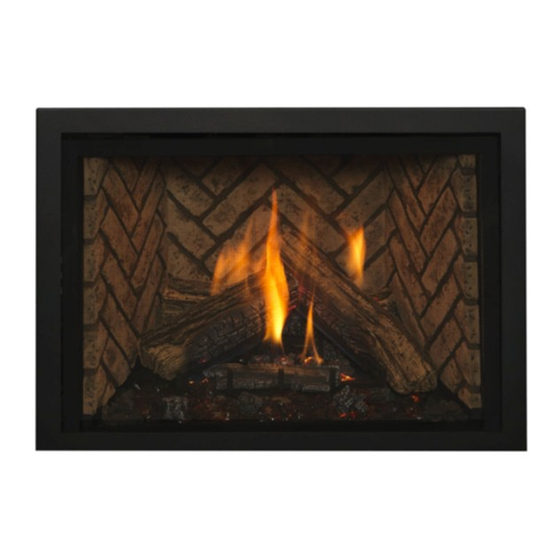

Nordik 48 DV
Model #NDK-48-DV
Direct Vent Gas Fireplace
Evolution of Fire
with the EVO Elevated Burner
English and French installation manuals are available
through your local dealer or website. Visit our website
www.kozyheat.com.
Les manuels d'installation en français et en anglais sont
disponibles chez votre détaillant local. Visitez
www.kozyheat.com.
⚠ WARNING: FIRE OR EXPLOSION
HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
Do not touch any electrical switch; do not
•
use any phone in your building.
Leave the building immediately.
•
•
Immediately call your gas supplier from a
neighbor's phone. Follow the gas
supplier's Instructions.
•
If you cannot reach your gas supplier, call
the fire department.
Installation and service must be performed by
a qualified installer, service agency or the gas
supplier
Hussong Mfg. Co, Inc.
NDK-48-DV - PFS Report No. 23-196
INSTALLATION AND
OPERATION MANUAL
This appliance may be installed in an aftermarket, permanently
located, manufactured home (USA only) or mobile home, where
not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the
rating plate. This appliance is not convertible for use with other
gases, unless a certified kit is used.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
1
Starting Serial Number: 24 N48DV00001 04
Rev. 1 - November 2023
