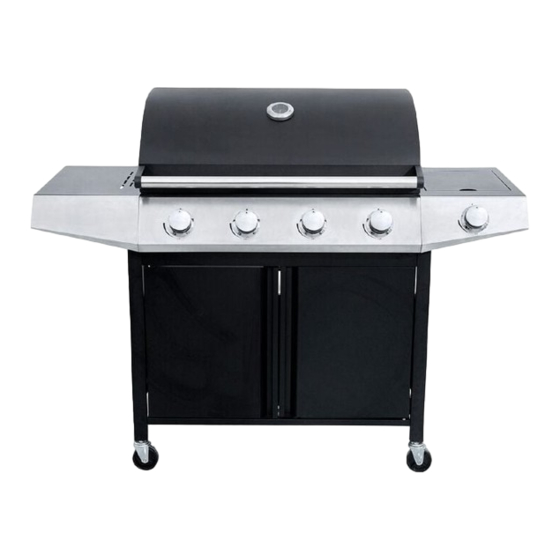

gascraft NEWPORT GXL401-SB Manual

4 burner bbq with side burner
Hide thumbs
Table of Contents

Advertisement

Quick Links

NEWPORT
4 BURNER BBQ
WITH SIDE
BURNER
Photographs are not to scale.
Specifications subject to
change without prior notice.
IMPORTANT!
Assembler/Installer: These instructions must be given to the final user of this
BBQ. They contain important instructions and warnings for continued safe use
of the BBQ.
WARNING
FOR YO
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
Open barbecue lid or hood.
If odour continues, discontinue use and
contact your local dealer.
• For outdoor use only. Not for commercial use.
• Read instructions before using the appliance. Failure to follow instructions could result
in death, serious bodily injury, and/or property loss.
• Warning: accessible parts may be very hot. Keep young children away.
• Do not move the appliance during use.
• Turn off the gas supply at the gas bottle after use.
• Any modification of the appliance, misuse, or failure to follow the instructions may be
dangerous and will invalidate your warranty. This does not affect your statutory rights.
• Retain these instructions for future reference.
• Leak test your barbecue annually. Check the hose connections are tight and leak test
them each time you reconnect the gas bottle.
UR SAFETY
FOR YOUR SAFETY
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
1
2531
23
2531DO-0049

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEWPORT GXL401-SB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for gascraft NEWPORT GXL401-SB

Summary of Contents for gascraft NEWPORT GXL401-SB

  • Page 1 NEWPORT 4 BURNER BBQ WITH SIDE BURNER Photographs are not to scale. Specifications subject to change without prior notice. 2531 2531DO-0049 IMPORTANT! Assembler/Installer: These instructions must be given to the final user of this BBQ. They contain important instructions and warnings for continued safe use of the BBQ.

  • Page 2: General Information

    GENERAL INFORMATION If you are unable to correct the leak by tightening the Gas Installation Code connections, turn off the gas and contact the supplier immediately. This BBQ is to be used with LPG only. Always ensure the barbecue is kept away from flammable materials and the gas cylinder clear of any heat source.

  • Page 3: Protect Children

    Never alter or modify the regulator or gas supply assembly. This barbecue must not be used indoors. Do not leave this BBQ unattended when lit and in use. TECHNICAL INFORMATION GASCRAFT NEWPORT 4B W/ SIDE BURNER Model No GXL401-SB Gas Consumption MJ/h 51.12 MJ/h total Injector Size 0.80mm (main bnr) 0.82mm (side bnr)

  • Page 4: Exploded Diagram

    EXPLODED DIAGRAM...
  • Page 5 Grill body Left front side leg Side burner Right back side leg Left side table Right front side leg Flame tamer Leg supporter Cooking grid Gas cylinder hanger Cooking plate Castor (With lock) Warming rack Castor (No lock) Back panel Door cross beam Side panel Magnet...
  • Page 6 ASSEMBLY INSTRUCTIONS M6 x 10mm M6 x 10mm...
  • Page 7 M6 x 10mm M6 x 10mm...
  • Page 8 M6 x 10mm...
  • Page 9 M6 x 10mm...
  • Page 10 M6 x 10mm M6 x 55mm...
  • Page 11 M4 x 8mm M6 x 10mm x 10...

  • Page 12: To Check For Leaks

    BEFORE USE CHECK FOR LEAKS After the connection is made between hose assembly and BBQ valve, a leak test must be performed before the BBQ can be operated to check the connections are gas-tight. Never check for leaks with a naked flame, always use a soapy water solution TO CHECK FOR LEAKS Make 1 cup of leak detecting solution by mixing one part washing up liquid with 3 parts water.

  • Page 13: Operation

    GENERAL ASSEMBLY Connecting & Disconnecting to Gas Source 7. Leak test the connection using a soapy water solution. Ensure no bubbles appear before proceeding. 8. Slowly open the gas cylinder valve all the way. Do not IMPORTANT: Before connecting and put excessive force on the valve at the full open position, disconnecting barbecue to gas source, make sure to avoid damaging the valve.

  • Page 14: Manual Lighting Instructions

    Grill Cooking steps. If the BBQ still fails to light, please refer to the Manual Lighting Instructions. The burners heat up the flame tamers underneath the grill, • Confirm each burner is alight before attempting to light which in turn heat the food on the grill. The natural food another burner.

  • Page 15: Barbecue Body

    VERY IMPORTANT INFORMATION When refitting the burners , be careful to check that the neck of the burner fits over the valve outlet. CARE AND PROTECTION OF STAINLESS It is quite normal for surface rust to be present on the STEEL SURFACES burners.

  • Page 16: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Burner will not light using LPG gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets Clean jets and gas hose or gas hose Electrode or igniton button wire Reconnect wire...
