OWNERS MANUAL & QUICK START GUIDE
NOTE : PLEASE READ ALL THE INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.

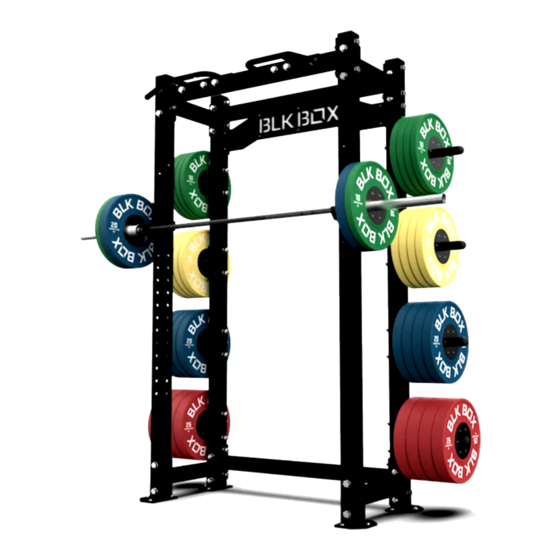

BLK BOX
SAMSON HALF RACK
21-0155
PRODUCT SPECIFICATION
-
PRODUCT WEIGHT
-
MAX USER WEIGHT
-
MAX TRAINING WEIGHT
-
DIMENSIONS
-
SAFE WORKING ZONE
175kg
150kg
450kg
1900mm x 800mm x 2550mm
2900mm x 1800mm x 3000mm
#MADEINBELFAST
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BLK BOX SAMSON 21-0155
Summary of Contents for BLK BOX SAMSON 21-0155

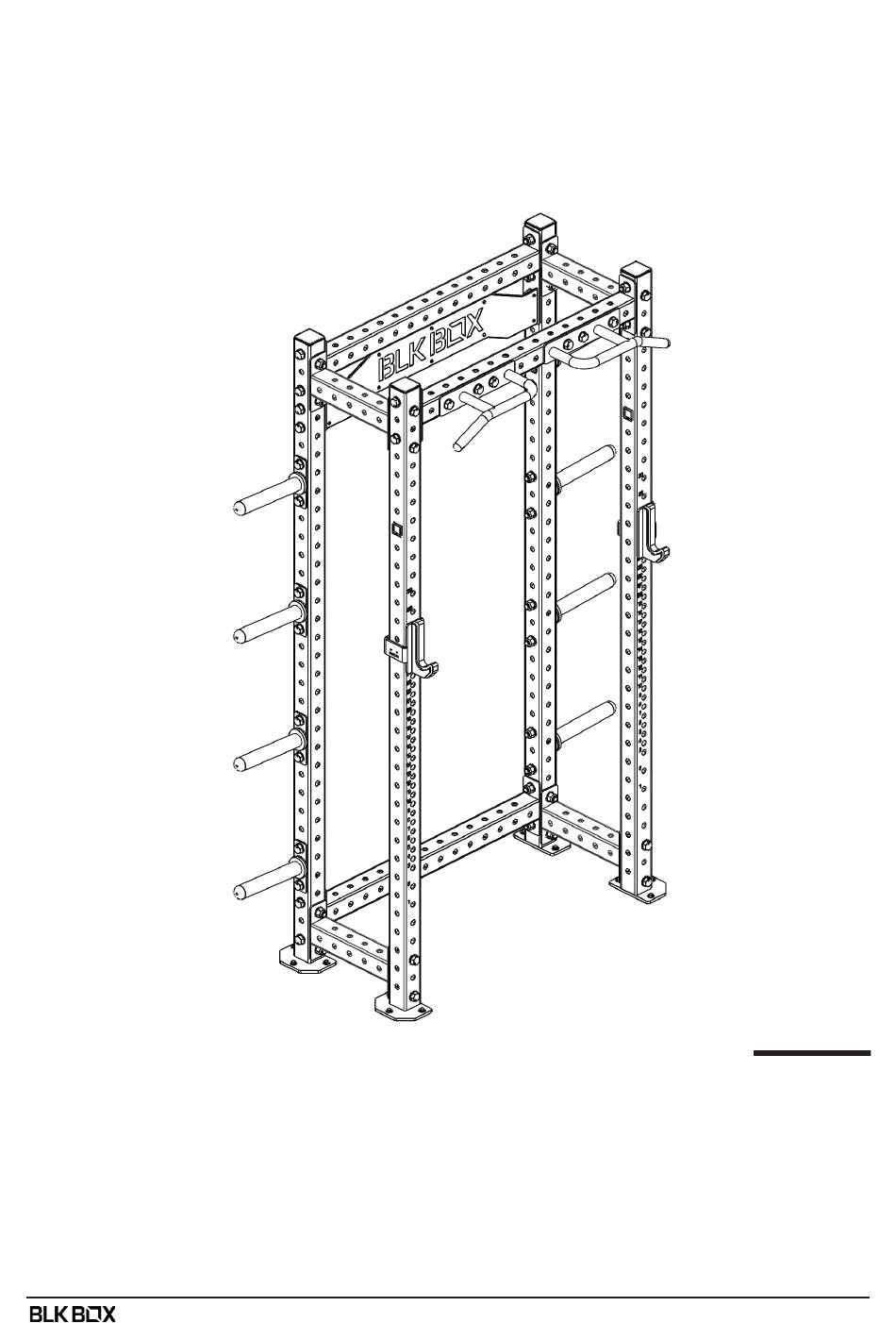

- Page 1 BLK BOX SAMSON HALF RACK 21-0155 PRODUCT SPECIFICATION PRODUCT WEIGHT 175kg MAX USER WEIGHT 150kg OWNERS MANUAL & QUICK START GUIDE MAX TRAINING WEIGHT 450kg 1900mm x 800mm x 2550mm DIMENSIONS NOTE : PLEASE READ ALL THE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
- Page 2 WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT.
- Page 3 ASSEMBLY BOLT 1QTY BRANDING BOX ( 21-0047 ] AND 1QTY 1.2 BOX ( 21-0045 ) BETWEEN 2QTY UPRIGHTS ( 21-0058 ) WITH BOLT ASSEMBLY AS SHOWN. ENSURE LOGO ON BRANDING BOX IS FACING FORWARD, LOGOS ON UPRIGHTS ARE FACING OUT AND ALL BOLTS FACING INWARDS. 10.0010 10.0023 x2 10.0028...
- Page 4 BOLT 1QTY MULTIGRIP ( 21-0165 ) TO 1QTY 1.2 BOX ( 21-0045 ) AND ATTACH BETWEEN 2QTY WESTSIDE UPRIGHTS ( 21-0059 & 21-0060 ). CONNECT TO EXISTING ASSEMBLY USING 4QTY 0.4 BOX ( 21-0043 ) WITH BOLT ASSEMBLY AS SHOWN. ENSURE LOGO ON UPRIGHTS ARE FACING OUT AND BOLTS ARE FACING INWARD.
- Page 5 TIGHTEN ALL BOLT ASSEMBLIES WITHIN THE CIRCLE TO SPECIFIED TORQUE. ENSURE ALL UPRIGHTS ARE PLUMB. DRILL AND SECURE THE MIDDLE HOLE ON EACH UPRIGHT AS SHOWN IN GUIDE. REMOVE ALL BOTTOM CROSSMEMBERS, DRILL AND SECURE REMAINING HOLES ON UPRIGHTS AS SHOWN IN GUIDE. REATTACH THE BOTTOM CROSSMEMBERS. -DRILL 10MM HOLE THROUGH FLOOR COVERING, 90MM...
- Page 6 BOLT 8QTY UTILITY PEGS ( 21-0234 ) TO UPRIGHTS ( 21-0058 ) WITH BOLT ASSEMBLY AS SHOWN TIGHTEN TO 80Nm. 10.0010 10.0023 x2 10.0028 #MADEINBELFAST...
- Page 7 1:1 SCALE FASTENERS M20x120 BOLT M10x80 SLEEVE ANCHOR 10-0031 M10 FLAT WASHER NYLOCK NUT 10-0019 10-0024 FOR TERMS AND CONDITIONS VISIT OUR WEBSITE AT www.blkboxfitness.com/pages/terms-conditions GET IN TOUCH TEL: 028 9045 4123 EMAIL: info@blkboxfitness.com DISCOVER MORE AT: www.blkboxfitness.com #MADEINBELFAST...
