OWNERS MANUAL & QUICK START GUIDE
NOTE : PLEASE READ ALL THE INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
BLK BOX

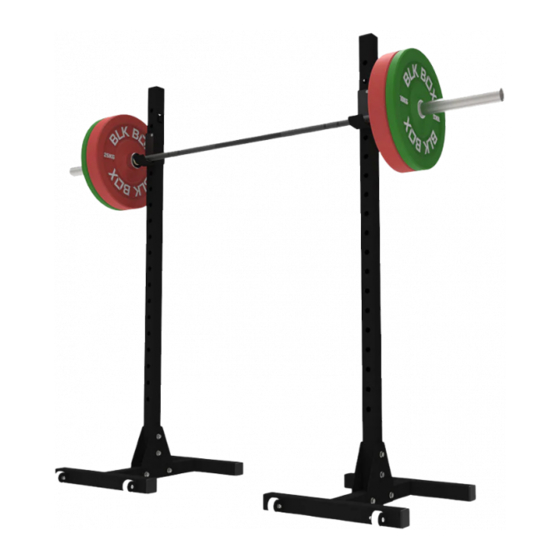

HARLAND SQUAT STAND
21-0704-0A
PRODUCT SPECIFICATION
PRODUCT WEIGHT
MAX USER WEIGHT
MAX USER
MAX TRAINING WEIGHT
DIMENSIONS
SAFE WORKING ZONE
-
-
-
-
-
1700mm x 650mm x 1820mm
-
2700mm x 1850mm x 2684mm
#MADEINBELFAST
65kg
n/a
1
350kg
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BLK BOX HARLAND SQUAT STAND
Summary of Contents for BLK BOX HARLAND SQUAT STAND
- Page 1 BLK BOX HARLAND SQUAT STAND 21-0704-0A PRODUCT SPECIFICATION PRODUCT WEIGHT 65kg MAX USER WEIGHT MAX USER OWNERS MANUAL & QUICK START GUIDE MAX TRAINING WEIGHT 350kg DIMENSIONS 1700mm x 650mm x 1820mm NOTE : PLEASE READ ALL THE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
-
Page 2: Tools Required
WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT. - Page 3 PARTS & ATTACHMENTS #MADEINBELFAST...

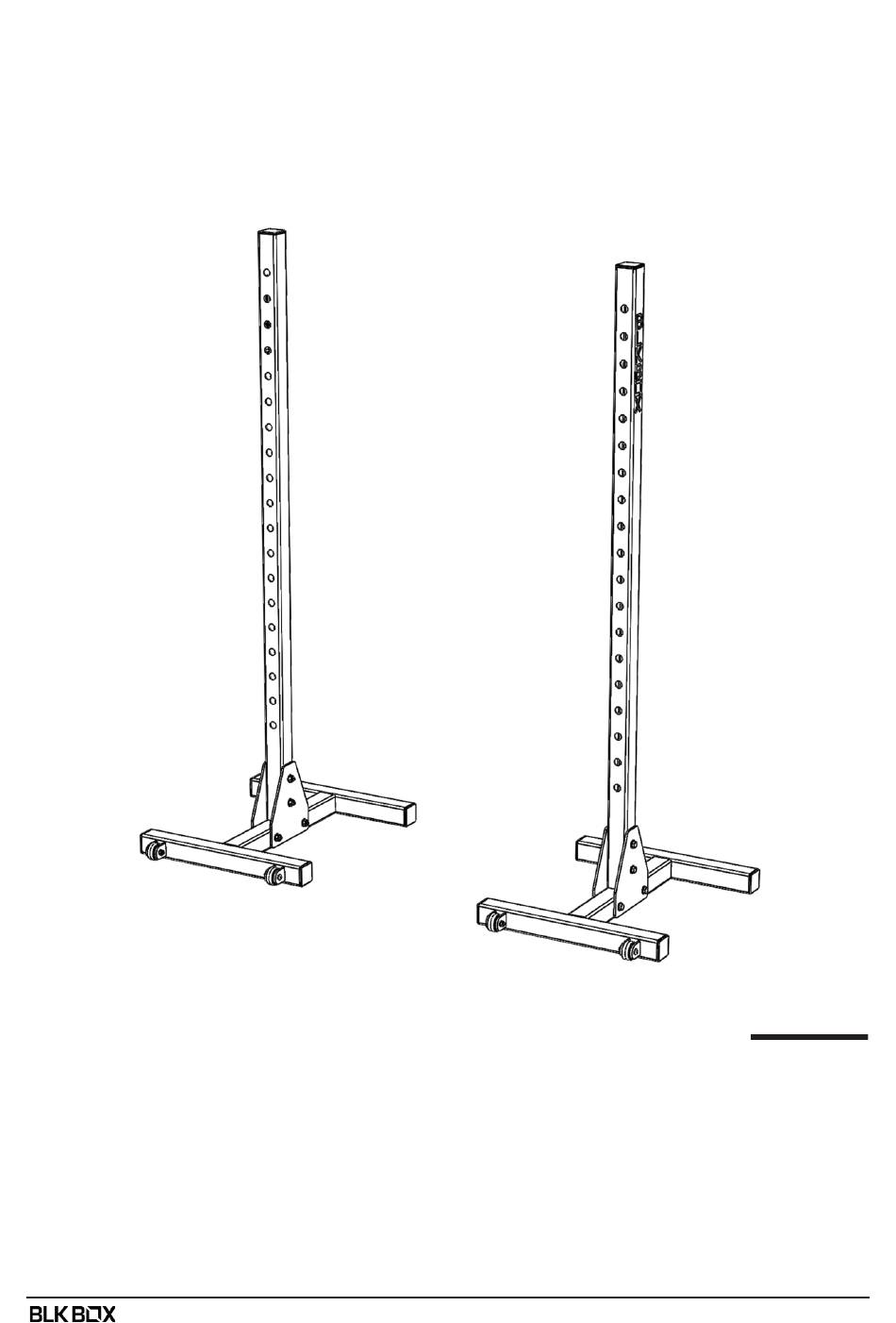

- Page 4 PLACE 1QTY OF THE HARLAD SQUAT STAND UPRIGHT (21-0703-0A) INTO 1QTY OF THE HARLAND SQUAT STAND BASE (21-0703-0A) -ENSURING THE TABS OF THE UPRIGHT ALIGN WITH THE HOLES IN THE BASE. PLEASE ALSO ENSURE THE BLK BOX LOGO IF FAC- ING OUTWARDS FROM THE RACK.
- Page 5 FASTEN THE UPRIGHT IN PLACE BY PLACING 2QTY GOLIATH SIDE PLATES (20-0472-0A) EITHER SIDE OF THE PLATE, AND FASTENING USING 4QTY M10X90 HEX HEAD BOLT (10-0008), 8QTY M10 WASHER (10-0019) AND 4QTY M10 NYLOC NUT (10-0024). 10-0019 x 4 10-0024 x 4 10-0008 x 4 10-0019 x 4 #MADEINBELFAST...
- Page 6 #MADEINBELFAST...
- Page 7 ONCE COMPLETED. REPEAT STEP USING OTHER UPRIGHT AND BASE. ONCE AGAIN ENSURE TABS ALIGN WITH SLOTS, AND THE BLK BOX LOGO FACES OUTWARDS FROM THE RACK. 10-0008 x 4 10-0019 x 4 10-0019 x 4 10-0024 x 4 #MADEINBELFAST...
- Page 8 #MADEINBELFAST...
- Page 9 THE HARLAND SQUAT STAND HAS NOW BEEN ASSEMBLED #MADEINBELFAST...
- Page 10 1:1 SCALE FASTENERS M10 x 90 HEX HEAD BOLT 10-0008 M10 WASHER 10-0019 M10 NYLOC NUT 10-0024 FOR TERMS AND CONDITIONS VISIT OUR WEBSITE AT www.blkboxfitness.com/pages/terms-conditions GET IN TOUCH TEL: 028 9045 4123 EMAIL: info@blkboxfitness.com DISCOVER MORE AT: www.blkboxfitness.com #MADEINBELFAST...
