OWNERS MANUAL & QUICK START GUIDE
NOTE : PLEASE READ ALL THE INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
BLK BOX
BLACKOUT POWER RACK
21-0730
PRODUCT WEIGHT
MAX USER WEIGHT
MAX USER
MAX TRAINING WEIGHT
DIMENSIONS
SAFE WORKING ZONE
PRODUCT SPECIFICATION
-
-
-
-
-
1320mmx1320mmx2208mm
-
2000mmx2400mmx2700mm
#MADEINBELFAST
105kg
125kg
1
300kg
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BLK BOX 21-0730
Summary of Contents for BLK BOX 21-0730

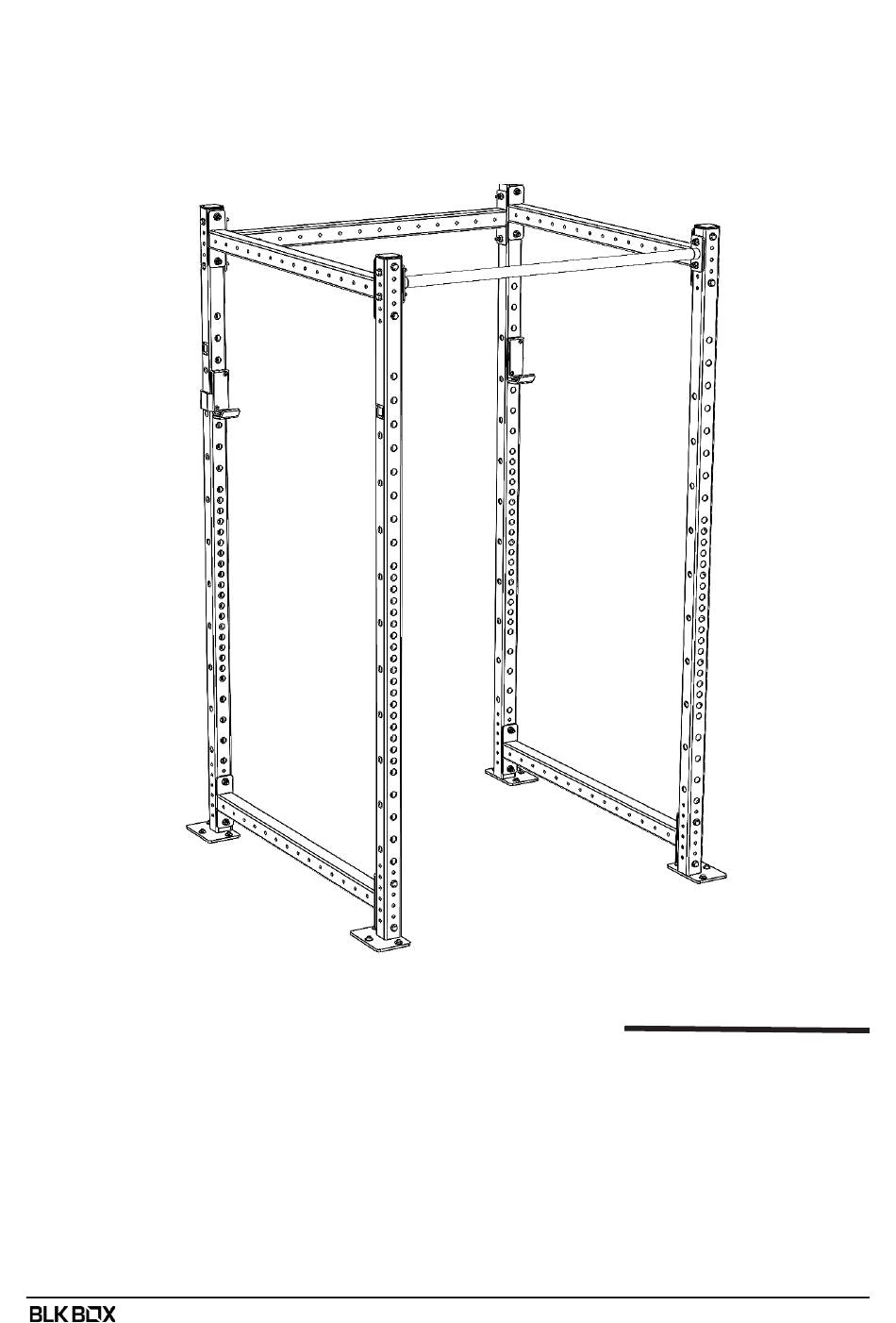

- Page 1 BLK BOX BLACKOUT POWER RACK 21-0730 PRODUCT SPECIFICATION 105kg PRODUCT WEIGHT MAX USER WEIGHT 125kg MAX USER OWNERS MANUAL & QUICK START GUIDE MAX TRAINING WEIGHT 300kg DIMENSIONS 1320mmx1320mmx2208mm NOTE : PLEASE READ ALL THE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
- Page 2 WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PRO- TECTIVE EQUIPMENT (PPE).
- Page 3 ASSEMBLY BOLT 2QTY 1.2 BOX CM (21-0013) TO 2QTY POWER RACK UPRIGHT (21-0739) WITH BOLT ASSEMBLY AS SHOWN. REPEAT ABOVE STEP. 10.0008 10.0019 x2 10.0024 10.0008 10.0019 x2 10.0024 #MADEINBELFAST...
- Page 4 BOLT 1QTY 1.2 BOX CM (21-0013) TO 2QTY BACK UPRIGHT (21-0739) WITH BOLT ASSEMBLY AS SHOWN. BOLT 1QTY 1.2 SINGLE BAR (21-0015) TO 2QTY FRONT UPRIGHT (21-0740) WITH BOLT ASSEMBLY AS SHOWN. ENSURE THAT ALL BLK BOX LOGOS ARE FACING OUTWARDS AND BOLTS ARE FACING IN- WARDS. 10.0008 10.0019 x2 10.0024...
- Page 5 TIGHTEN ALL BOLT ASSEMBLIES TO THE SPECIFIED TORQUE. ENSURE UPRIGHTS ARE PLUMB AND ALL SINGLE BARS ARE LEVEL. DRILL AND SECURE UPRIGHTS AS SHOWN IN 4 STEP FLOOR MOUNTING GUIDE BELOW. FLOOR MOUNTING HAMMER SLEEVE ANCHOR INTO THE HOLE. DRILL 10MM HOLE, 90MM DEEP USING PLATE AS A GUIDE. TIGHTEN SLEEVE ANCHOR TO SPECIFIED TORQUE VACUUM OUT THE DUST.
- Page 6 1:1 SCALE FASTENERS M10x80 SLEEVE ANCHOR 10-0031 M10x90 BOLT 10-0008 M10 FLAT WASHER NYLOCK NUT 10-0019 10-0024 FOR TERMS AND CONDITIONS VISIT OUR WEBSITE AT: www.blkboxfitness.com/pages/terms-conditions GET IN TOUCH: TEL: 028 9045 4123 EMAIL: info@blkboxfitness.com DISCOVER MORE AT: www.blkboxfitness.com #MADEINBELFAST...
