OWNERS MANUAL & QUICK START GUIDE
NOTE : PLEASE READ ALL THE INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
BLK BOX
WEIGHTS TREE
21-0215-0A
PRODUCT WEIGHT
MAX LOAD
DIMENSIONS
SAFE WORKING ZONE
PRODUCT SPECIFICATION
-
-
-
982mm x 1466mm x 800mm
-
1082mm x 2700mm x 2400mm
#MADEINBELFAST
36kg
500kg
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BLK BOX WEIGHTS TREE
Summary of Contents for BLK BOX WEIGHTS TREE
- Page 1 BLK BOX WEIGHTS TREE 21-0215-0A PRODUCT SPECIFICATION 36kg PRODUCT WEIGHT OWNERS MANUAL & QUICK START GUIDE 500kg MAX LOAD 982mm x 1466mm x 800mm DIMENSIONS NOTE : PLEASE READ ALL THE INSTRUCTIONS 1082mm x 2700mm x 2400mm CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
-
Page 2: Tools Required

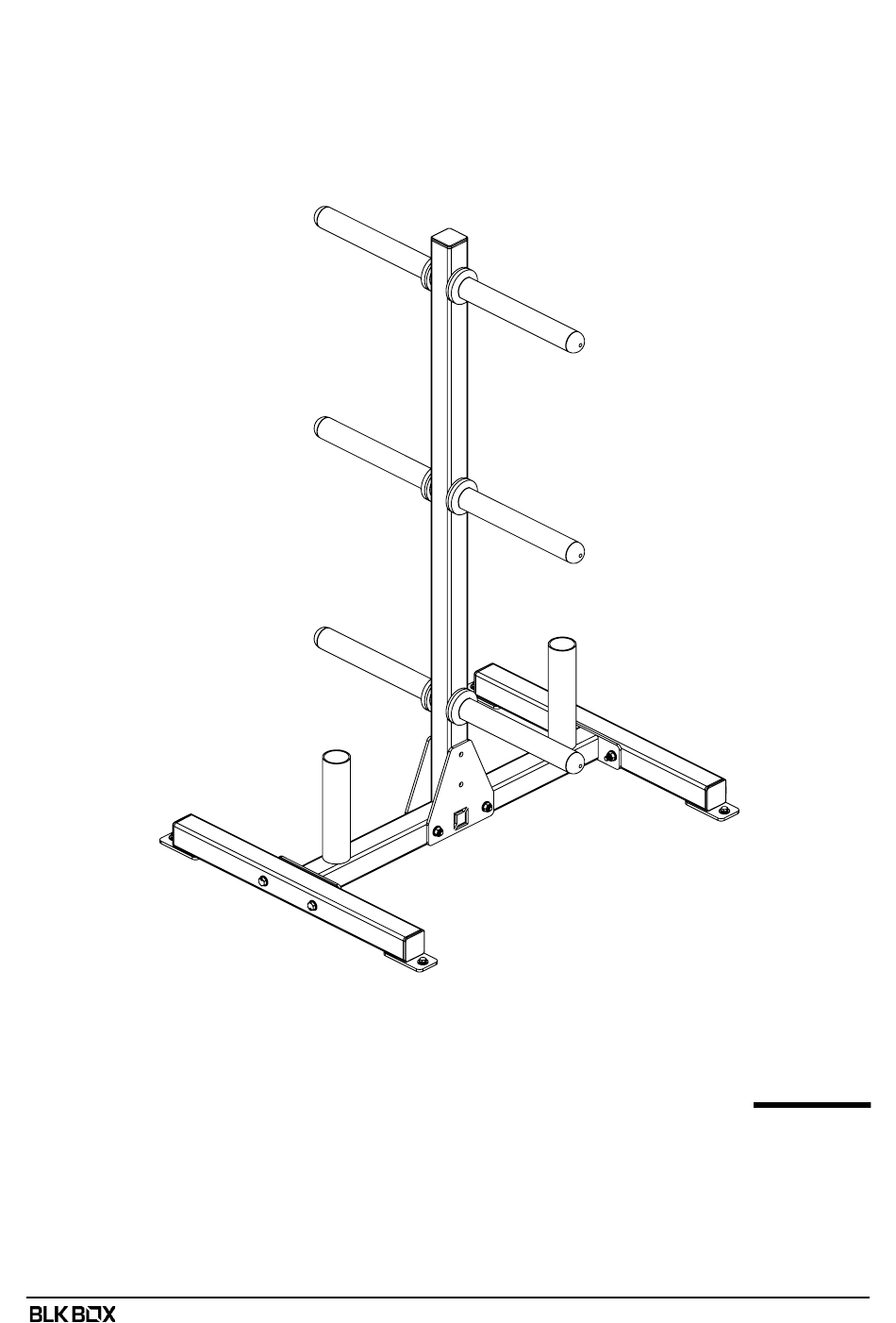

WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT. - Page 3 ASSEMBLY BOLT 1 QTY WEIGHT TREE CM (21-0254-0A) BETWEEN 2QTY WEIGHT TREE SUPPORTS (21-0252-0A) AND BOLT 1QTY WEIGHT TREE UPRIGHT(21-0253-0A) TO THE CENTRE OF THE WEIGHT TREE CM (21-0254-0A). ATTACH ALL BOLTS ASSEMBLES AS SHOWN. ENSURE ALL BOLTS ARE FACING INWARDS. 10.0008 10.0019 x2 10.0024...
- Page 4 TIGHTEN ALL BOLTS WITHIN THE CIRCLE TO SPECIFIED TORQUE. DRILL AND SECURE HOLES ON WEIGHT TREE SUPPORTS (21-0252-0A)AS SHOWN IN GUIDE. 10.0031 10.0019 #MADEINBELFAST...
- Page 5 1:1 SCALE FASTENERS M10x80 SLEEVE ANCHOR 10-0031 M10x90 BOLT 10-0008 M10 FLAT WASHER NYLOCK NUT 10-0019 10-0024 FOR TERMS AND CONDITIONS VISIT OUR WEBSITE AT www.blkboxfitness.com/pages/terms-conditions GET IN TOUCH TEL: 028 9045 4123 EMAIL: info@blkboxfitness.com DISCOVER MORE AT: www.blkboxfitness.com #MADEINBELFAST...
- Page 6 THIS IS A BLANK PAGE #MADEINBELFAST...
- Page 7 THIS IS A BLANK PAGE #MADEINBELFAST...
