Summary of Contents for TRIOBIKE BOXTER

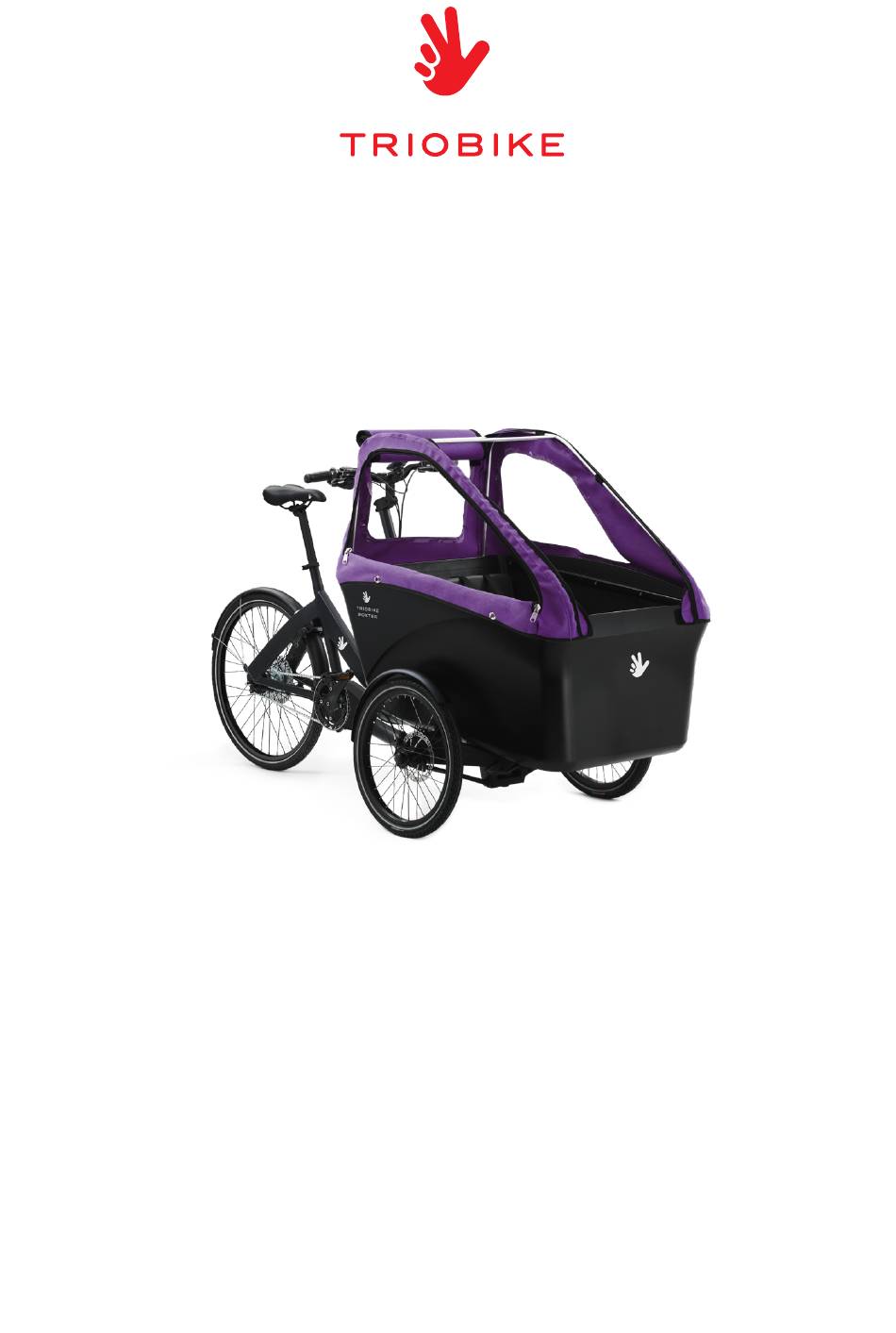

- Page 1 BOXTER HOOD INSTALLATION MANUAL ENGLISH V 1.7...
- Page 2 2 KIDS HOOD - PARTS TRIOBIKE MODEL: XXX COLOR: YYY QR code - scan to download the manual 1x 2 kids hood fabric rear front 4x hood frame brackets 8x M4,2x13 TX20 ISO14586 screws 2x 2 kids frame tubes 2x Velcro stripes...
- Page 3 4 KIDS HOOD - PARTS TRIOBIKE MODEL: XXX COLOR: YYY QR code - scan to download the manual 1x 4 kids hood fabric rear front 4x hood frame brackets 8x M4,2x13 TX20 ISO14586 screws 2x 4 kids frame tubes 2x Velcro stripes...
- Page 4 INSTALLING THE HOOD 3 Nm small hole on the inside big hole on the outside rear front Open the box and place the parts on a flat and clean surface. Take the 2 side frame tubes and insert them into the front and rear brackets pins. The Take the 4 mounting brackets and mount them on the prepared positions using 2x big holes have to point to the outside.
- Page 5 INSTALLING THE HOOD INSTALLING THE HOOD put lock tight Take the 2 short straight bars and fix them to the side frame tubes with the DIN912 Apply 2 Velcro stripes on the box front, in the positions marked by the red circles. M4x14 screws.
- Page 6 INSTALLING THE HOOD INSTALLING THE HOOD 3 Nm Take the fabric cover and put it on the frame, placed symmetrically. Close the Velcro stripes placed on the inside of the hood fabric, in the positions shown by the blue circles, around the metal frame.
- Page 7 TITLE TRIOBIKE A/S Vesterbrogade 149, 1620 Copenhagen V - Denmark phone: +45 3670 0070 info@triobike.dk | www.triobike.com...
