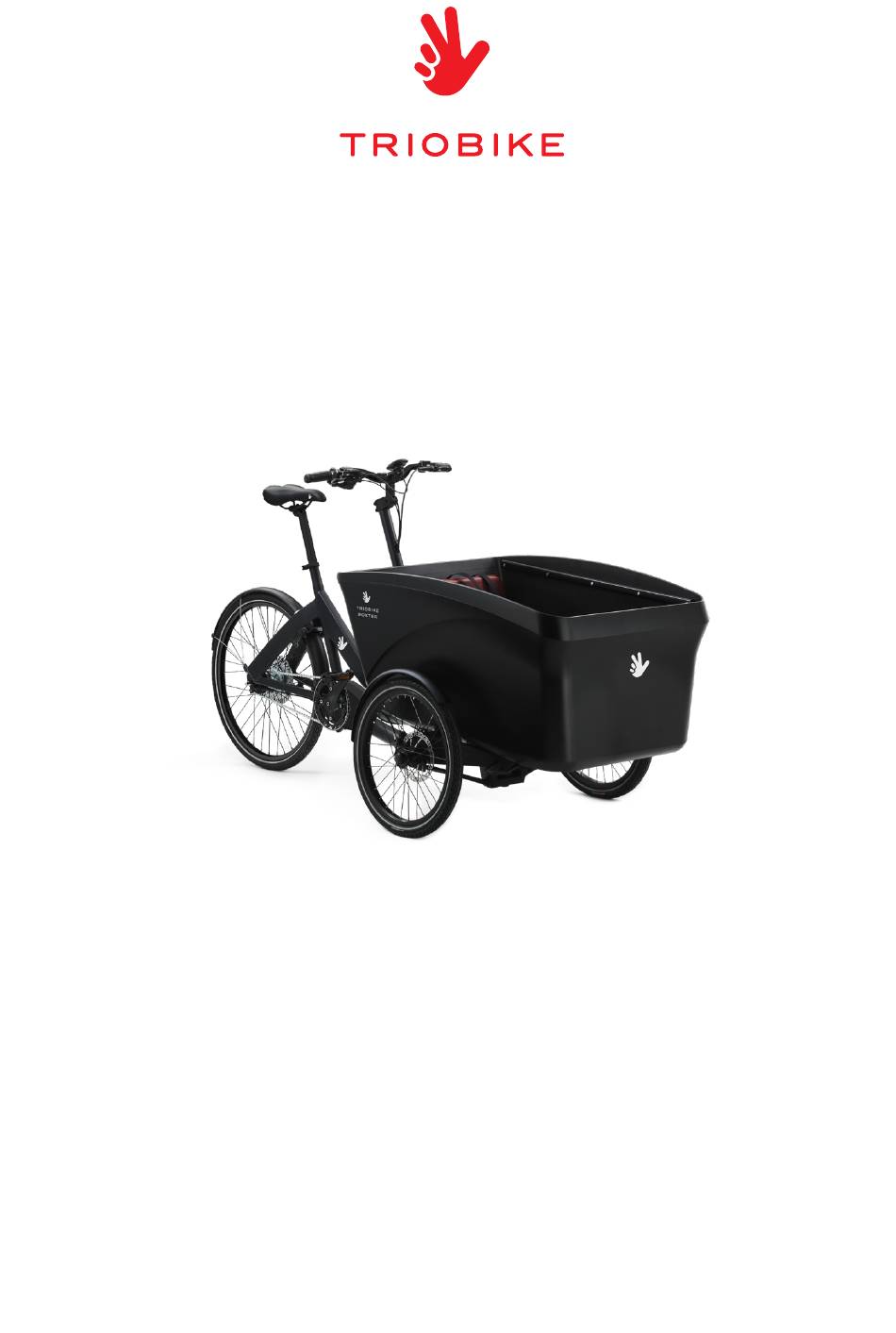

SEAT ASSEMBLY INSTRUCTIONS

ENGLISH V 1.2

Need help?

Do you have a question about the BOXTER and is the answer not in the manual?

Page 1 BOXTER SEAT ASSEMBLY INSTRUCTIONS ENGLISH V 1.2...
Page 2 2 KIDS SEAT KIT PARTS TRIOBIKE MODEL: XXX COLOR: YYY QR code - scan to download the manual Backrest Seat (with Velcro on the back side) 3x L shaped brackets: - 1x to mount upside - 2x to mount downside...
Page 3: Needed Tools
NEEDED TOOLS Hex key, sizes: 3, 4, 5 mm Wrench, sizes: 10 mm...
Page 4 ASSEMBLING THE SEAT ALL PICTURES SHOW 4 KIDS CONFIGURATION REAR SEAT FRONT SEAT Mount the brackets on the box, using 2xM6x25 countersunk head bolt + nut for each Connect seat belt shoulder holders to the rear wall on the box with 2xM6x25 bolt + nut bracket, in the positions shown above.
Page 5: Assembling The Seat
ASSEMBLING THE SEAT ASSEMBLING THE SEAT Connect seat belt shoulder holders to the front wall on the box with 2x M5x12 non- Connect seat belt bottom parts to the box floor, using 1xM6 bolt each in the specific countersunk bolt each in the specific threaded holes. threaded holes.
Page 6 ASSEMBLING THE SEAT ASSEMBLING THE SEAT Remove the protectors from the Velcro strips on the backrest rear side. Place the backrest on the box, as shown on picture. Apply some force so that the Velcro Place the seat on the brackets, aligned with the Velcro, and push so that the Velcro adheres.
