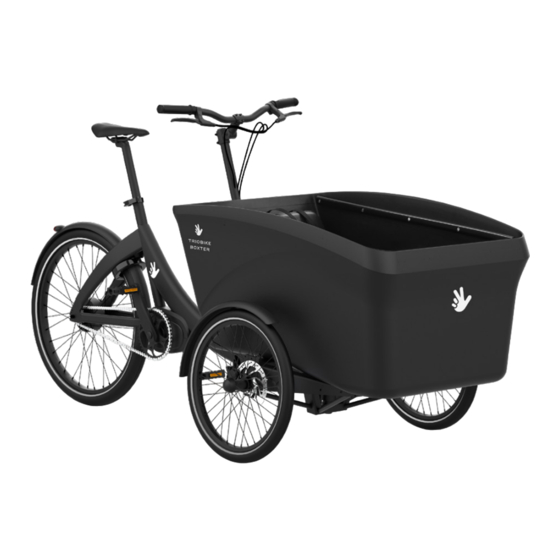

TRIOBIKE BOXTER AIR Original Instructions Manual
  1. Manuals
  2. Brands
  3. TRIOBIKE Manuals
  4. Bicycle
  5. BOXTER
  6. Original instructions manual

TRIOBIKE BOXTER AIR Original Instructions Manual

Hide thumbs Also See for BOXTER AIR:
Table of Contents

Advertisement

Quick Links

Download this manual
BOXTER AIR
ORIGINAL INSTRUCTIONS
ENGLISH V 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BOXTER AIR and is the answer not in the manual?

Questions and answers

Related Manuals for TRIOBIKE BOXTER AIR

Summary of Contents for TRIOBIKE BOXTER AIR

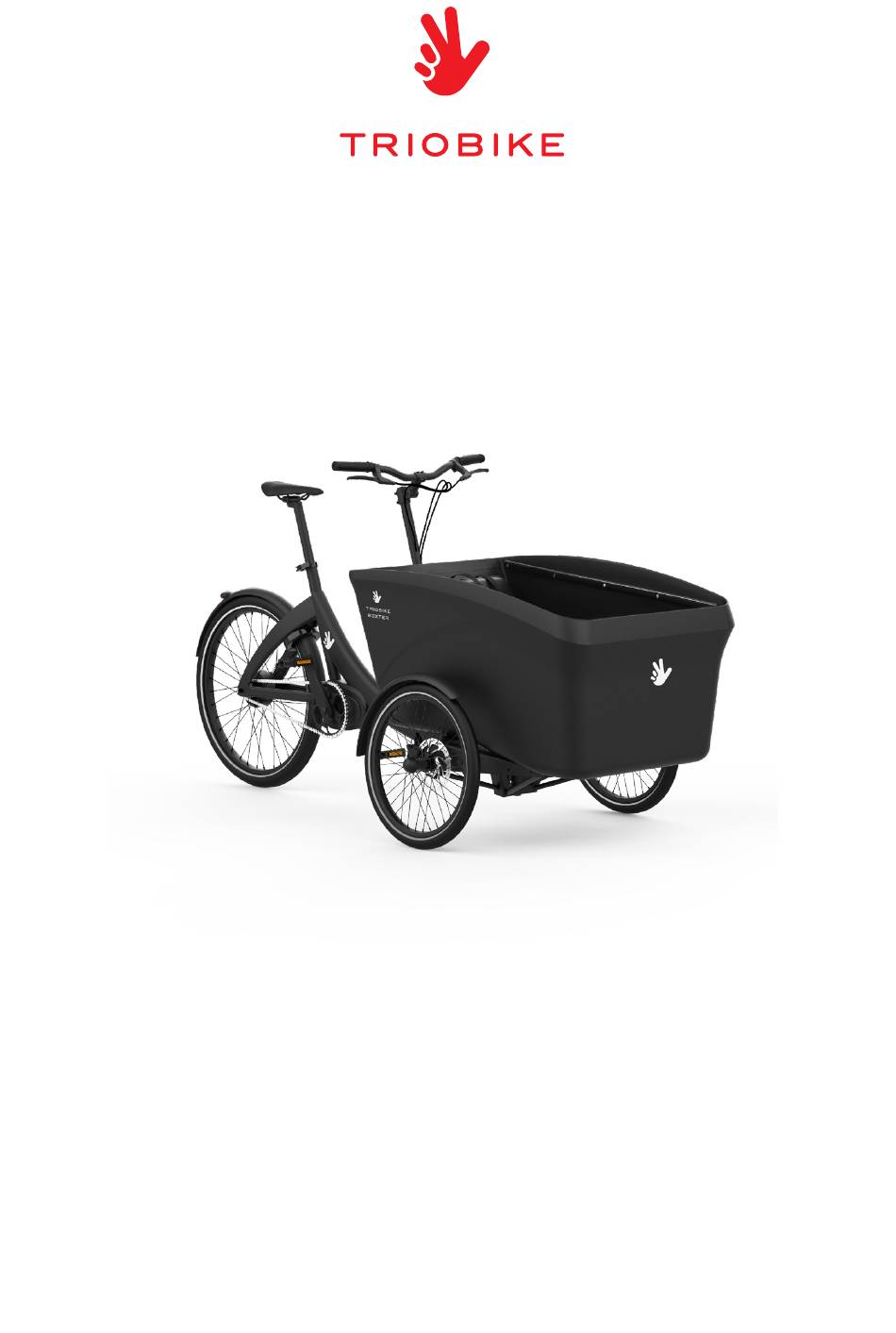

  • Page 1 BOXTER AIR ORIGINAL INSTRUCTIONS ENGLISH V 1.0...
  • Page 2 Our customer service department is dedicated to your satisfaction with Triobike and its products. If you have questions or need advice regarding assembly, parts, performance, or returns, please contact the experts at Triobike.
  • Page 3 INDEX ABOUT THIS MANUAL REMINDER WARNINGS GENERAL SAFETY ASSEMBLING THE BIKE SAFETY CHECKLIST INSTRUCTIONS QUICK RELEASE SEAT CLAMP HANDLEBAR PARKING LOCK GEAR REAR DRIVE E-SYSTEM MID DRIVE E-SYSTEM SEATS SEAT BELTS HOOD GENERAL SPECIFICATIONS WARRANTY MAINTENANCE EC DECLARATION OF CONFORMITY...

  • Page 4: About This Manual

    ABOUT THIS MANUAL WARNINGS It is important that you understand your new bicycle. By reading this manual before you go DO NOT INSTALL ANY KIND OF ADDITIONAL ELECTRIC MOTOR out on your first ride, you’ll know how to get better performance, comfort, and enjoyment OR INTERNAL COMBUSTION ENGINE TO THE BICYCLE.

  • Page 5: General Safety

    - The usage of bicycles or any accessories such as lamps, bells etc. is the user’s own - Do not use items that may restrict your hearing and vision. responsibility, and TRIOBIKE cannot be held responsible for any damage, accidents, personal injury or fines caused by the usage of these products.
  • Page 6 GENERAL SAFETY GENERAL SAFETY WET WEATHER NIGHT RIDING - When riding in wet weather always use safety lights to enhance visibility. - Do not ride the bike at night without lights on, both front and rear. - Exercise extreme caution when riding in wet conditions. - If using battery powered lights, make sure batteries are well charged.
  • Page 7 GENERAL SAFETY CORNERING TECHNIQUE - Brake slightly before cornering and prepare to lean your body into the corner. - Decrease your riding speed, avoid sudden braking and sharp turns. FRONT BOX - When loading and unloading passengers on the front box, be sure that the parking lock is activated.

  • Page 8: Safety Checklist

    SAFETY CHECKLIST Before every ride, it is important to carry out the following safety checks. Do not ride a CRANKS AND PEDALS bicycle that is not in proper working condition! - The pedals are securely tightened to the crank arms. - The crank arms are secured to the axle and are not bent.
  • Page 9 INSTALLING THE STEP-IN rear (handlebar side) TOP VIEW front Locate the 4 step-in holes ( ) placed on the front box floor. Connect the step in to the box using 2x DIN912 M8x40 bolt on the front and 2x DIN912 Test the step-in putting your foot on it.

  • Page 10: Quick Release Seat Clamp

    QUICK RELEASE SEAT CLAMP - Unlock the quick-release lever - Try to close the quick-release lever. If it closes easily, open it up and tighten the adjustment nut further. If it’s too difficult to close, open the quick release lever up and - Adjust the seat height up or down until the rider feels that he/she has control of the loosen the adjustment nut a little and try again.

  • Page 11: Parking Lock

    HANDLEBAR PARKING LOCK ADJUSTING THE STEM ANGLE LOCK - Using a 6 mm Allen wrench, loosen the bolt at the front of the stem. - Press the LEFT brake lever IN. - Rotate the small lever to the left. IMPORTANT: do not loosen the bolts on the side of the stem. UNLOCK - Grasp the stem of the handlebar and rotate to the desired angle.
  • Page 12 GEAR INTERNAL SHIMANO GEARS The rear shifter is placed on the right handlebar and has an indicator that shows the number of the engaged gear, from 1 to 5. First gears are used for slower riding, hill climbing, or to allow for easier pedaling. It is recommended to start off in this gear and move through the gears as speed increases as needed, or comfortable.
  • Page 13 E-SYSTEM LIGHTS ON/OFF INCREASE SUPPORT LEVEL POWER ON/OFF DECREASE SUPPORT LEVEL / WALK ASSIST (PRESS FOR SWITCH BETWEEN DISTANCE 2 SECS) AND SPEED MODE USING THE SYSTEM FRONT BOX MOUNTED BATTERY - Choose the desired assist level by pushing the “+/-” on the handlebar control. - Insert the battery in the specific stand placed inside the front box and push it towards the Assist modes vary from 1”...

  • Page 14: Seat Belts

    SEATS SEAT BELTS REMOVING THE BENCH FASTEN THE SEAT BELTS On a boxter equipped with seats, to have more loading space is possible to remove the - Join the two ending parts coming from the backrest parts of the seat belt. The right one bench: simply lift it applying some force in order to detach it from the Velcro strips.
  • Page 15 HOOD OPENING THE 2 KIDS HOOD OPENING THE 4 KIDS HOOD - move to the front of the box; - move to the front of the box; - turn the front metal locks, they’ve to be horizontally aligned; - turn the front metal locks, they’ve to be horizontally aligned; - open the front zippers;...

  • Page 16: Specifications

    SPECIFICATIONS Boxter Air SPECIFICATIONS build up components dimensions FRAME: aluminium 6061 BRAKES: Tektro hydraulic disc brakes with parking lock BIKE: on the front, coaster brake on the rear LENGTH: 222 cm BOX: PU foam casted in one piece WIDTH: 93 cm GEARS / TRANSMISSION: REAR WHEEL: 26”...
  • Page 17 DIMENSIONS DIMENSIONS 1297 2220 Hub O.L.D. dimensions in mm TRIOBIKE Boxter Date: 03-03-2021 Copyright© TRIOBIKE A/S 2021...

  • Page 18: Warranty

    The bicycles are intended to be used for city biking. TRIOBIKE shall not be held responsible for any accidents, injury, losses or damage caused by use of the bicycle, being that of responsibility of the owner.

  • Page 19: Maintenance

    MAINTENANCE year/km operation dealer stamp checklist brakes gears 3 months bearings check spokes GENERAL ADVISE brakes gears Please remember to have your first check & fine tune after 3 months. Hereafter we bearings 1 year battery status recommend a complete service and fine tuning of your bike every year/2000 km. Please 2000 km tires check 1240 miles...

  • Page 20: Ec Declaration Of Conformity

    - meets all the provisions of the Directive 2004 / 108EG (Electromagnetic Compatibility); - meets the associated battery charger complies with all provisions of the Directive 2006/95 / EC (Low Voltage). Triobike A/S Copenhagen, 8 August 2021 Sammy Eisinger (managing director) Copyright© Triobike A/S 2021. All Rights Reserved.
  • Page 21 TRIOBIKE A/S Gammel Kongevej 80, 1850 Frederiksberg C - Denmark phone: +45 3670 0070 info@triobike.dk | www.triobike.com...
