CARGO
ORIGINAL INSTRUCTIONS
ENGLISH V 1.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CARGO and is the answer not in the manual?

Questions and answers

Related Manuals for TRIOBIKE CARGO

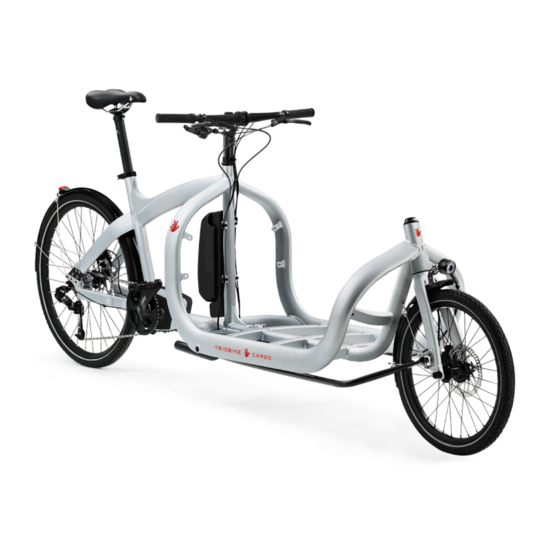

Summary of Contents for TRIOBIKE CARGO

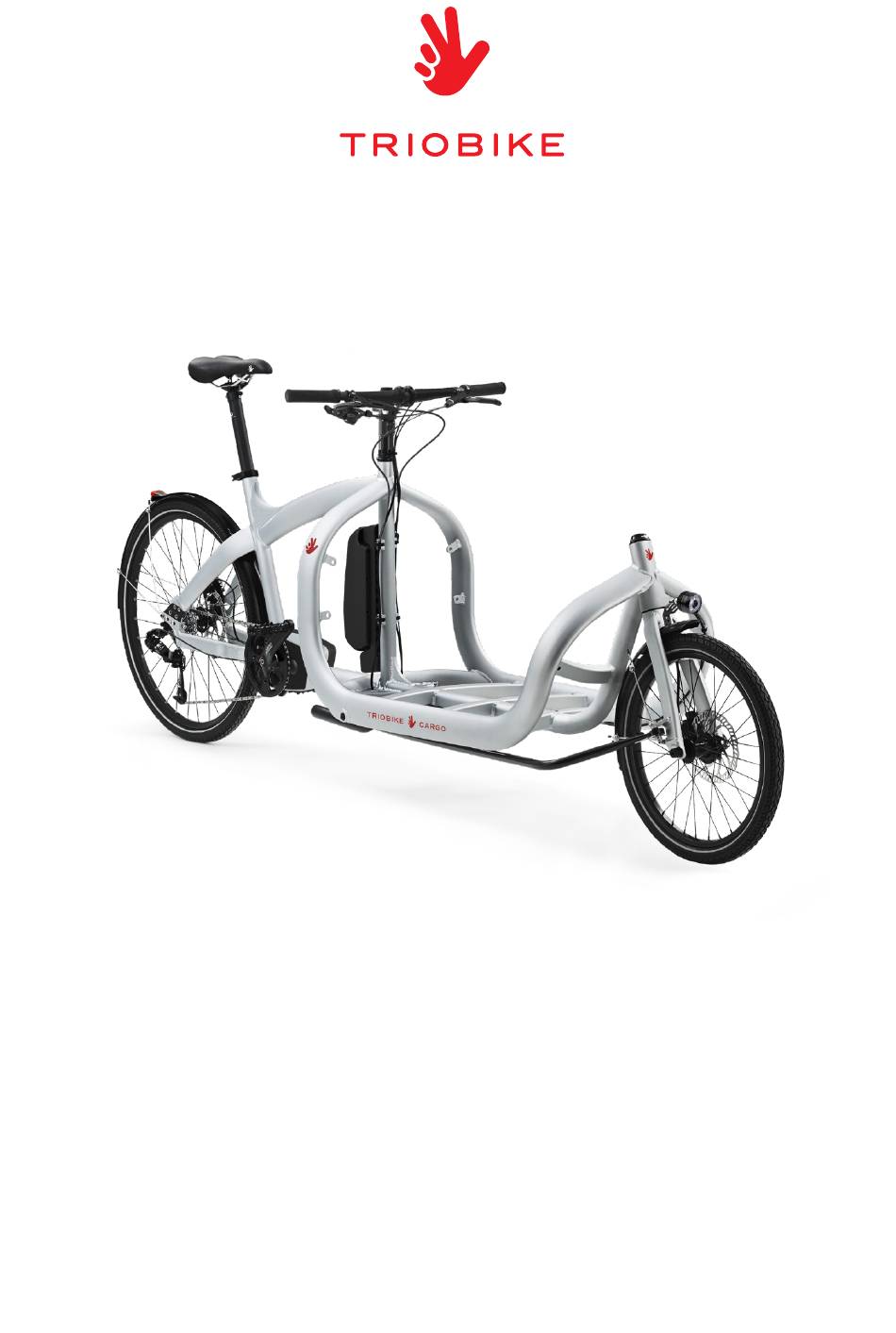

  • Page 1 CARGO ORIGINAL INSTRUCTIONS ENGLISH V 1.4...
  • Page 2 Our customer service department is dedicated to your satisfaction with Triobike and its products. If you have questions or need advice regarding assembly, parts, performance, or returns, please contact the experts at Triobike.
  • Page 3 INDEX ABOUT THIS MANUAL REMINDER WARNINGS GENERAL SAFETY SAFETY CHECKLIST INSTRUCTIONS QUICK RELEASE SEAT CLAMP HANDLEBAR GEAR E-SYSTEM KICKSTAND GENERAL SPECIFICATIONS WARRANTY MAINTENANCE EC DECLARATION OF CONFORMITY...

  • Page 4: About This Manual

    ABOUT THIS MANUAL WARNINGS It is important that you understand your new bicycle. By reading this manual before you go DO NOT INSTALL ANY KIND OF ADDITIONAL ELECTRIC MOTOR out on your first ride, you’ll know how to get better performance, comfort, and enjoyment OR INTERNAL COMBUSTION ENGINE TO THE BICYCLE.

  • Page 5: General Safety

    - The usage of bicycles or any accessories such as lamps, bells etc. is the user’s own - Do not use items that may restrict your hearing and vision. responsibility, and TRIOBIKE cannot be held responsible for any damage, accidents, personal injury or fines caused by the usage of these products.
  • Page 6 GENERAL SAFETY GENERAL SAFETY WET WEATHER NIGHT RIDING - When riding in wet weather always use safety lights to enhance visibility. - Do not ride the bike at night without lights on, both front and rear. - Exercise extreme caution when riding in wet conditions. - If using battery powered lights, make sure batteries are well charged.

  • Page 7: Cornering Technique

    GENERAL SAFETY CORNERING TECHNIQUE - Brake slightly before cornering and prepare to lean your body into the corner. - Decrease your riding speed, avoid sudden braking and sharp turns.

  • Page 8: Safety Checklist

    SAFETY CHECKLIST Before every ride, it is important to carry out the following safety checks. Do not ride a CRANKS AND PEDALS bicycle that is not in proper working condition! - The pedals are securely tightened to the crank arms. - The crank arms are secured to the axle and are not bent.

  • Page 9: Quick Release Seat Clamp

    QUICK RELEASE SEAT CLAMP - Unlock the quick-release lever. - Try to close the quick-release lever. If it closes easily, open it up and tighten the adjustment nut further. If it’s too difficult to close, open the quick release lever up and - Adjust the seat height up or down until the rider feels that he/she has control of the loosen the adjustment nut a little and try again.
  • Page 10 HANDLEBAR ADJUSTING THE STEM ANGLE ADJUSTING THE STEM HEIGHT - Using a 6 mm Allen wrench loosen the bolt at the front of the stem. - Unlock the quick-release lever. IMPORTANT: do not loosen the bolts on the side of the stem. - Adjust the stem height up or down.
  • Page 11 GEAR EXTERNAL SHIMANO GEARS ENVIOLO TRANSMISSION Shifting with the Enviolo system, while riding: The rear shifter is placed on the right handlebar and has an indicator that reads either low - Shifting into low ratios for starting or climbing or high or a series of number from 1 and up. First gears are used for slower riding, hill - Using the Nfinity grip, rotate in the direction indicating more of a “hill”...

  • Page 12: Using The System

    E-SYSTEM USING THE SYSTEM IMPORTANT: Triobike cargo features a pedal-assist electric drive - To turn off the system, press the power button on the battery for 3 seconds. All the LEDs system provided by Brose. Please carefully read its manual.
  • Page 13 E-SYSTEM E-SYSTEM INCREASE POWER NAVIGATION JOYSTICK LIGHTS POWER SUPPORT LEVEL MENU INCREASE SUPPORT LEVEL DECREASE SUPPORT LEVEL DECREASE SUPPORT LEVEL LIGHTS WALK ASSIST (PRESS FOR 2 SECS) WALK ASSIST (PRESS FOR 2 SECS) USING THE SYSTEM (MARQUARDT COMFORT PLUS DISPLAY) USING THE SYSTEM (BROSE ALLROUND DISPLAY) - To activate the walk assist, just press for 2 seconds the “^”...
  • Page 14 KICKSTAND OPERATING THE KICKSTAND The kickstand allows you to park the bike in a steady position. It’s easily operated by foot. UNFOLDING Holding firmly the handlebar, rotate the kickstand using the tip of one foot. When the kickstand touches the ground, push the bike to the back. Before releasing the handlebar, check that the bike is steady on the ground.

  • Page 15: Specifications

    MAX DRIVER WEIGHT: 120 kg TIRES: Puncture free Schwalbe Marathon plus 1.75” MAX TOTAL WEIGHT (BIKE+RIDER+CARGO): 230 kg MOTOR: Brose Drive S | 250W – 90 Nm mid drive motor SADDLE: Triobike gel DISPLAY: Brose Allround CRANKSET: FSA aluminium BATTERY: Li-Ion cells, 36V –...
  • Page 16 DIMENSIONS DIMENSIONS +110 190,5 2500 Hub O.L.D. Hub O.L.D. 100 ø15 thru axle 190,5 dimensions in mm TRIOBIKE Cargo Date: 03-03-2021 Copyright© TRIOBIKE A/S 2021...

  • Page 17: Warranty

    The bicycles are intended to be used for city biking. TRIOBIKE shall not be held responsible for any accidents, injury, losses or damage caused by use of the bicycle, being that of responsibility of the owner.

  • Page 18: Maintenance

    MAINTENANCE year/km operation dealer stamp checklist brakes gears 3 months bearings check spokes GENERAL ADVISE brakes gears Please remember to have your first check & fine tune after 3 months. Hereafter we bearings 1 year battery status recommend a complete service and fine tuning of your bike every year/2000 km. Please 2000 km tires check 1240 miles...

  • Page 19: Ec Declaration Of Conformity

    - meets all the provisions of the Directive 2004 / 108EG (Electromagnetic Compatibility); - meets the associated battery charger complies with all provisions of the Directive 2006/95 / EC (Low Voltage). Triobike A/S Copenhagen, 4 March 2019 Sammy Eisinger (managing director) Copyright© Triobike A/S 2020. All Rights Reserved.
  • Page 20 TRIOBIKE A/S Gammel Kongevej 80, 1850 Frederiksberg C - Denmark phone: +45 3670 0070 info@triobike.dk | www.triobike.com...
