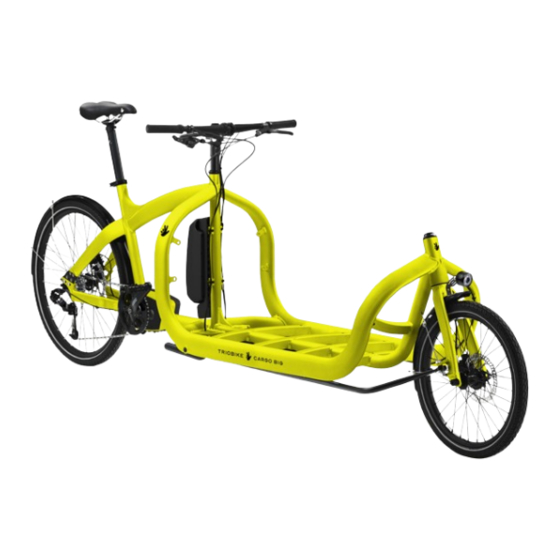

- Page 1 CARGO BIG FLIGHT CASE BOX INSTALLATION MANUAL ENGLISH V 1.0...
- Page 3 Our customer service department is dedicated to your satisfaction with Triobike and its products. If you have questions or need advice regarding assembly, parts, performance, or returns, please contact the experts at Triobike.
- Page 4 INSTALLING THE FLIGHT CASE BOX FOAM thickness 30 mm side view (50 mm for the 75 cm wide box) width 160 mm top view length 810 mm Using double sided tape, place two 30mm (50mm if the box is 75 cm wide) thick foam panels on the bike frame, as shown in the picture.
- Page 5 ~10 mm ~10 mm Place the flight case box on the foam panels, the distance between the headset and the rear part of the load deck has to be the same.
- Page 6 INSTALLING THE FLIGHT CASE BOX rear view from the bottom of the bike front Using a long and thin marker, mark the center of the holes with the red circle on the bottom of the flight case box. The marker has to enter from the bottom of the frame.
- Page 7 INSTALLING THE FLIGHT CASE BOX Remove the box from the bike and turn it upside down. Drill 4 holes Ø8 mm on the position of the marks made previously on the box.
- Page 8 INSTALLING THE FLIGHT CASE BOX M6x100 DIN 912 bolt M6 washer foam / spacer flight case box bottom bike frame M6 washer M6 nut Place again the box on the frame, and remove the lid from the top. Place an M6 washer and a M6x100 bolt on each of the 4 holes.
- Page 9 INSTALLING THE FLIGHT CASE BOX Put again the top lid on the flight case box.
- Page 11 Copyright© Triobike A/S 2019. All Rights Reserved.
- Page 12 TRIOBIKE A/S Gammel Kongevej 80, 1850 Frederiksberg C - Denmark phone: +45 3670 0070 info@triobike.dk | www.triobike.com...
