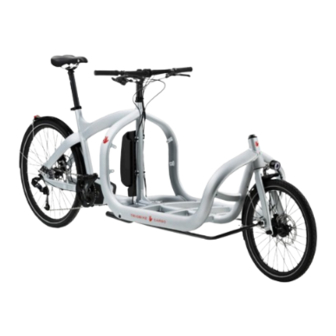

CARGO
2 KIDS KIT INSTALLATION MANUAL
ENGLISH V 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the CARGO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRIOBIKE CARGO

Summary of Contents for TRIOBIKE CARGO

  • Page 1 All manuals and user guides at all-guidesbox.com CARGO 2 KIDS KIT INSTALLATION MANUAL ENGLISH V 1.0...
  • Page 2 All manuals and user guides at all-guidesbox.com PARTS AND PLACEMENT front panel left bottom panel right panel panel left right extension extension rear panel...
  • Page 3 All manuals and user guides at all-guidesbox.com INSTALLING THE 2 KIDS KIT bottom bottom Place the brackets on the frame, then put the bottom panel over them. The Place and fix the front panel and the brackets using bolts + washers + nuts on the frame, panel and brackets holes have to match.
  • Page 4 All manuals and user guides at all-guidesbox.com INSTALLING THE 2 KIDS KIT INSTALLING THE 2 KIDS KIT Place the rear panel and brackets as shown in the picture, and fix them on the Place the extension panels as shown in the picture. Fix them on the bottom of the extension panels using bolts + washers + nuts.
  • Page 5 All manuals and user guides at all-guidesbox.com INSTALLING THE 2 KIDS KIT INSTALLING THE 2 KIDS KIT Mount the 2 kids seat backrest using 4x bolt : from the rear, insert the bolts in the Mount the side panels connecting them to all the brackets using bolts + nuts.
  • Page 6 All manuals and user guides at all-guidesbox.com INSTALLING THE 2 KIDS KIT INSTALLING THE 2 KIDS KIT Place 2x Velcro stripes on the bottom panel and under the bench legs. The stripes have Once placed correctly, the backrest should stay on its position. to be aligned with the bench legs.
  • Page 7 All manuals and user guides at all-guidesbox.com INSTALLING THE 2 KIDS KIT Fix the bench pushing it towards the bottom panel.
  • Page 8 All manuals and user guides at all-guidesbox.com TRIOBIKE A/S Vesterbrogade 149, 1620 Copenhagen V - Denmark phone: +45 3670 0070 info@triobike.dk | www.triobike.com...
