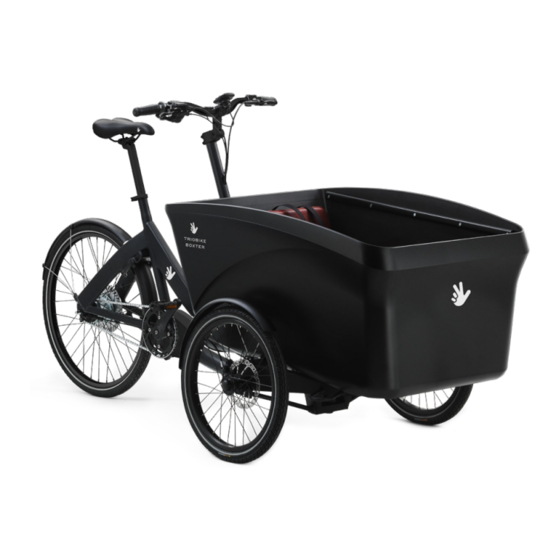

TRIOBIKE BOXTER Assembly Instructions Manual
2 kids seat kit
Hide thumbs
Also See for BOXTER:
- Original instructions manual (31 pages) ,
- Installation manual (7 pages) ,
- Assembly instructions manual (7 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for TRIOBIKE BOXTER
Summary of Contents for TRIOBIKE BOXTER

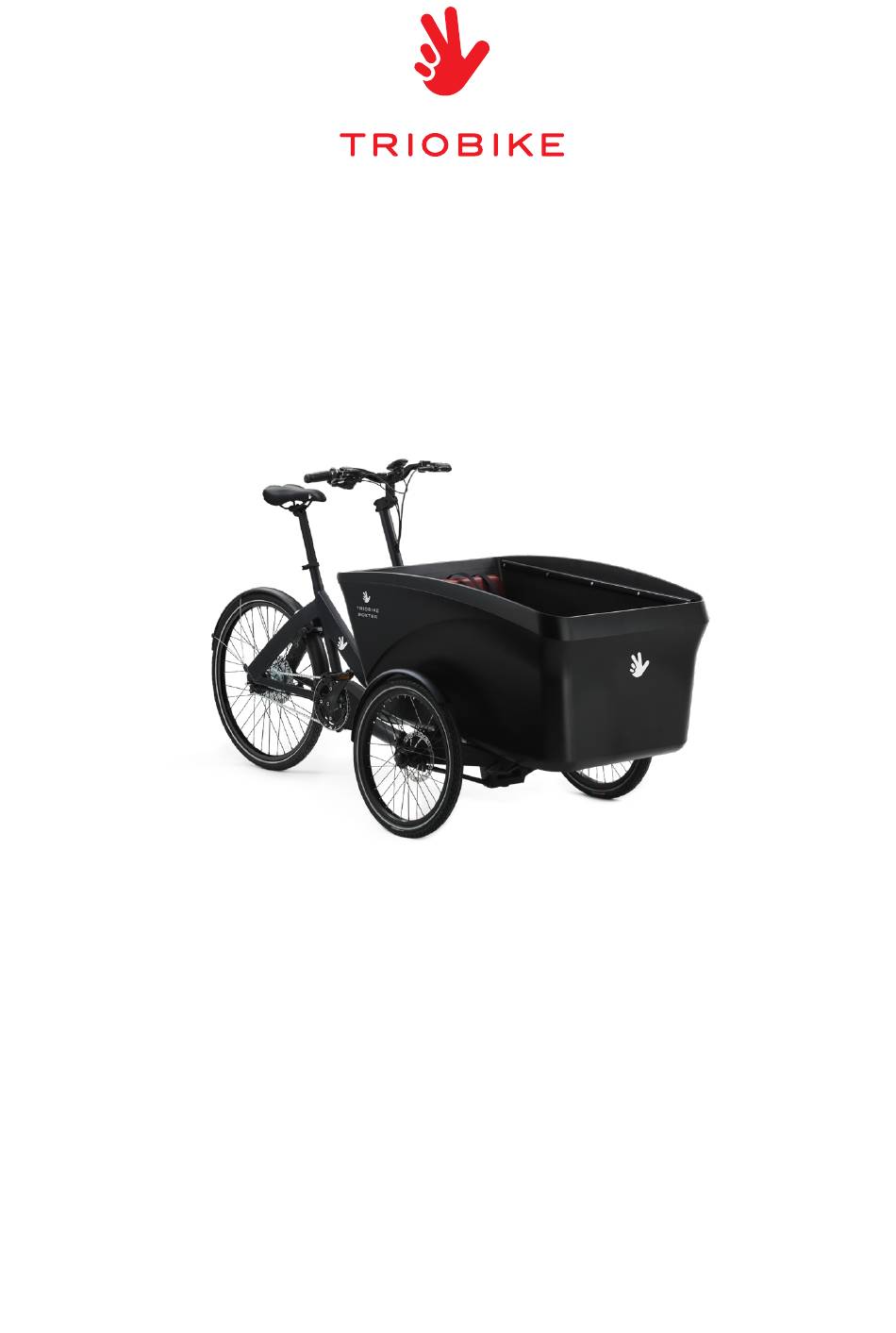

- Page 1 BOXTER SEAT ASSEMBLY INSTRUCTIONS ENGLISH V 1.0...
- Page 2 2 KIDS SEAT KIT PARTS TRIOBIKE MODEL: XXX COLOR: YYY Backrest Seat (with Velcro on the back side) 2x L shaped brackets 4x DIN 912 M4x8 bolts with integrated washer 2x 3-points seat belts 3x Velcro strips 4x DIN 912 M5x12 bolts...
-
Page 3: Needed Tools
NEEDED TOOLS Hex key, sizes: 3, 5 mm... - Page 4 ASSEMBLING THE SEAT ALL PICTURES SHOW 4 KIDS CONFIGURATION REAR SEAT FRONT SEAT Mount the brackets on the box, using 2xM4 bolt for each bracket, in the positions shown above. ONLY FOR REAR SEAT: mount a bracket in the middle of the box rear wall, upside Connect seat belt shoulder holders to the rear wall on the box with 2xM5 bolt each in down compared to the other brackets (use the bolts from the steering column).
- Page 5 ASSEMBLING THE SEAT ASSEMBLING THE SEAT Remove the protectors from the Velcro strips on the backrest rear side. Connect seat belt bottom parts to the box floor, using 1xM6 bolt each in the specific Place the backrest on the box, as shown on picture. Apply some force so that the Velcro threaded holes.
- Page 6 ASSEMBLING THE SEAT ASSEMBLING THE SEAT Detach the external layers of Velcro (the one protected by white film) from the back side of the seat, and place them on top of the 2 side brackets. Apply some force so that the Place the seat on the brackets, aligned with the Velcro, and push so that the Velcro Velcro strips adheres.
- Page 7 TITLE TRIOBIKE A/S Vesterbrogade 149, 1620 Copenhagen V - Denmark phone: +45 3670 0070 info@triobike.dk | www.triobike.com...
