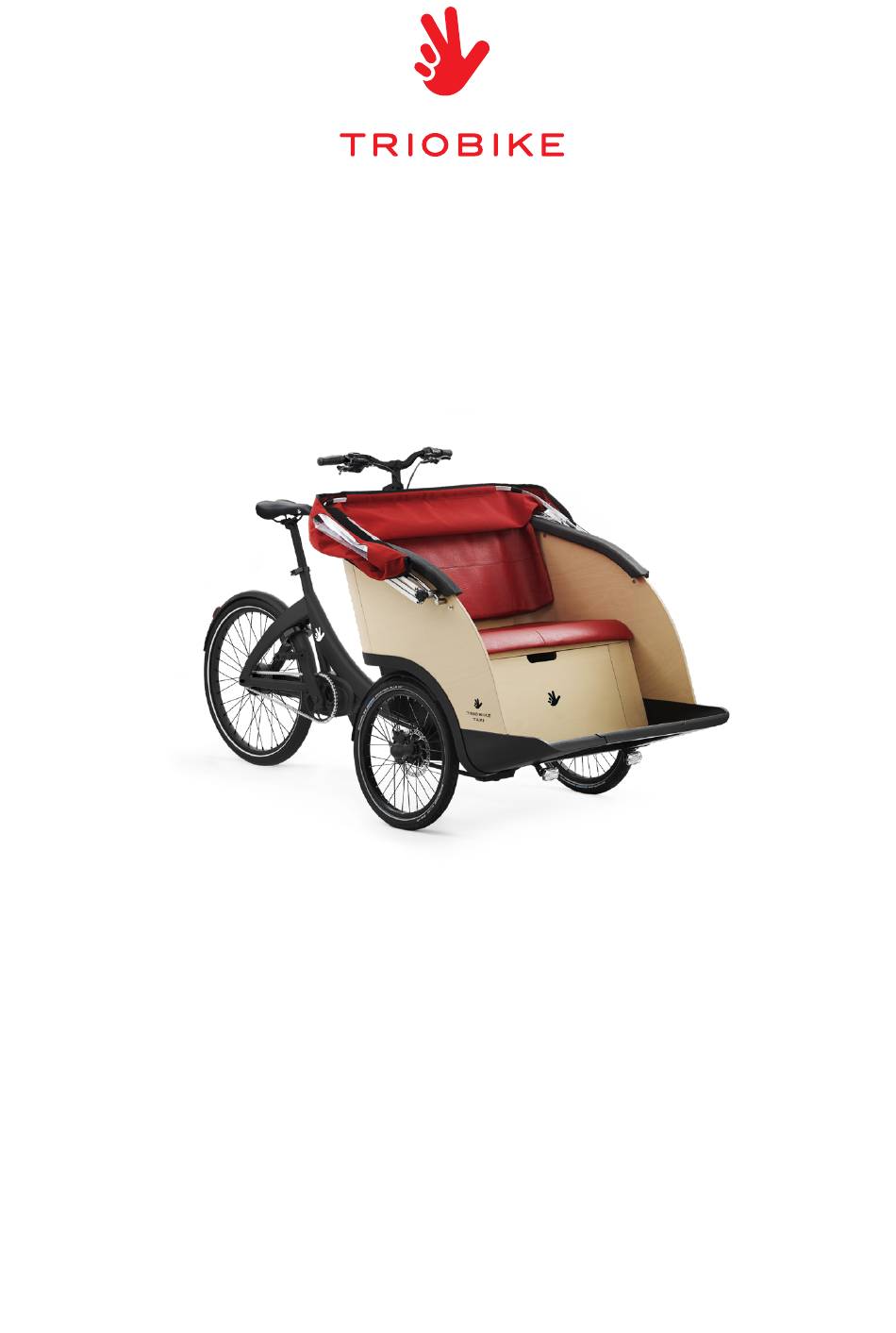

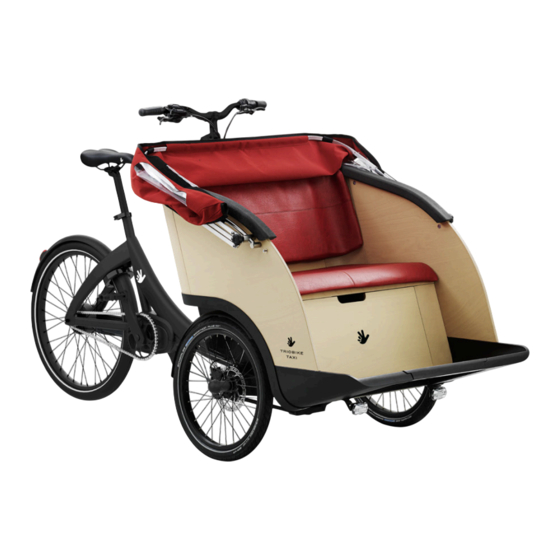

  • Page 1 TAXI CL ORIGINAL INSTRUCTIONS ENGLISH V 1.0...
  • Page 2 Our customer service department is dedicated to your satisfaction with Triobike and its products. If you have questions or need advice regarding assembly, parts, performance, or returns, please contact the experts at Triobike.
  • Page 3 INDEX TITLE ABOUT THIS MANUAL REMINDER WARNINGS GENERAL SAFETY SAFETY CHECKLIST INSTRUCTIONS QUICK RELEASE SEAT CLAMP HANDLEBAR GEARS PARKING LOCK MID DRIVE E-SYSTEM REMOVABLE BOTTOM PLATE BLANKET SEAT BELT HOOD GENERAL SPECIFICATIONS WARRANTY MAINTENANCE EC DECLARATION OF CONFORMITY...

  • Page 4: About This Manual

    ABOUT THIS MANUAL WARNINGS It is important that you understand your new bicycle. By reading this manual before you go DO NOT INSTALL ANY KIND OF ADDITIONAL ELECTRIC MOTOR out on your first ride, you’ll know how to get better performance, comfort, and enjoyment OR INTERNAL COMBUSTION ENGINE TO THE BICYCLE.

  • Page 5: General Safety

    - The usage of bicycles or any accessories such as lamps, bells etc. is the user’s own - Do not use items that may restrict your hearing and vision. responsibility, and TRIOBIKE cannot be held responsible for any damage, accidents, personal injury or fines caused by the usage of these products.
  • Page 6 GENERAL SAFETY GENERAL SAFETY WET WEATHER NIGHT RIDING - When riding in wet weather always use safety lights to enhance visibility. - Do not ride the bike at night without lights on, both front and rear. - Exercise extreme caution when riding in wet conditions. - If using battery powered lights, make sure batteries are well charged.

  • Page 7: Cornering Technique

    GENERAL SAFETY CORNERING TECHNIQUE - Brake slightly before cornering and prepare to lean your body into the corner. - Decrease your riding speed, avoid sudden braking and sharp turns. FRONT BOX - When loading and unloading passengers on the front box, be sure that the parking lock is activated.

  • Page 8: Safety Checklist

    SAFETY CHECKLIST Before every ride, it is important to carry out the following safety checks. Do not ride a CRANKS AND PEDALS bicycle that is not in proper working condition! - The pedals are securely tightened to the crank arms. - The crank arms are secured to the axle and are not bent.

  • Page 9: Quick Release Seat Clamp

    QUICK RELEASE SEAT CLAMP - Unlock the quick-release lever - Try to close the quick-release lever. If it closes easily, open it up and tighten the adjustment nut further. If it’s too difficult to close, open the quick release lever up and - Adjust the seat height up or down until the rider feels that he/she has control of the loosen the adjustment nut a little and try again.
  • Page 10 HANDLEBAR GEAR ADJUSTING THE STEM ANGLE ENVIOLO TRANSMISSION Shifting with the Enviolo system, while riding: - Using a 6 mm Allen wrench loosen the bolt at the front of the stem. - Shifting into low ratios for starting or climbing - Using the Nfinity grip, rotate in the direction indicating more of a “hill”...

  • Page 11: Parking Lock

    PARKING LOCK LOCK UNLOCK The following steps are valid for the both the front and the rear brakes. The pictures show 3- Join lever (the red one) with lever (the black one). the front brake only. 4- Keeping lever together, rotate both levers towards the back of the bike. The 1- Move lever to the front brake lever...

  • Page 12: Mid Drive E-System

    MID DRIVE E-SYSTEM DECREASE BRIGHTNESS / GO BACKWARD POWER BUTTON INCREASE BRIGHTNESS / GO FORWARD BATTERY CHARGE LEVEL ASSISTANCE LEVEL SELECT INCREASE SUPPORT LEVEL / LIGHTS DECREASE SUPPORT LEVEL / WALK ASSIST USING THE SYSTEM (BOSCH LED REMOTE + KIOX 300 DISPLAY) FRONT BOX MOUNTED BATTERY - To turn on the system, press the power button.

  • Page 13: Removable Bottom Plate

    REMOVABLE BOTTOM PLATE BLANKET LOADING PASSENGERS MOUNTING THE BLANKET - Remove the footrest middle part. - Place the blanket over the passengers. - Drive the bike all the way to the passenger, who easily can sit down on the seat. This gives and easy entry and exit.

  • Page 14: Seat Belts

    SEAT BELTS FASTEN THE SEATBELT SHORTEN/LENGTHEN THE SEAT BELT - Hold the latch and pull the seat belt across the body without twisting the webbing. - Turn the adjustable latch at a right angle to the webbing and pull away from the latch, using the lower webbing strap.
  • Page 15 HOOD UNFOLDING THE HOOD FOLDING THE HOOD - Loosen the black screw handles on each rail. - Unzip the zippers on each back corner of the hood. - Slide the screw handles on each rail towards the handlebar, while unfolding the hood. - Loosen the black screw handles on each rail.

  • Page 16: Specifications

    TAXI CL HD SPECIFICATIONS SPECIFICATIONS build up components equipment FRAME: aluminium 6061 BRAKES: Tektro hydraulic disc brakes with parking lock, RAIN PROTECTION: hood, waterproof blanket (optional) 160 mm rotors BOX: beech plywood + aluminium SEAT: 2 passengers seat with cushions GEARS / TRANSMISSION: REAR WHEEL: 26”...
  • Page 17 TAXI CL EXTREME SPECIFICATIONS build up components equipment FRAME: aluminium 6061 BRAKES: Tektro hydraulic disc brakes with parking lock, RAIN PROTECTION: hood, waterproof blanket (optional) 160 mm rotors BOX: beech plywood + aluminium SEAT: 2 passengers seat with cushions GEARS / TRANSMISSION: REAR WHEEL: 26”...
  • Page 18 DIMENSIONS 1307 2320 Hub O.L.D. dimensions in mm TRIOBIKE Taxi Date: 20-12-2022 Copyright© TRIOBIKE A/S 2022...

  • Page 19: Warranty

    The bicycles are intended to be used for city biking. TRIOBIKE shall not be held responsible for any accidents, injury, losses or damage caused by use of the bicycle, being that of responsibility of the owner.

  • Page 20: Maintenance

    MAINTENANCE year/km operation dealer stamp checklist brakes gears 3 months bearings check spokes GENERAL ADVISE brakes gears Please remember to have your first check & fine tune after 3 months. Hereafter we bearings 1 year battery status recommend a complete service and fine tuning of your bike every year/2000 km. Please 2000 km tires check 1240 miles...

  • Page 21: Ec Declaration Of Conformity

    - meets all the provisions of the Directive 2004 / 108EG (Electromagnetic Compatibility); - meets the associated battery charger complies with all provisions of the Directive 2006/95 / EC (Low Voltage). Triobike A/S Copenhagen, 4 June 2023 Sammy Eisinger (managing director) Copyright© Triobike A/S 2023. All Rights Reserved.
