Summary of Contents for TRIOBIKE BOXTER CL

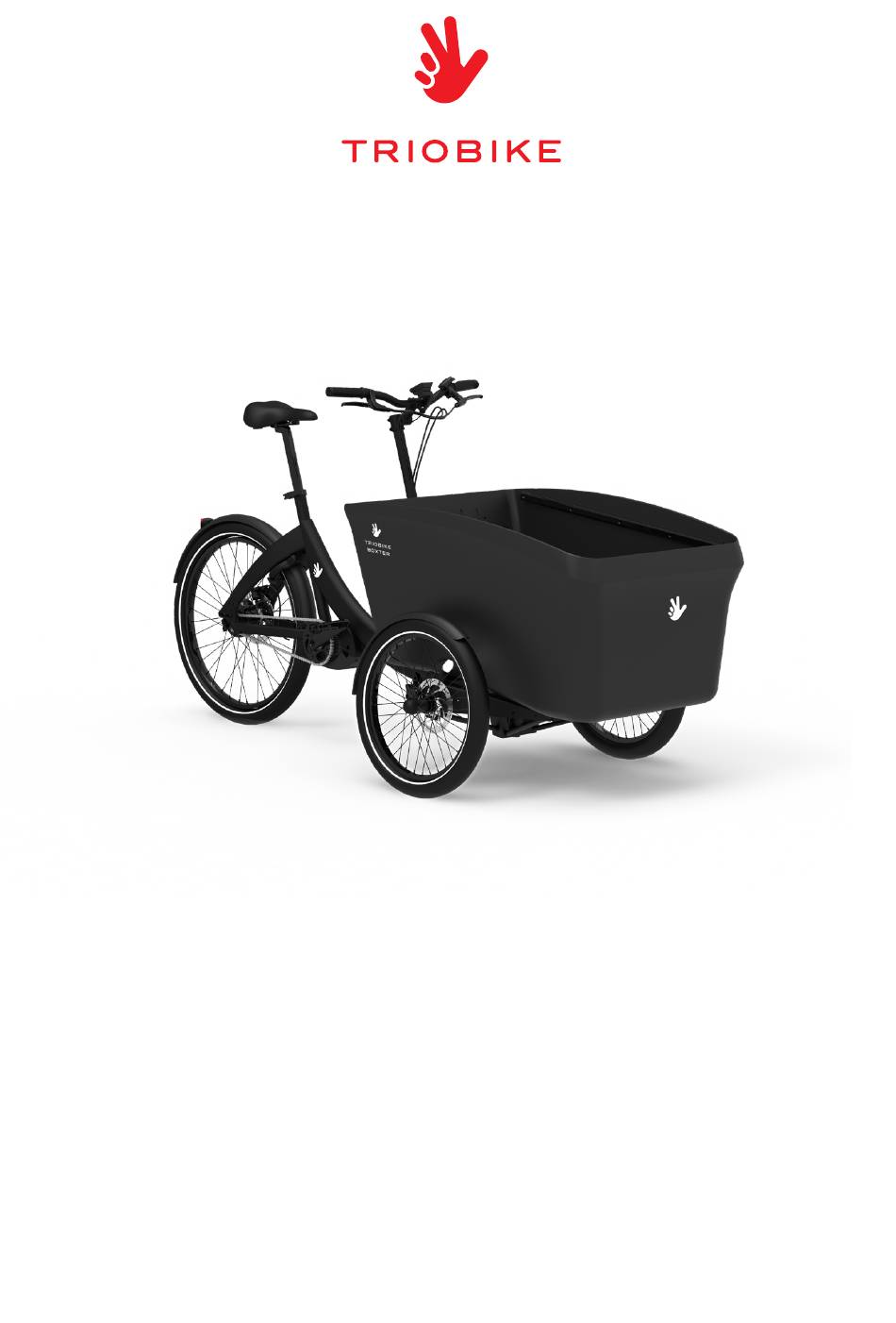

- Page 1 BOXTER CL ORIGINAL INSTRUCTIONS ENGLISH V 1.0...
- Page 2 Our customer service department is dedicated to your satisfaction with Triobike and its products. If you have questions or need advice regarding assembly, parts, performance, or returns, please contact the experts at Triobike.
- Page 3 INDEX ABOUT THIS MANUAL REMINDER WARNINGS GENERAL SAFETY SAFETY CHECKLIST INSTRUCTIONS QUICK RELEASE SEAT CLAMP HANDLEBAR GEAR PARKING LOCK E-SYSTEM SEATS SEAT BELTS HOOD SPECIFICATIONS DIMENSIONS WARRANTY MAINTENANCE EC DECLARATION OF CONFORMITY...
-
Page 4: About This Manual
ABOUT THIS MANUAL WARNINGS It is important that you understand your new bicycle. By reading this manual before you go DO NOT INSTALL ANY KIND OF ADDITIONAL ELECTRIC MOTOR out on your first ride, you’ll know how to get better performance, comfort, and enjoyment OR INTERNAL COMBUSTION ENGINE TO THE BICYCLE. -
Page 5: General Safety
- The usage of bicycles or any accessories such as lamps, bells etc. is the user’s own - Do not use items that may restrict your hearing and vision. responsibility, and TRIOBIKE cannot be held responsible for any damage, accidents, personal injury or fines caused by the usage of these products. - Page 6 GENERAL SAFETY GENERAL SAFETY WET WEATHER NIGHT RIDING - When riding in wet weather always use safety lights to enhance visibility. - Do not ride the bike at night without lights on, both front and rear. - Exercise extreme caution when riding in wet conditions. - If using battery powered lights, make sure batteries are well charged.
-
Page 7: Cornering Technique
GENERAL SAFETY CORNERING TECHNIQUE - Brake slightly before cornering and prepare to lean your body into the corner. - Decrease your riding speed, avoid sudden braking and sharp turns. FRONT BOX - When loading and unloading passengers on the front box, be sure that the parking lock is activated. -
Page 8: Safety Checklist
SAFETY CHECKLIST Before every ride, it is important to carry out the following safety checks. Do not ride a CRANKS AND PEDALS bicycle that is not in proper working condition! - The pedals are securely tightened to the crank arms. - The crank arms are secured to the axle and are not bent. -
Page 9: Quick Release Seat Clamp
QUICK RELEASE SEAT CLAMP - Unlock the quick-release lever - Try to close the quick-release lever. If it closes easily, open it up and tighten the adjustment nut further. If it’s too difficult to close, open the quick release lever up and - Adjust the seat height up or down until the rider feels that he/she has control of the loosen the adjustment nut a little and try again. - Page 10 HANDLEBAR GEAR ADJUSTING THE STEM ANGLE ENVIOLO TRANSMISSION Shifting with the Enviolo system, while riding: - Using a 6 mm Allen wrench loosen the bolt at the front of the stem. - Shifting into low ratios for starting or climbing - Using the Nfinity grip, rotate in the direction indicating more of a “hill”...
-
Page 11: Parking Lock
PARKING LOCK LOCK UNLOCK The following steps are valid for the both the front and the rear brakes. The pictures show 3- Join lever (the red one) with lever (the black one). the front brake only. 4- Keeping lever together, rotate both levers towards the back of the bike. The 1- Move lever to the front brake lever... -
Page 12: Mid Drive E-System
MID DRIVE E-SYSTEM DECREASE BRIGHTNESS / GO BACKWARD POWER BUTTON INCREASE BRIGHTNESS / GO FORWARD BATTERY CHARGE LEVEL ASSISTANCE LEVEL SELECT INCREASE SUPPORT LEVEL / LIGHTS DECREASE SUPPORT LEVEL / WALK ASSIST USING THE SYSTEM (BOSCH LED REMOTE + KIOX 300 DISPLAY) FRONT BOX MOUNTED BATTERY - To turn on the system, press the power button. -
Page 13: Seat Belts
SEATS SEAT BELTS REMOVING THE BENCH FASTEN THE SEAT BELTS On a boxter equipped with seats, to have more loading space is possible to remove the - Join the two ending parts coming from the backrest parts of the seat belt. The right one bench: simply lift it applying some force in order to detach it from the Velcro strips. -
Page 14: Opening Hood
HOOD OPENING HOOD - move to the front of the box; - turn the front metal locks, they’ve to be horizontally aligned; - open the front zippers; - lift the hood. The right side window is openable too, just open its zippers. -
Page 15: Specifications
SEAT POST: DISPLAY: Kiox 300 Ø 31,6 mm MAX OVERALL LOAD (RIDER+PASSENGERS): 208 kg LENGTH 450 mm BATTERY: Bosch PowerPack 545 Wh STEERING DAMPER: one included E-SYSTEM WARRANTY: 1 - 2 years SADDLE: triobike gel CRANKSET: Miranda aluminium STEM: adjustable... - Page 16 DIMENSIONS DIMENSIONS 1307 2250 Hub O.L.D. dimensions in mm TRIOBIKE Boxter Bosch Date: 22-05-2023 Copyright© TRIOBIKE A/S 2023...
-
Page 17: Warranty
The bicycles are intended to be used for city biking. TRIOBIKE shall not be held responsible for any accidents, injury, losses or damage caused by use of the bicycle, being that of responsibility of the owner. -
Page 18: Maintenance
MAINTENANCE year/km operation dealer stamp checklist brakes gears 3 months bearings check spokes GENERAL ADVISE brakes gears Please remember to have your first check & fine tune after 3 months. Hereafter we bearings 1 year battery status recommend a complete service and fine tuning of your bike every year/2000 km. Please 2000 km tires check 1240 miles... -
Page 19: Ec Declaration Of Conformity
- meets all the provisions of the Directive 2004 / 108EG (Electromagnetic Compatibility); - meets the associated battery charger complies with all provisions of the Directive 2006/95 / EC (Low Voltage). Triobike A/S Copenhagen, 4 June 2023 Sammy Eisinger (managing director) Copyright© Triobike A/S 2023. All Rights Reserved. - Page 20 TRIOBIKE A/S Vesterbrogade 149, 1620 Copenhagen V - Denmark phone: +45 3670 0070 info@triobike.dk | www.triobike.com...
