Moog Videolarm POD8C Product Instructions

Manufactured by:
Before attempting to connect or operate this product, please read these instructions completely.
MODEL: Outdoor Dome Housing
POD8C(W), POD8CF(W), PID8C
ELECTRICAL SPECIFICATIONS (OUTDOOR ONLY):
Power 24VAC, Class 2 Only
!
52 watts at 24 VAC (accessories)
Heater: 50 watts
Blower: 1.7 watts
Input Connectors (outdoor units):
BNC
(2) 4 position Molex connectors (power)
(1) Phone style plug (control)
NOTE: This unit is designed for operation in an
upright position. Installing the unit
upside down may cause damage to the
internal equipment, and will void the war-
ranty.
GENERAL INSTRUCTIONS:
Tools Required: .100" Flat Head Screwdriver
Phillips Head Screwdriver
PREPARING PENDANT MOUNT BRACKET FOR POD8C
(For wall mount, POD8CW, see page 3)

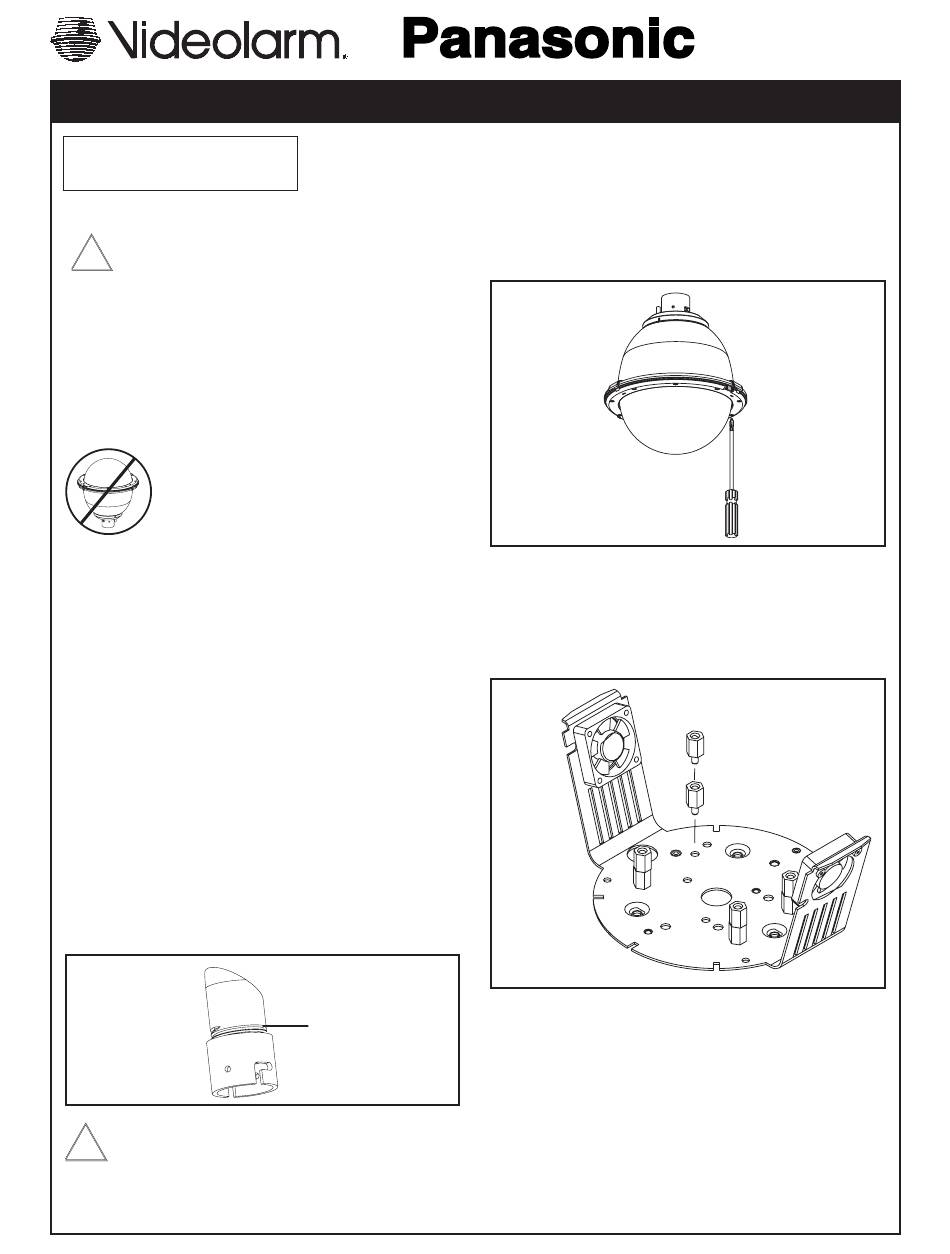

1. Carefully remove the housing from the packaging material.
Check to be sure all parts are present.
2. This unit includes a 1 1/2" NPT housing coupling for a standard
1 1/2" NPT pipe. The POD8C can be used with other brackets
designed with 1 1/2" male pipe threads, such as the Panasonic
WM20G and PWM30G brackets.
3. Attach the housing coupling to the bracket or pendant pipe
(Figure 1).
NOTE: Pipe threads should be clean and rust free. Use a
sealer (such as Tefl on™ tape or silicone sealer) on the
threads.
Figure 1
Be sure the bracket is properly and securely mounted
to a supporting structure capable of rigidly holding the
!
weight of the entire unit.
2525 Park Central Blvd. • Decatur, Ga 30035 • (770) 987-7550 • 800-554-1124 U.S. & Canada • www.videolarm.com • Fax 800-826-0366
for
INSTALLING QUICK RELEASE BRACKET AND PAN/TILT
CAMERA ASSEMBLY (ALL MODELS)
1. Open the housing by loosening the (3) captive screws located
2. Install the pan/tilt unit quick- release bracket. It is recom-
3. Spacers are provided to adjust the level of the WV-CS854
Add thread
sealing tape
PRODUCT INSTRUCTIONS
on the housing ring next to the lower clear dome. Be careful
not to back these all the way out. Twist the dome slightly in a
counterclockwise motion to remove (Figure 2).
Figure 2
mended that this be done before installing the housing.
camera. Attach the spacers, two-high, to the main housing
bracket (Figure 3).
Figure 3
81-IN3074
5/19/04
Loosen screws only,
do not remove
Remove dome by
twisting coun ter -
clock wise
