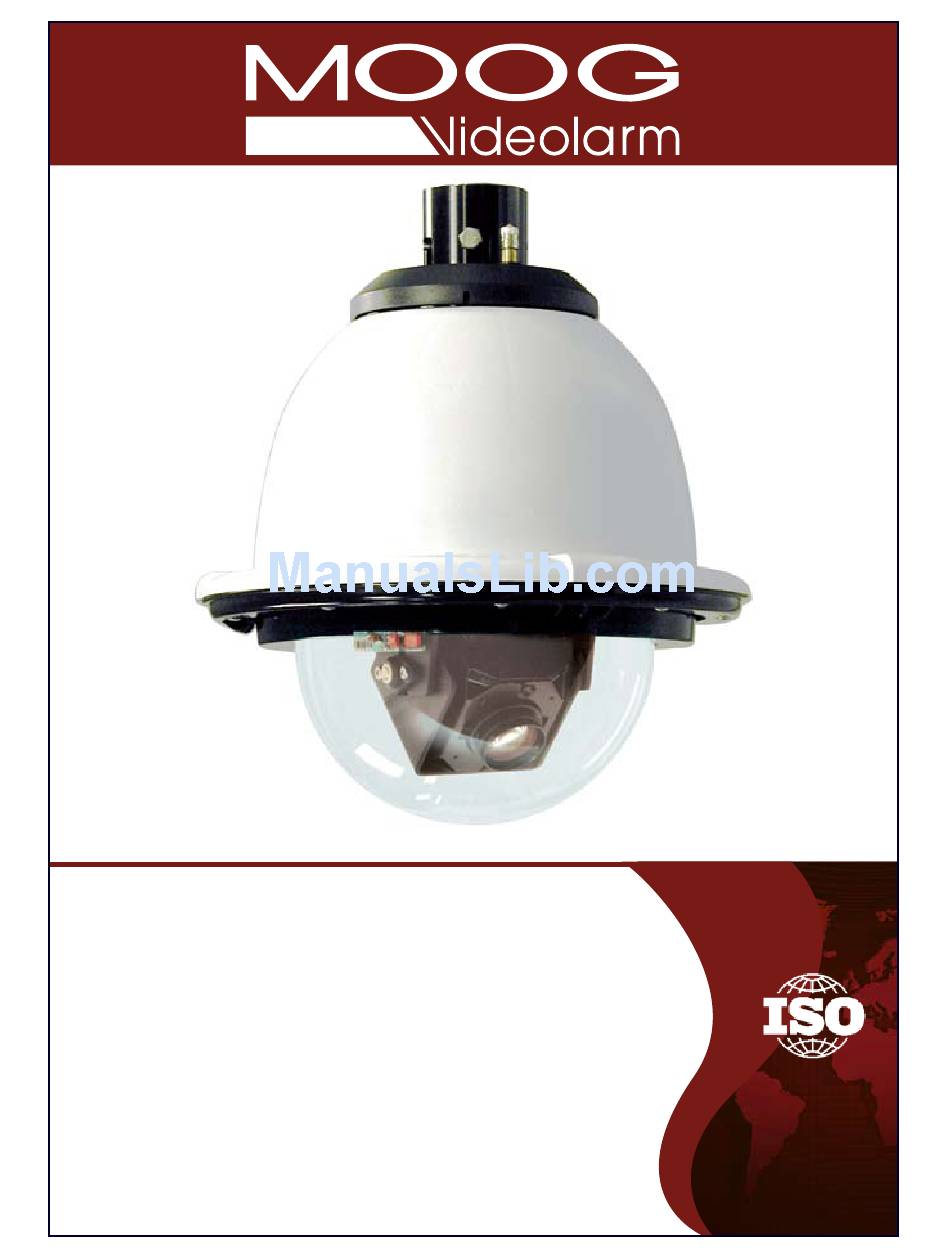

© 2009, Videolarm, Inc. All Rights Reserved
P F D 7 C N - 3
SView™ Outdoor Pressurized FusionDome
Installation and Operation Instructions for the following models:
PFD7CN-3
IP Network Ready 7" Pressurized Outdoor PTZ
Camera System with 36x zoom compression, full D1.
Clear dome, with 24Vac input, heater/ blower
PFD7CS-3 (Analog version)
IP Network Ready 7" Pressurized Outdoor PTZ Camera
System with 36x zoom compression, full D1. Clear dome,
with 24Vac input, heater/ blower
Before attempting to connect or operate this product, please read these
instructions completely. To be used with the 81-IN5409 Instruction Manual.
© 2009, Videolarm, Inc. All Rights Reserved
www.videolarm.com
CERTIFIED
81-IN5382
01-15-2009
Advertisement
Table of Contents
Related Manuals for Moog Videolarm SView PFD7CN-3
Summary of Contents for Moog Videolarm SView PFD7CN-3
- Page 1 © 2009, Videolarm, Inc. All Rights Reserved P F D 7 C N - 3 SView™ Outdoor Pressurized FusionDome Installation and Operation Instructions for the following models: PFD7CN-3 IP Network Ready 7” Pressurized Outdoor PTZ Camera System with 36x zoom compression, full D1.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS Read these instructions. Keep these instructions. Heed all warnings Follow all instructions. Do not use this apparatus near water. Clean only with damp cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions. Cable Runs- All cable runs must be within permissible distance. -
Page 3: Limited Warranty
1. NOTIFICATIONOF CLAIMS: WARRANTYSERVICE:If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Videolarm but all claims for warranty service must be made within the warranty period. -
Page 4: Electrical Specifications
Electrical Specifications Power 24VAC Class 2 Only 24 VAC 3.3 Amps Total Power: 80 Watts Accessories: Heater: 50 Watts/Blower: 2 Watts Camera Power: Tools Required: .100” Flat Head Screwdriver English Phillips Head Screwdriver 7/16” Wrench or Socket 24 VAC 3.3 amperios Energía Total: 80 vatios Accesorios: Calentador: 50 Watts/Blower: 2 vatio... - Page 5 SOLD SEPARATELY Securely mount bracket to wall. Pull wiring through bracket and position grommet as shown. • Con seguridad soporte del montaje a emparedar. Tire del cableado a través del soporte y del ojal de la posición según lo demostrado. •...
- Page 6 Loop the lanyard over the set screw to temporarily hold housing. • Coloque el acollador sobre el tornillo de presión para celebrar temporalmente la cubierta. • Faites une boucle la lanière au-dessus de la vis de réglage pour tenir temporairement le logement. •...
- Page 7 Wire as shown below for IP models:(PFD7CN-9; PFD7TN-9) RJ45 24VAC Camera/Heater/Blower Camera/Heater/Blower Alarm 1 Common RJ45 Make the appropriate male and female connec- tions. Indoor model does not include pre-run cables. • Haga las conexiones masculinas y femeninas apropiadas. El modelo de interior no incluye pre-funciona los cables.
-
Page 8: Captive Screw
To secure in place, tighten captive screw. • Para asegurar en lugar, apriete el tornillo prisionero. • Pour fixer en place, serrez la vis captive. • Um im Platz zu sichern, ziehen Sie Sicherheitsschraube fest. • Para fixar-se no lugar, aperte o parafuso prisioneiro. •... - Page 9 Air Chuck Tank Valve Place the air chuck on the tank valve and begin filling until pressure relief valve opens. • Coloque la tirada del aire en la válvula del tanque y comience a llenar hasta que la válvula de descarga de presión se abre. •...
-
Page 11: Product Registration/Warranty
Product Registration/Warranty Thank you for choosing Videolarm. We value your patronage and are solely committed to providing you with only the highest quality products available with unmatched customer service levels that are second-to-none in the security industry. Should a problem arise, rest assure that Videolarm stands behind its products...
