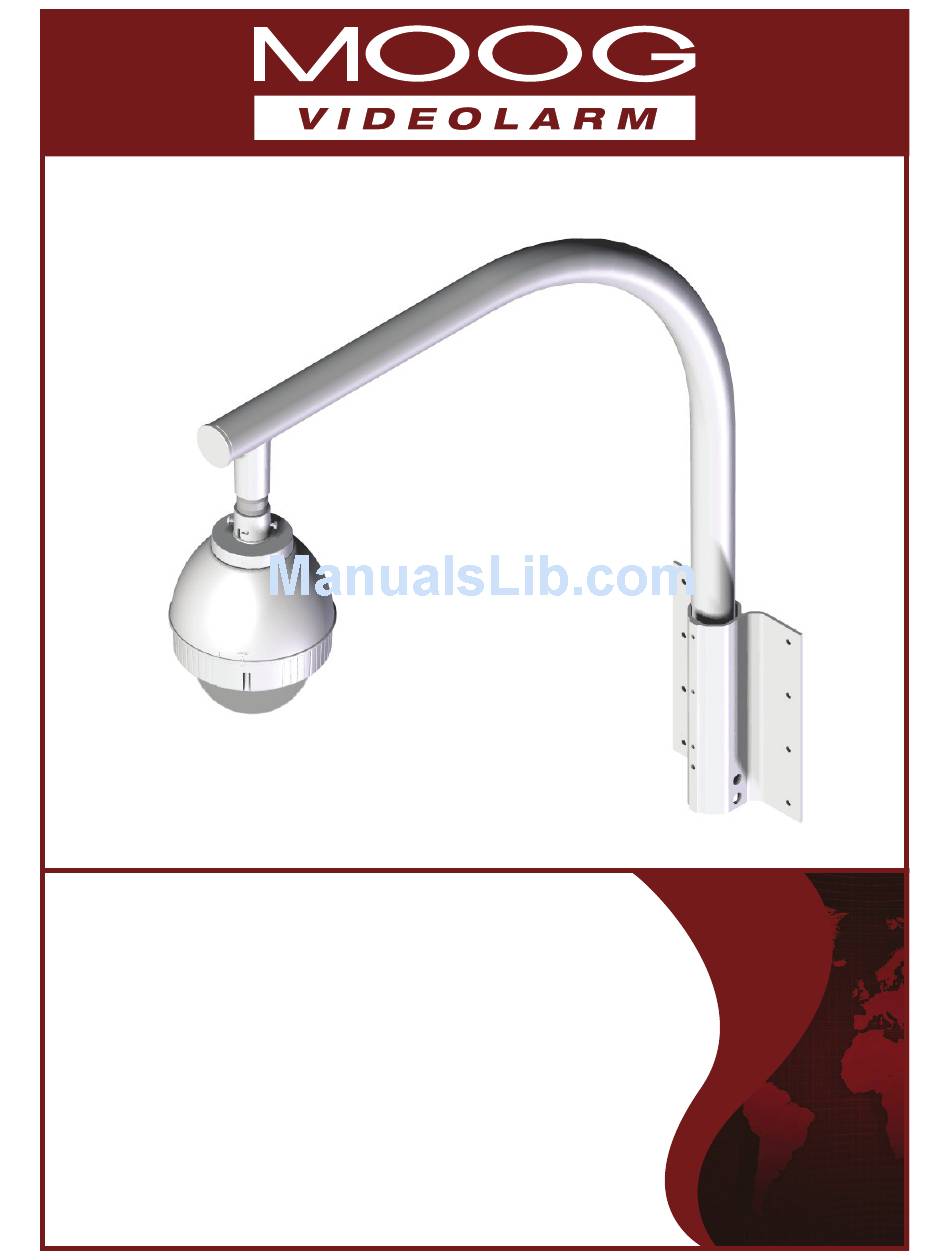

© 2011, Moog Videolarm, Inc. All Rights Reserved
P R M 5 0 G / R M A 5 0 G
Outdoor Dome Housing Brackets and Parapet Mount
Installation and Operation Instructions for the following model:

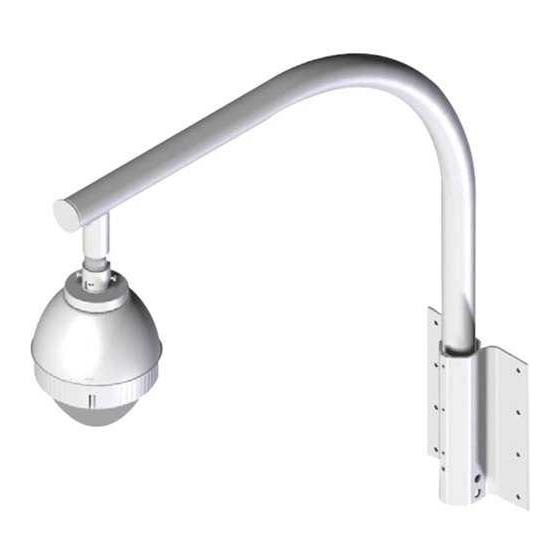

PRM50G
Heavy-duty aluminium parapet mount bracket.
Contents of box:
(1) PRM50G Gooseneck bracket
(1) Parapet Mounting Plate
(1) 2½" End Cap Plug
(2) Hole Plugs
(3) 3/8 x ¾ " HH Bolts
(1) 1½" NPT Male Nipple
Before attempting to connect or operate this product, please read these instructions completely.
www.videolarm.com
81-IN5428
12-23-2011
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moog Videolarm PRM50G
Summary of Contents for Moog Videolarm PRM50G
- Page 1 © 2011, Moog Videolarm, Inc. All Rights Reserved P R M 5 0 G / R M A 5 0 G Outdoor Dome Housing Brackets and Parapet Mount www.videolarm.com Installation and Operation Instructions for the following model: PRM50G Heavy-duty aluminium parapet mount bracket.
- Page 2 IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK).
- Page 3 If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period.
- Page 4 Attach PRM50G to metal framing material. • Ate con seguridad los sujetadores a la estructura portante. • Adjuntar PRM50G a la elaboración de materiales. • Joindre PRM50G pour les matériaux métalliques. • Attachez solidement les attaches à la structure porteuse.
- Page 5 Wall Mounting Installation Ground Mounting Installation Slide goosneck into parapet adaptor. Secure If using optional Roof Mount RMA50G secure with hex head bolts supplied. Parapet adapter with hardware provided. • Diapositiva goosneck en parapeto adaptador. Asegure con tornillos de cabeza hexagonal suministrada. •...
- Page 6 Nipple Two holes are provided for conduit / wiring. Feed Secure nipple in place, and run wiring through wiring through bracket (If not used, seal with supplied bracket. hole plugs). • Dos agujeros se proporcionan para el conducto/el cableado. Cableado de la •...
-
Page 7: Replacement Parts List
Replacement Parts List PRM50G RMA50G - Parts List Roof Mount (NO replacement parts available for this part) Description Qty. Main Bracket Bracket Parapet Base Hardware, and Conduit Plugs Endcap 1½” NPT M/M Nipple... - Page 8 Should a problem arise, rest assure that Moog Videolarm stands behind its products by offering impressive warranty plans: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on camera systems (SView, QView, Warriors), and InfraRed Illuminators.
