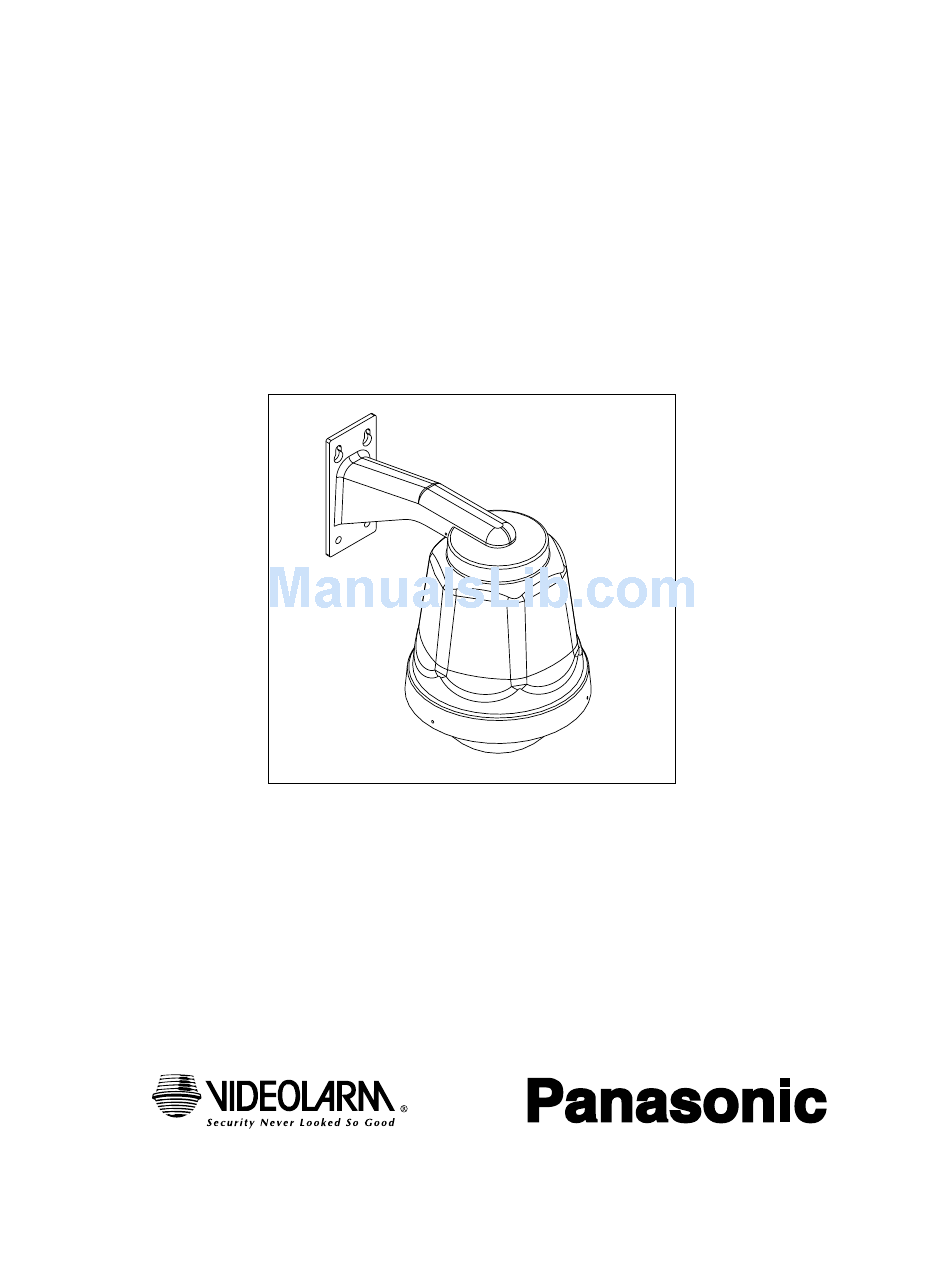

- Page 1 Installation Instructions Outdoor Domed Housings POD7C/POD7CW Manufactured By: ® Before attempting to connect or operate this product, please read these instructions completely.
-
Page 2: Precautions On Installation
• This product has been designed and engineered for the combination camera WV - CS604 and WV-CS404 for ease of installation and service. • This product is a discreet outdoor housing designed for pendant (POD7C) or wall mount (POD7CW) applications. - Page 3 Check all contents before beginning installation. A. Housing Assembly (POD7C) Housing Assembly (POD7CW) 1. 2 1/4 Coupling w/ 2 set screws 1. Wall Mount Bracket 2. Coupling Gasket 2. Housing Gasket 3. Housing Mounting Bracket 3. White Upper Top 4. Housing Gasket 5.
- Page 4 2 1/4" Coupling* Mounting Bracket* Top Gasket Housing top Housing Assembly Upper Housing Bracket Bracket Assembly Lower Housing Bracket Camera Dome Assembly 7" Clear Dome * Or Wall Mount - 4 -...
-
Page 5: Installation
Then attach the safety screw to camera mount bracket, using the standard screw (s). Set Screw Compatible brackets for POD7C/POD7CW: • Parapet Mount Bracket - PSRCW-2000 • Corner Mount Bracket - PCA-2 Safety Screw •... -
Page 6: How To Assemble The Connector
Assemble the power cable with the provided connector (included in housing packet). Wire Front view of the female connector in housing cable. Contact Pin 1 is in the lower right hand corner. CAUTIONS • Shrinking the cable-entry seal is a onetime procedure. - Page 7 with extreme care. Connect the power cable and video cable lines. • If debris and dust accumulates on the dome's inner surface, remove with clean air pressure. Compressed air cans are available for this use at most photography supply stores. •...
-
Page 8: Standard Configuration
SPECIFICATIONS Example 2: Connect the coaxial cable between the MECHANICAL/ELECTRICAL video output connector on the WV-CS404 and the Upper Housing - .25" high impact, UV-stable white plastic camera input connector on the WV-CU254. Housing Bracket - 14- and 16-gauge steel Lower Dome - 7"... - Page 9 Coupling for 1 1/2" standard pipe Gasket Slot safety screw 3.432 (located on both sides) Set Screws 14.169 1.405 .089 7.000 9.169 12.861 2.084 .114 7.000 Rev. # 3029/0200 - 9 -...
